DDR4 RDIMM VLP

DDR4

Registered Memory with ECC

Features

Register for enhancing clock, command, and control signals
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: 0°C ~ 95°C (Tc)
RoHS Compliance, CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

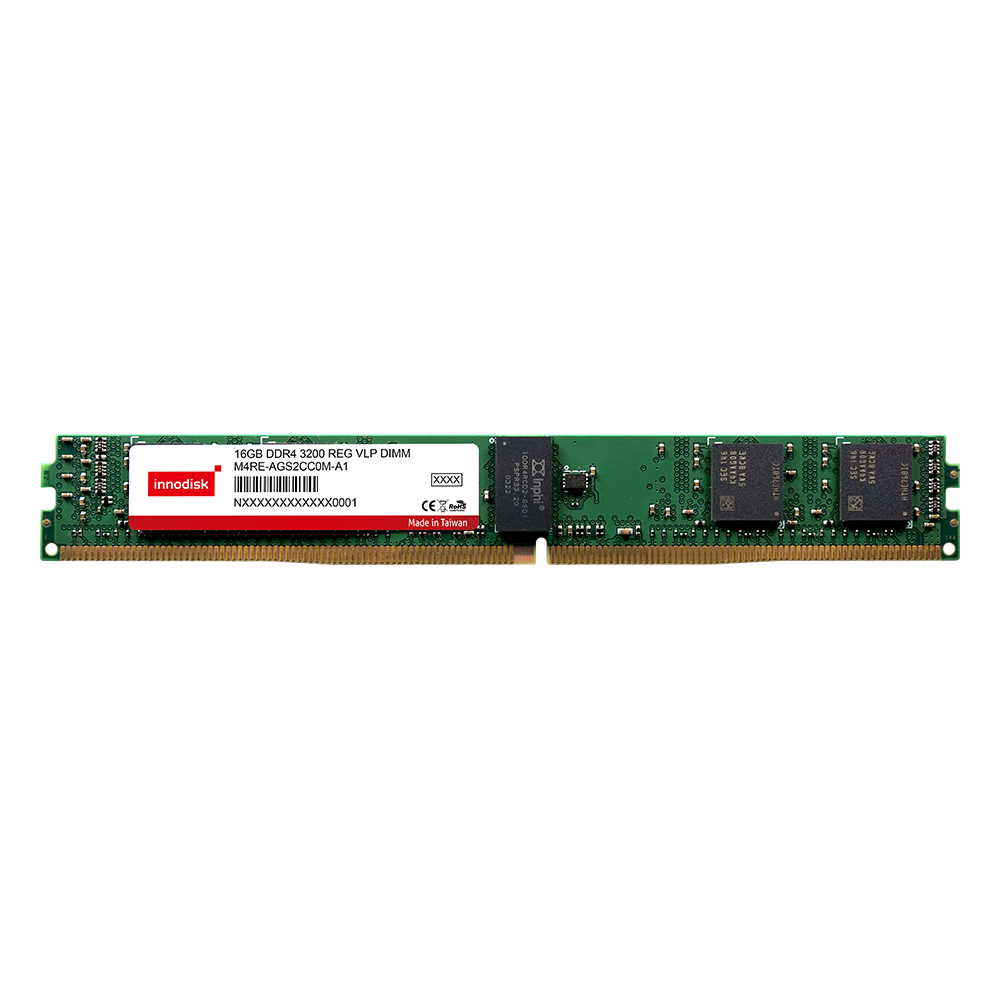

DDR4 RDIMM VLP is a compact and a very low-profile module that offers the industry's fastest memory speed with 3200MT/s, and it is fully compatible with the Intel® Purely platform and 1U devices. The modules come equipped with 30?” Gold Fingers and include single bit error correction and a register to enhance clock, command, and control signals. All are available in 4GB, 8GB, 16GB and 32GB capacities. 2133MT/s, 2400MT/s, 2666MT/s, and 2933MT/s modules are also available.

VLP DIMM modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 RDIMM VLP
DDR Generation	DDR4 Memory
DIMM Type	RDIMM VLP
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	Registered Memory with ECC
Pin Number	288pin
Bus Width	x72
Voltage	1.2V
PCB Height	0.738 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4R0-4GSSCCEM	512M x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 4GB RDIMM VLP
M4R0-8GSSDCEM	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB RDIMM VLP
M4R0-8GS1CCEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB RDIMM VLP
M4R0-AGS1DCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB RDIMM VLP
M4R0-AGS2CCEM	2G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB RDIMM VLP
M4R0-BGS2DCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB RDIMM VLP
M4R0-BGM2DCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB RDIMM VLP
