DDR4 RDIMM

DDR4

Registered Memory with ECC

Features

Register that enhances clock, command, and control signals
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: 0°C ~ 95°C (Tc)
RoHS Compliance, CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 RDIMM offers the industry's fastest memory speed with 3200MT/s, and it is fully compatible with the Intel® Purely platform. The modules come equipped with 30?” Gold Fingers and include single bit error correction and a register to enhance clock, command, and control signals. All are available from 4GB to 64GB capacities. 2133MT/s, 2400MT/s, 2666MT/s, and 2933MT/s modules are also available.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 RDIMM
DDR Generation	DDR4 Memory
DIMM Type	RDIMM
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB, 64GB
Function	Registered Memory with ECC
Pin Number	288pin
Bus Width	x72
Voltage	1.2V
PCB Height	1.23 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y
Notice	The 32GB module is not equipped with anti-sulfuration features.

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4R0-4GSSACEM	512M x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 4GB RDIMM
M4R0-8GSSBCEM	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB RDIMM
M4R0-8GS1ACEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB RDIMM
M4R0-8GM1ACEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB RDIMM
M4R0-AGS1BCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB RDIMM
M4R0-AGM1BCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB RDIMM
M4R0-AGS2ACEM	2G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB RDIMM

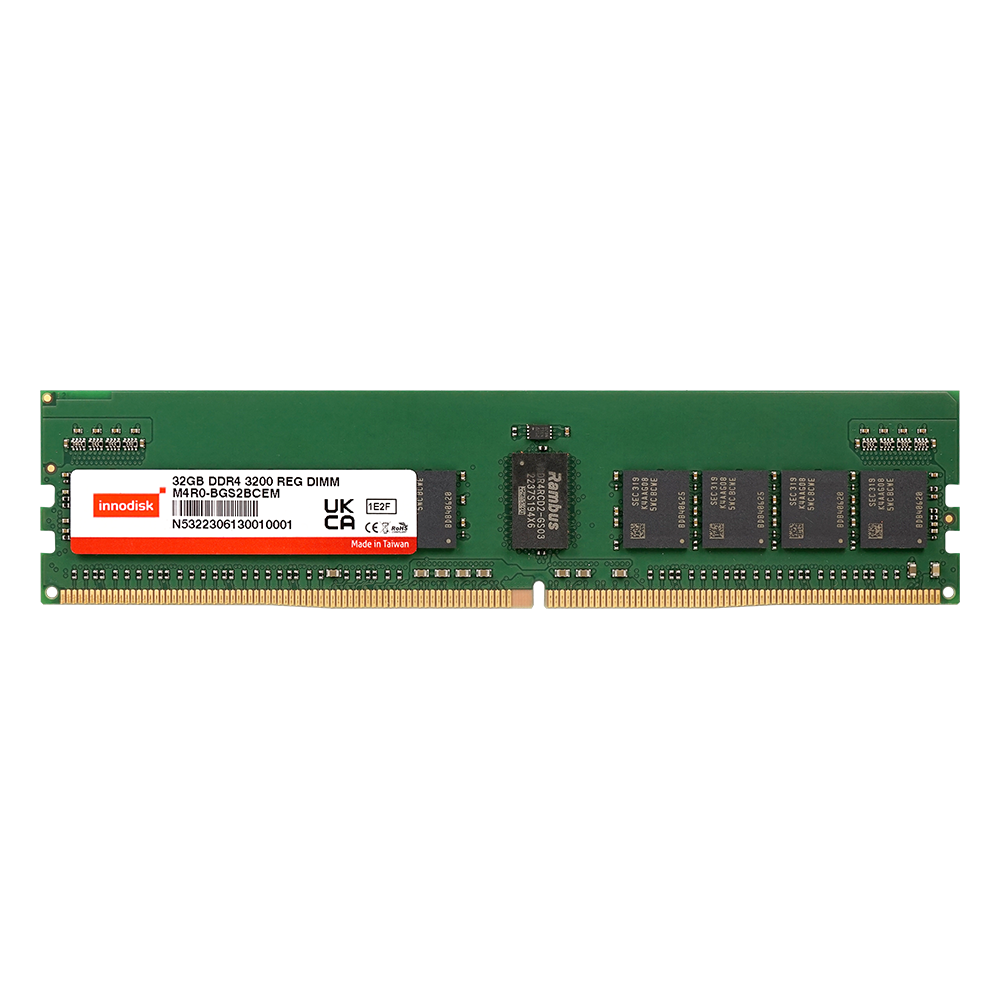

M4R0-BGS2BCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB RDIMM
M4R0-BGS3GCEM	2G x 4	2R x 4	0°C ~ 95°C (Tc)	DDR4 3200 32GB RDIMM
M4R0-CGS7GCEM	4G x 4	2R x 4	0°C ~ 95°C (Tc)	DDR4 3200 64GB RDIMM

For more information, please contact our support.
