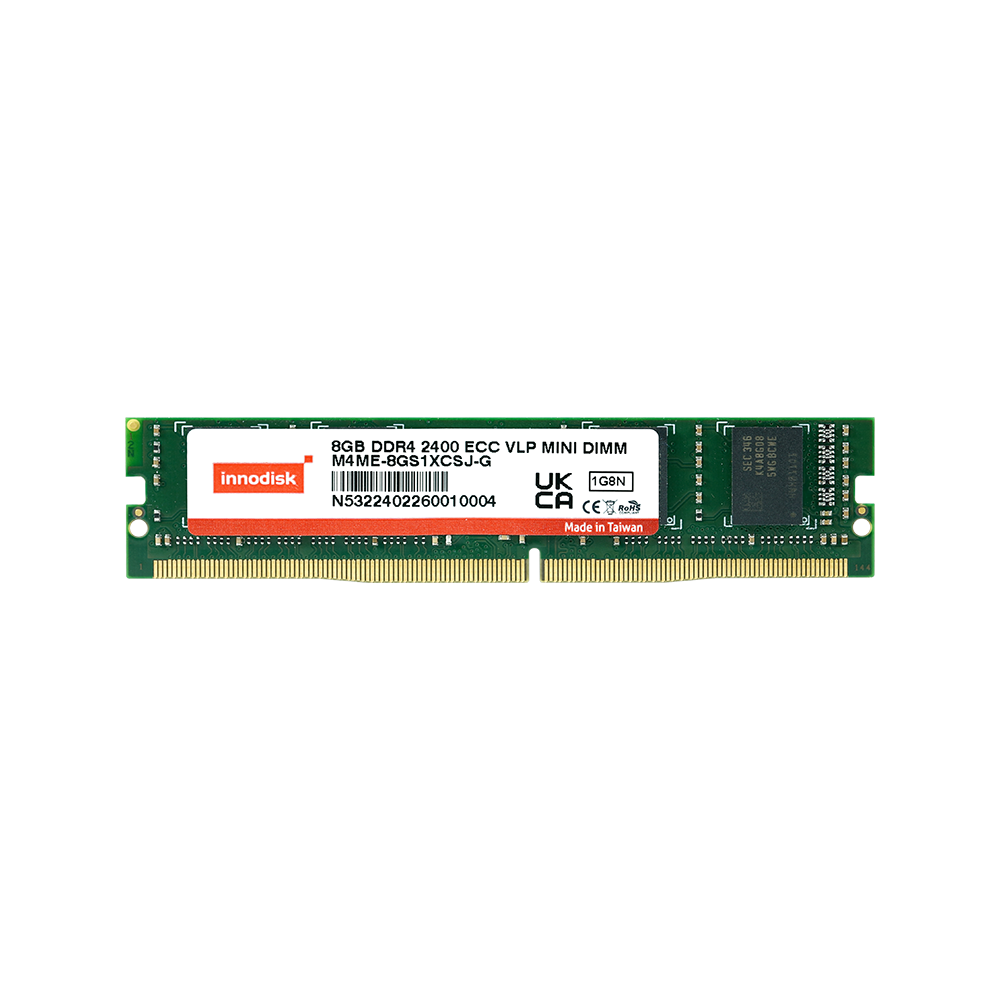

DDR4 Mini ECC VLP

DDR4

ECC Unbuffered Memory

Features

Suitable for small-size routers, switches, and bridges
Very low profile specialized for use in 1U system
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
Operating Environment: 0°C ~ 95°C (Tc)
RoHS Compliance, CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 Mini ECC VLP is a compact and a very low-profile module that enables design in the smallest routers, switches, and bridges. The modules come equipped with 30?” Gold Fingers and include single bit error correction.

VLP DIMM modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 Mini ECC VLP
DDR Generation	DDR4 Memory
DIMM Type	Mini ECC VLP
Speed	2400 MT/s, 2666 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	ECC Unbuffered Memory
Pin Number	288pin
Bus Width	x72
Voltage	1.2V
PCB Height	0.738 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4M0-4GSSXCSJ	512M x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 2400 4GB Mini ECC VLP
M4M0-8GSSYCIK	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2666 8GB Mini ECC VLP
M4M0-8GSSYCSJ	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2400 8GB Mini ECC VLP
M4M0-8GS1XCSJ	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 2400 8GB Mini ECC VLP
M4M0-AGS1YCIK	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2666 16GB Mini ECC VLP
M4M0-AGS1YCSJ	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2400 16GB Mini ECC VLP
M4M0-BGM2YCIK	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2666 32GB Mini ECC VLP

For more information, please contact our support.
