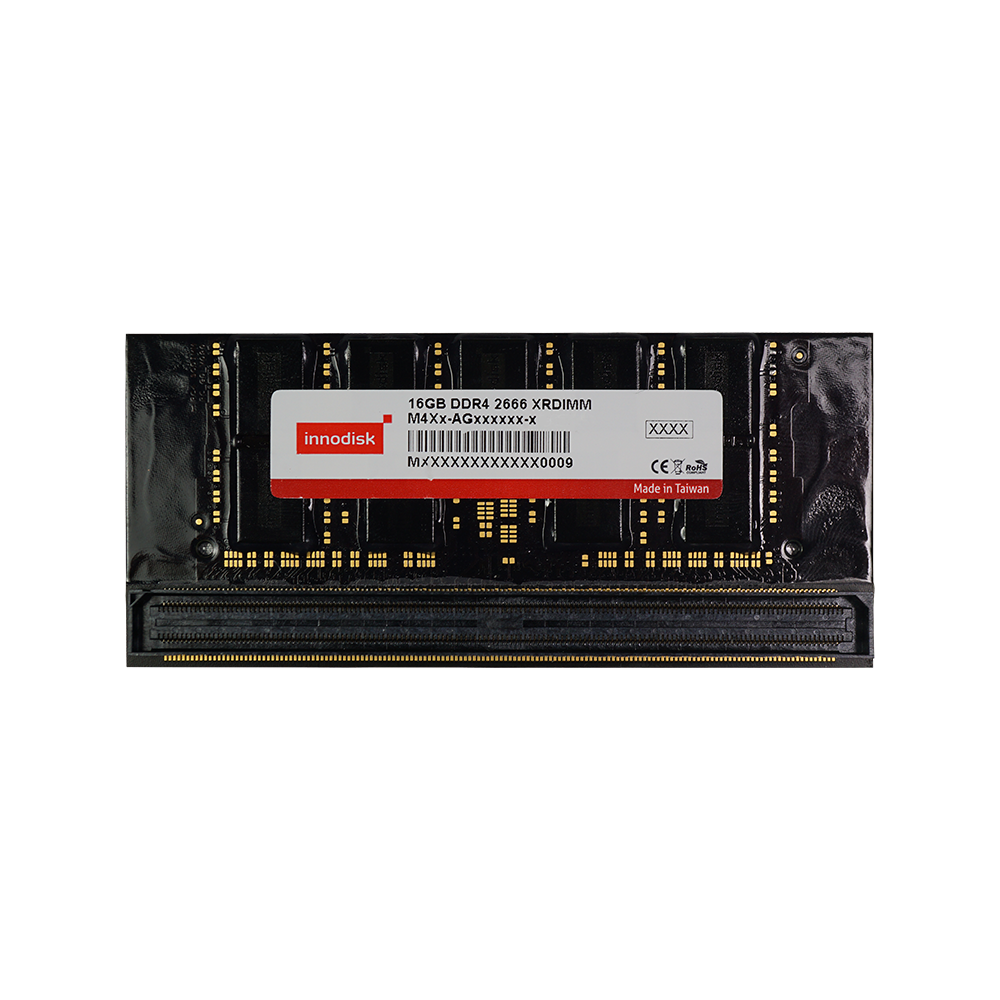

DDR4 ECC XR-DIMM

DDR4

ECC Unbuffered Memory

Features

Customized connector prevents DIMM from coming loose under challenging conditions
Equipped with 2 mounting holes to ensure a firm connection
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
Designed for Aerospace & Mission Critical applications and other harsh environment usage
RoHS Compliance, CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 ECC XR-DIMM is Innodisk's most robust memory module - perfect for mission-critical applications and harsh environments. Furthermore, both ECC and Wide Temperature ( -40ºC ~ 95°C (Tc)) features are available to further optimize the module if needed. With its 300-pin socket connector, Innodisk’s XR-DIMM exceeds the pin number standard established by the SFF Special Interest Group (SFF-SIG), ensuring a firm connection between the CPU and DRAM module. The series includes 8GB and 16GB capacities and transfer rates of 2400MT/s and 2666MT/s.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 ECC XR-DIMM
DDR Generation	DDR4 Memory
DIMM Type	ECC XR-DIMM
Speed	2400 MT/s, 2666 MT/s
Density	8GB, 16GB
Function	ECC Unbuffered Memory
Pin Number	300pin
Bus Width	x72
Voltage	1.2V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 95°C (Tc)

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4XE-8GSSQCSJ-G	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2400 8GB ECC XR-DIMM
M4XE-AGS1QCSJ-G	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2400 16GB ECC XR-DIMM
M4XE-8GSSQCIK-G	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2666 8GB ECC XR-DIMM
M4XE-AGS1QCIK-G	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 2666 16GB ECC XR-DIMM

For more information, please contact our support.
