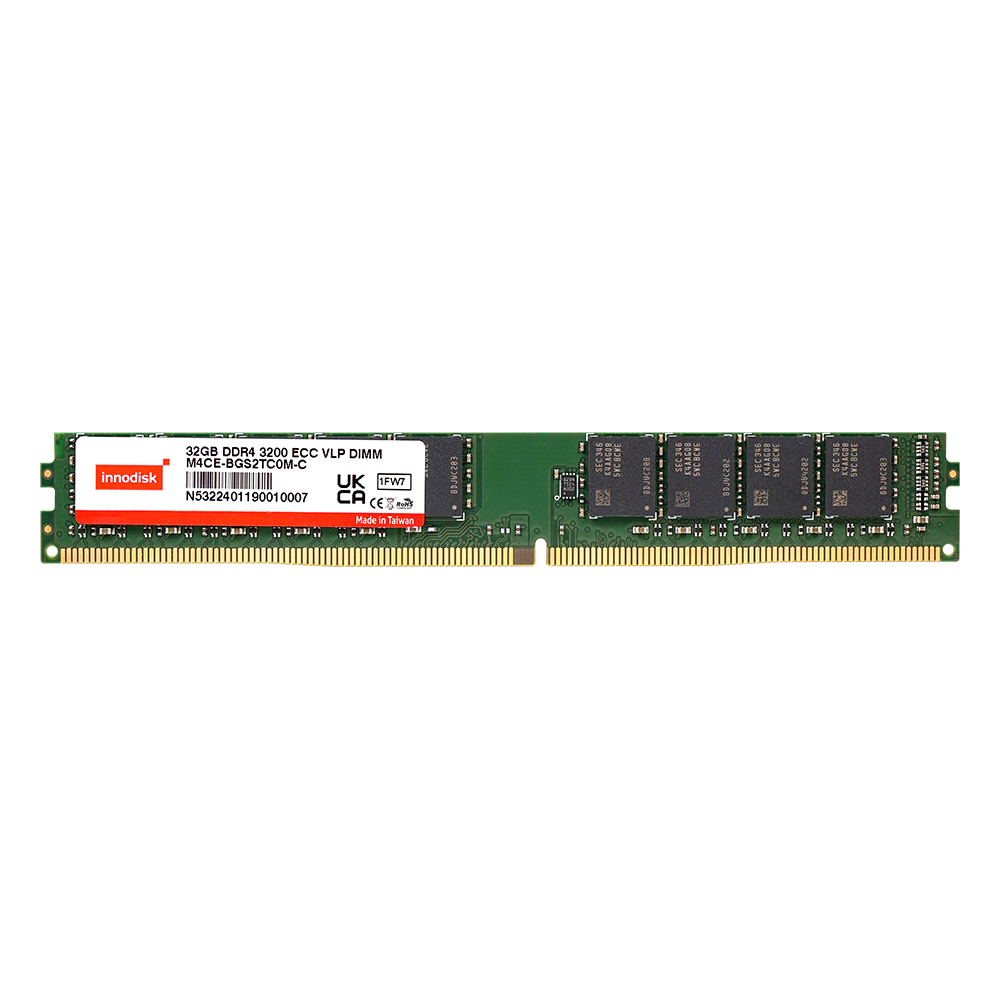

DDR4 ECC UDIMM VLP

DDR4

ECC Unbuffered Memory

Features

Very low profile specialized for use in 1U system
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: 0°C ~ 95°C (Tc)
30?’’ Gold Finger, RoHS Compliance, and CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 ECC UDIMM VLP offers a low profile design and the industry's fastest memory speed with 3200MT/s. The modules come equipped with 30?” Gold Fingers, include single bit error correction and is designed for networking and server use. The modules are available in 4GB, 8GB, 16GB, and 32GB capacities. 2133MT/s, 2400MT/s, 2666MT/s and 2933MT/s modules are also available.

VLP modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 ECC UDIMM VLP
DDR Generation	DDR4 Memory
DIMM Type	ECC UDIMM VLP
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	ECC Unbuffered Memory
Pin Number	288pin
Bus Width	x72
Voltage	1.2V
PCB Height	0.738 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4C0-4GSSSCEM	512M x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 4GB ECC UDIMM VLP
M4C0-8GSSTCEM	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC UDIMM VLP
M4C0-8GS1SCEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC UDIMM VLP
M4C0-AGS1TCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC UDIMM VLP
M4C0-BGM2TCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB ECC UDIMM VLP
M4C0-BGS2TCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB ECC UDIMM VLP

For more information, please contact our support.
