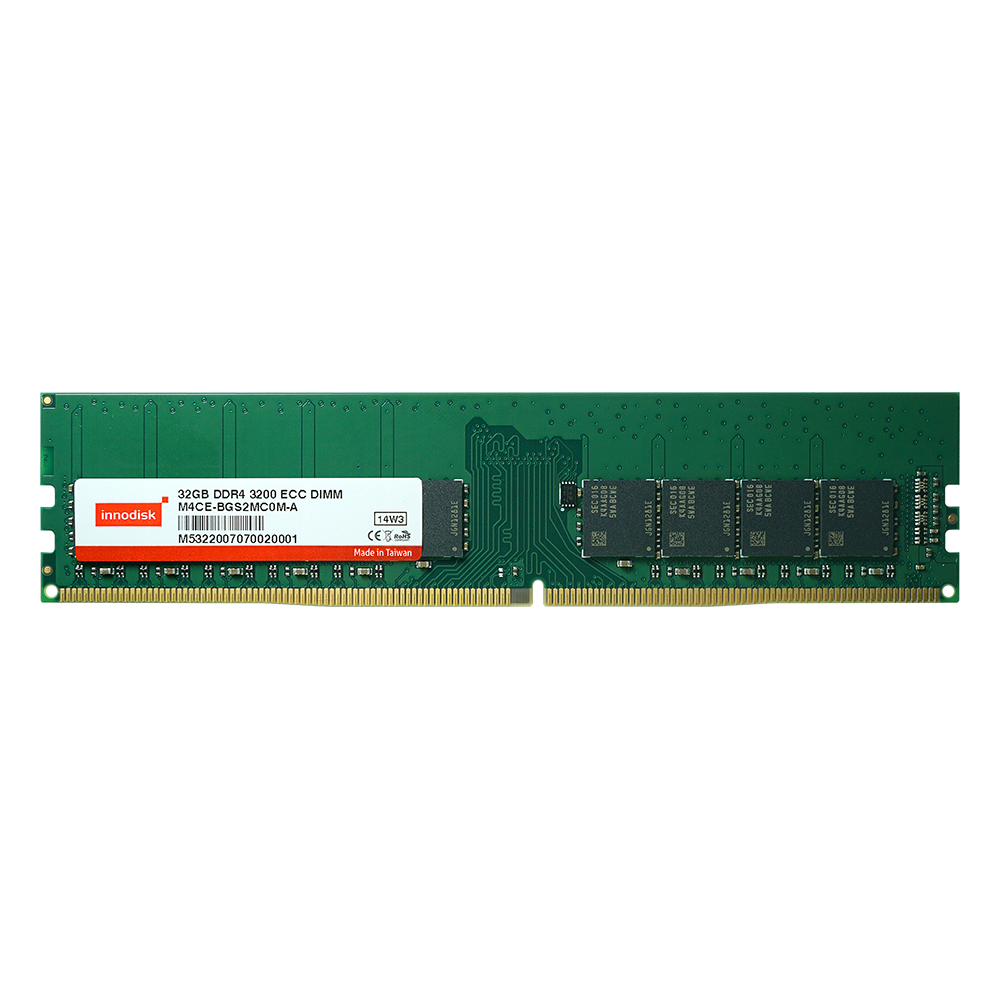

DDR4 ECC UDIMM

DDR4

ECC Unbuffered Memory

Features

ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: 0°C ~ 95°C (Tc)
30?’’ Gold Finger
RoHS Compliance and CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 ECC UDIMM is a memory module for networking and server applications that enables design in the smallest routers, switches, and bridges. The modules come equipped with 30?” Gold Fingers and include single bit error correction. All are available in. 2133MT/s, 2400MT/s, 2666MT/s, 2933MT/s and 3200MT/s modules are available. 4GB, 8GB, 16GB and 32GB capacities

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 ECC UDIMM
DDR Generation	DDR4 Memory
DIMM Type	ECC UDIMM
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB, 16GB, 32GB
Function	ECC Unbuffered Memory
Pin Number	288pin
Bus Width	x72
Voltage	1.2V
PCB Height	1.23 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4C0-4GSSLCEM	512M x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 4GB ECC UDIMM
M4C0-8GSSMCEM	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC UDIMM
M4C0-8GS1LCEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC UDIMM
M4C0-8GM1LCEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC UDIMM
M4C0-AGS1MCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC UDIMM
M4C0-AGM1MCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC UDIMM
M4C0-AGS2LCEM	2G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC UDIMM
M4C0-AGM2LCEM	2G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC UDIMM
M4C0-BGS2MCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB ECC UDIMM
M4C0-BGM2MCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB ECC UDIMM

For more information, please contact our support.
