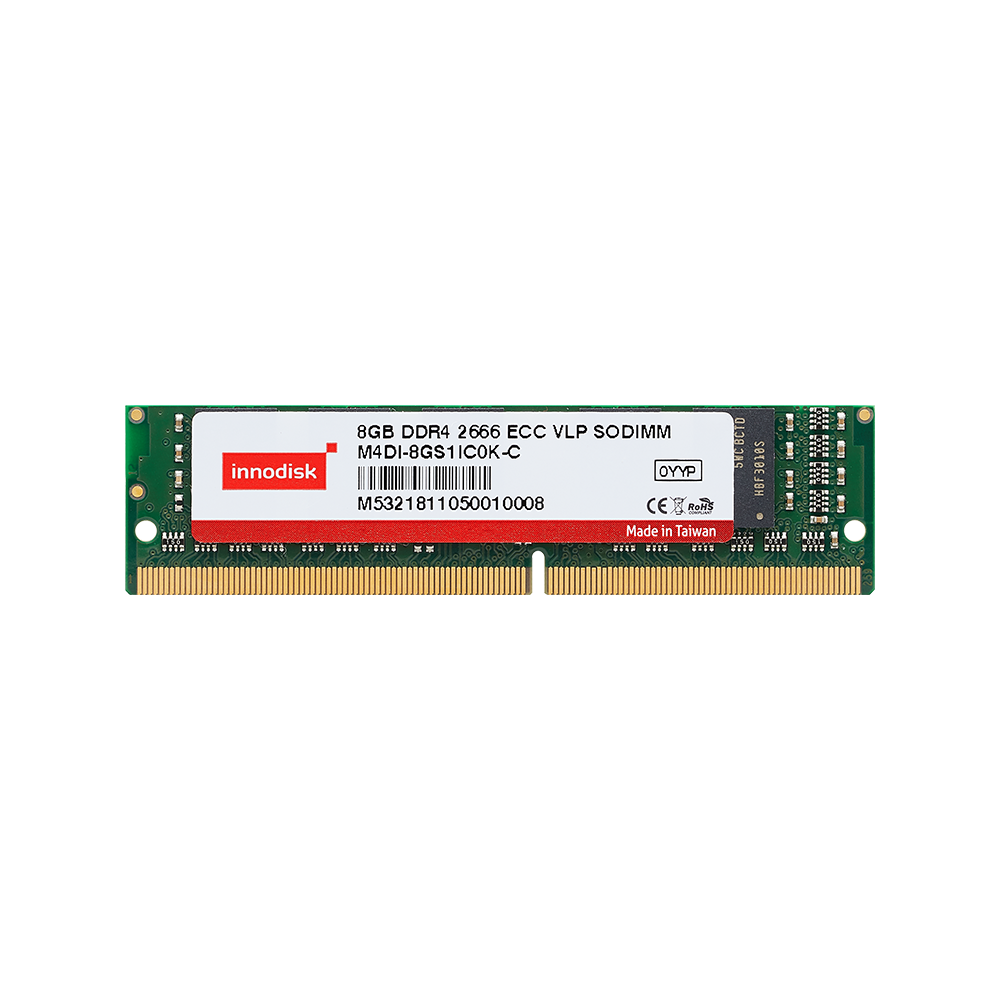

DDR4 ECC SODIMM VLP

DDR4

ECC Unbuffered Memory

Features

Very low profile specialized for use in 1U system
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC standard 1.2V (1.26V ~ 1.14V)
Operating Environment: 0°C ~ 95°C (Tc)
30?” Gold Finger, RoHS Compliance and CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 ECC SODIMM VLP is a compact and a very low-profile module that offers the industry's fastest memory speed with 3200MT/s, and it is fully compatible with the Intel® Purely platform and 1U devices. The modules come equipped with 30?” Gold Fingers, include single bit error correction and is designed for networking and server use. All are available in 4GB and 8GB capacities. 2133MT/s, 2400MT/s 2666MT/s and 2933MT/s modules are also available.

VLP DIMM modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 ECC SODIMM VLP
DDR Generation	DDR4 Memory
DIMM Type	ECC SODIMM VLP
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	4GB, 8GB
Function	ECC Unbuffered Memory
Pin Number	260pin
Bus Width	x72
Voltage	1.2V
PCB Height	0.7 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4D0-4GSSICEM	512M x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 4GB ECC SODIMM VLP
M4D0-8GS1ICEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC SODIMM VLP

For more information, please contact our support.
