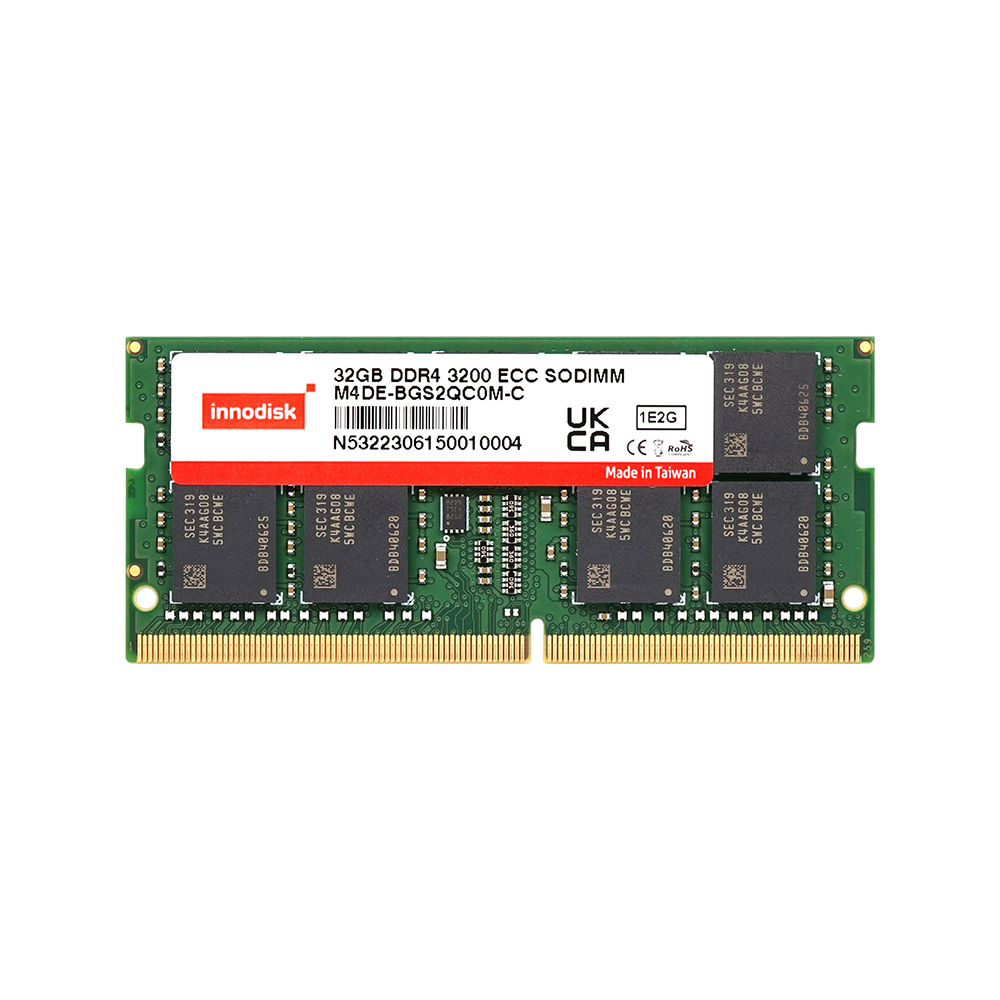

DDR4 ECC SODIMM

DDR4

ECC Unbuffered Memory

Features

Small outline dual in-line memory module
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
Anti-sulfuration protection against harsh environments
JEDEC Standard 1.2V (1.26V ~ 1.14V)
Operating Environment: 0°C ~ 95°C (Tc)
30?” Gold Finger and RoHS Compliance, CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR4 ECC SODIMM offers the industry's fastest unbuffered memory speed with 3200MT/s, and it is fully compatible with the Intel® Purely platform. The modules come equipped with 30?” Gold Fingers, include single bit error correction and is designed for networking and server use. All are available in 2GB, 4GB, 8GB, 16GB, and 32GB capacities. 2133MT/s, 2400MT/s, 2666MT/s and 2933MT/s modules are also available.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR4 ECC SODIMM
DDR Generation	DDR4 Memory
DIMM Type	ECC SODIMM
Speed	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Density	2GB, 4GB, 8GB, 16GB, 32GB
Function	ECC Unbuffered Memory
Pin Number	260pin
Bus Width	x72
Voltage	1.2V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 95°C (Tc)
30?” Gold Finger	Y
Anti-Sulfuration	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M4D0-2GSVPCEM	256M x 16	1R x 16	0°C ~ 95°C (Tc)	DDR4 3200 2GB ECC SODIMM
M4D0-4GSXPCEM	512M x 16	1R x 16	0°C ~ 95°C (Tc)	DDR4 3200 4GB ECC SODIMM
M4D0-4GSSPCEM	512M x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 4GB ECC SODIMM
M4D0-8GSYPCEM	1G x 16	1R x 16	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC SODIMM
M4D0-8GSSQCEM	512M x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC SODIMM
M4D0-8GS1PCEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC SODIMM
M4D0-8GM1PCEM	1G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 8GB ECC SODIMM
M4D0-AGS1QCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC SODIMM
M4D0-AGM1QCEM	1G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC SODIMM
M4D0-AGS2PCEM	2G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC SODIMM
M4D0-AGM2PCEM	2G x 8	1R x 8	0°C ~ 95°C (Tc)	DDR4 3200 16GB ECC SODIMM
M4D0-BGS2QCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB ECC SODIMM
M4D0-BGM2QCEM	2G x 8	2R x 8	0°C ~ 95°C (Tc)	DDR4 3200 32GB ECC SODIMM

For more information, please contact our support.
