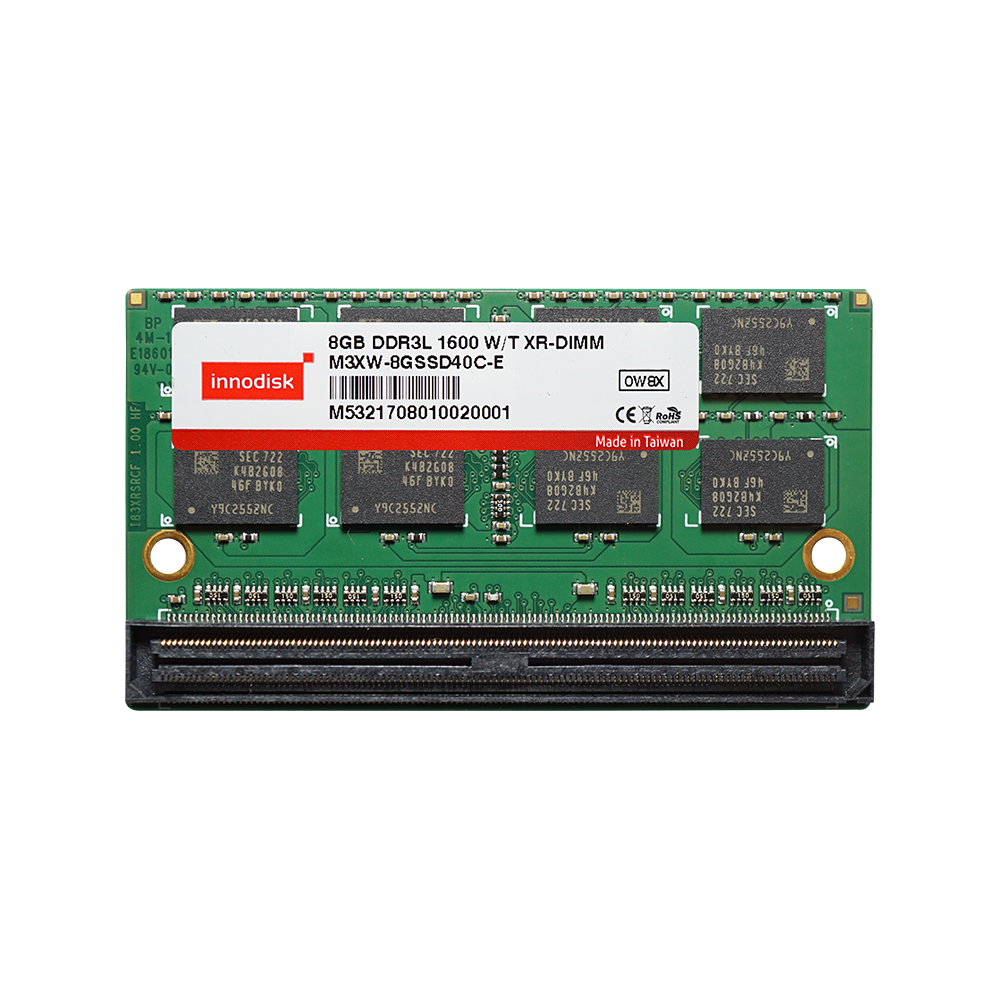

DDR3 XR-DIMM

DDR3

Non-ECC Unbuffered Memory

Features

Customized connector prevents DIMM from coming loose under challenging conditions
Equipped with 2 mounting holes to ensure a firm connection
Designed for aerospace & mission critical applications and other harsh environment usage
RoHS Compliance, CE / FCC Certification
For the XR DIMM, all features can be customized which also requires establishing a new customized project line. We suggest first assessing if the product specifications are in accordance with your needs.

BORN FOR SUPERIOR PERFORMANCE

DDR3 XR-DIMM is Innodisk’s most robust memory module, designed for mission-critical applications and harsh environments. Featuring a 300-pin socket connector, Innodisk’s XR-DIMM exceeds the pin count standard established by the SFF Special Interest Group (SFF-SIG), guaranteeing a secure and stable connection between the CPU and DRAM module. The series is available in 4GB and 8GB capacities, with transfer rates of 1600MT/s and 1866MT/s.

SPECIFICATIONS

Model Name	DDR3 XR-DIMM
DDR Generation	DDR3 Memory
DIMM Type	XR-DIMM
Speed	1600 MT/s, 1866 MT/s
Density	4GB, 8GB
Function	Non-ECC Unbuffered Memory
Pin Number	300pin
Bus Width	x64
Voltage	1.35V, 1.5V
PCB Height	1.49 Inches
Operating Temperature	0°C ~ 85°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3XT-4GMJDL0E-K	256M x 8	2R x 8	-40°C ~ 85°C	DDR3L 1866 4GB XR-DIMM
M3XT-8GMSDL0E-P	512M x 8	2R x 8	-40°C ~ 85°C	DDR3L 1866 8GB XR-DIMM

For more information, please contact our support.
