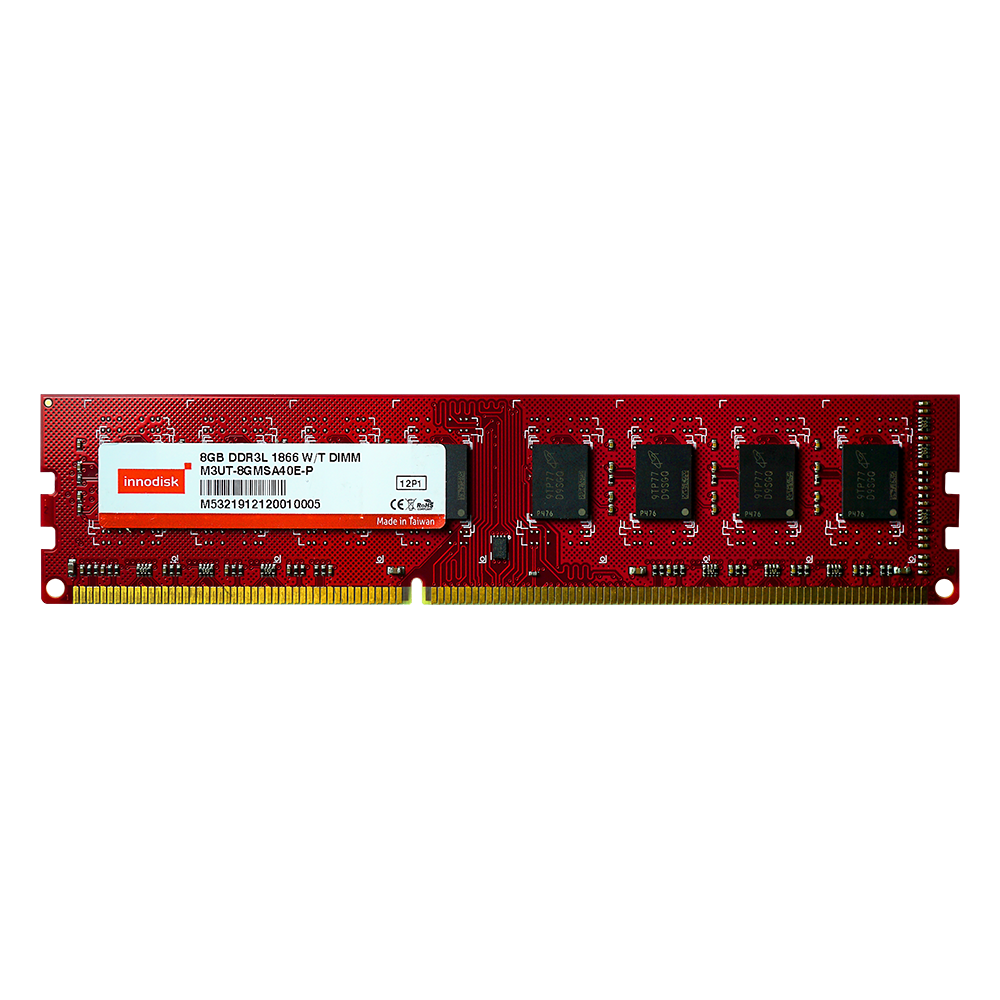

DDR3 Wide Temp. UDIMM

DDR3

Non-ECC Unbuffered Memory

Features

Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: -40°C ~ 85°C
30?” Gold Finger
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

The DDR3 Wide Temperature UDIMM is an industrial memory module that provides lasting performance and is designed for the in-vehicle automation and embedded markets. The modules comply with all relevant JEDEC standards, can operate in temperatures from -40ºC to 85ºC, and are available in 2GB, 4GB, and 8GB capacities. Data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s are available.

SPECIFICATIONS

Model Name	DDR3 Wide Temperature UDIMM
DDR Generation	DDR3 Memory
DIMM Type	UDIMM
Speed	1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s
Density	2GB, 4GB, 8GB
Function	Non-ECC Unbuffered Memory
Pin Number	240pin
Bus Width	x64
Voltage	1.35V, 1.5V
PCB Height	1.18 Inches
Operating Temperature	-40°C ~ 85°C
30?” Gold Finger	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3U0-2GMJB5QE	256M x8	1R x 8	-40°C ~ 85°C	DDR3 1866 2GB Wide Temperature UDIMM
M3U0-4GMJA5QE	256M x8	2R x 8	-40°C ~ 85°C	DDR3 1866 4GB Wide Temperature UDIMM
M3U0-4GMSB5QE	512M x8	1R x 8	-40°C ~ 85°C	DDR3 1866 4GB Wide Temperature UDIMM
M3U0-8GMSA5QE	512M x8	2R x 8	-40°C ~ 85°C	DDR3 1866 8GB Wide Temperature UDIMM
M3U0-2GMJB4QE	256M x8	1R x 8	-40°C ~ 85°C	DDR3L 1866 2GB Wide Temperature UDIMM
M3U0-4GMSB4QE	512M x8	1R x 8	-40°C ~ 85°C	DDR3L 1600 4GB Wide Temperature UDIMM
M3U0-4GMJA4QE	256M x8	2R x 8	-40°C ~ 85°C	DDR3L 1866 4GB Wide Temperature UDIMM
M3U0-8GMSA4QE	512M x 8	2R x 8	-40°C ~ 85°C	DDR3L 1866 8GB Wide Temperature UDIMM

For more information, please contact our support.
