 | DDR3Non-ECC Unbuffered Memory Features
|

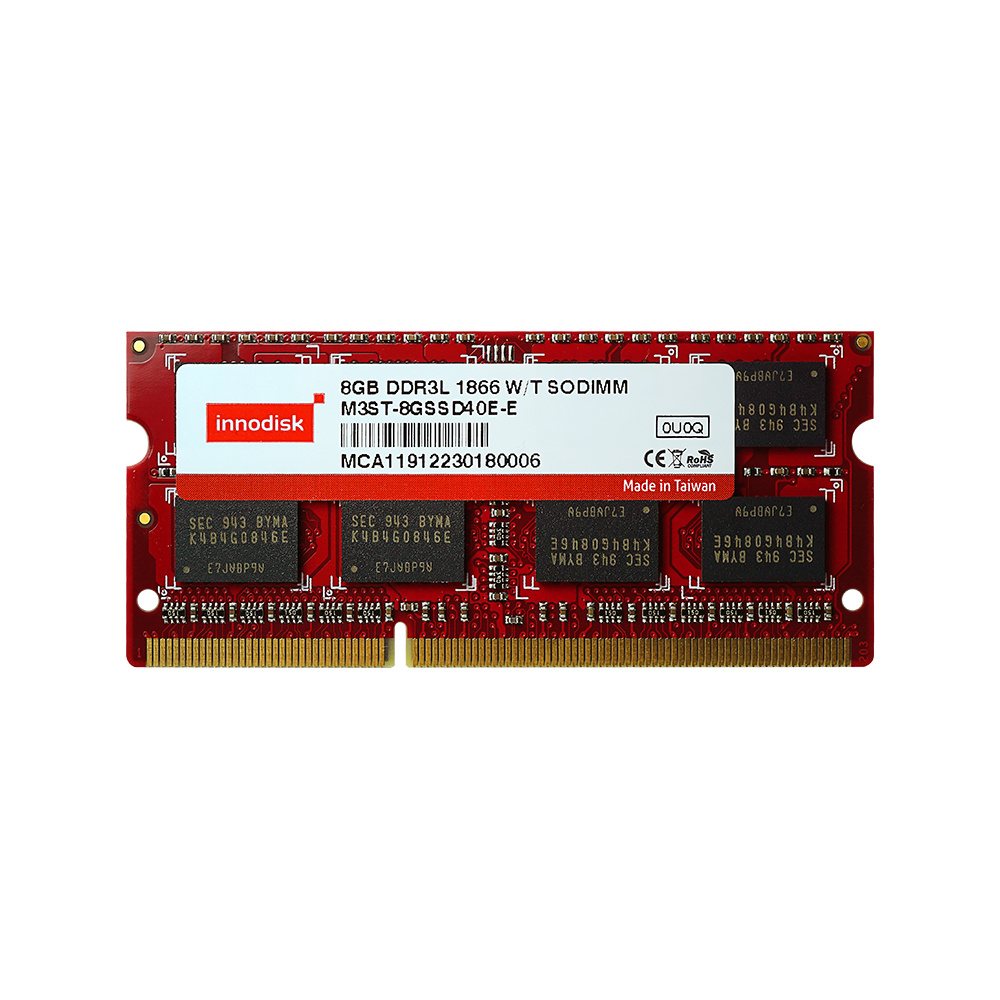

DDR3 Wide Temperature SODIMM is an industrial memory module that provides lasting performance and is designed for the in-vehicle automation and embedded markets. The modules comply with all relevant JEDEC standards, can operate in temperatures from -40ºC to 85ºC, and are available in 2GB, 4GB, and 8GB capacities. Data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s are available.
Model Name | DDR3 Wide Temperature SODIMM |
DDR Generation | DDR3 Memory |
DIMM Type | SODIMM |
Speed | 1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s |
Density | 2GB, 4GB, 8GB |
Function | Non-ECC Unbuffered Memory |
Pin Number | 204pin |
Bus Width | x64 |
Voltage | 1.35V, 1.5V |
PCB Height | 1.18 Inches |
Operating Temperature | -40°C ~ 85°C |
P/N | IC Config. | Rank | Temp. | Description |
M3S0-2GMJC5QE | 256M x 8 | 1R x 8 | -40°C ~ 85°C | DDR3 1866 2GB Wide Temperature SODIMM |
M3S0-2GMVF5QE | 256M x 16 | 1R x 16 | -40°C ~ 85°C | DDR3 1866 2GB Wide Temperature SODIMM |
M3S0-4GMJD5QE | 256M x 8 | 2R x 8 | -40°C ~ 85°C | DDR3 1866 4GB Wide Temperature SODIMM |
M3S0-4GMSC5QE | 512M x 8 | 1R x 8 | -40°C ~ 85°C | DDR3 1866 4GB Wide Temperature SODIMM |
M3S0-8GMSD5QE | 512M x 8 | 2R x 8 | -40°C ~ 85°C | DDR3 1866 8GB Wide Temperature SODIMM |
M3S0-2GMJC4QE | 256M x 8 | 1R x 8 | -40°C ~ 85°C | DDR3L 1866 2GB Wide Temperature SODIMM |
M3S0-2GMVF4QE | 256M x 16 | 1R x 16 | -40°C ~ 85°C | DDR3L 1866 2GB Wide Temperature SODIMM |
M3S0-4GMSC4QE | 512M x 8 | 1R x 8 | -40°C ~ 85°C | DDR3L 1600 4GB Wide Temperature SODIMM |
M3S0-4GMJD4QE | 256M x 8 | 2R x 8 | -40°C ~ 85°C | DDR3L 1866 4GB Wide Temperature SODIMM |
M3S0-8GMSD4QE | 512M x 8 | 2R x 8 | -40°C ~ 85°C | DDR3L 1866 8GB Wide Temperature SODIMM |
