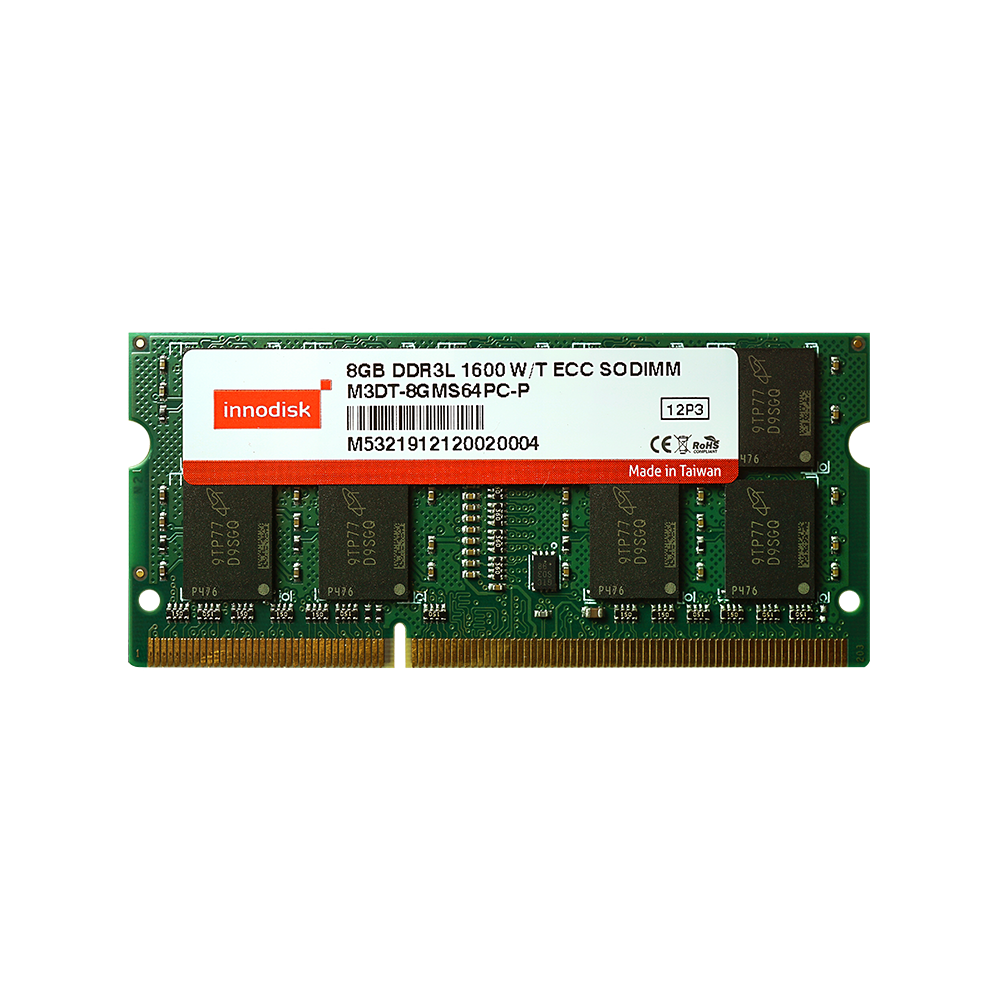

DDR3 Wide Temp. ECC SODIMM

DDR3

ECC Unbuffered Memory

Features

Small outline dual in-line memory module
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: -40°C ~ 85°C
30?” Gold Finger
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 Wide Temperature ECC SODIMM is an industrial memory module that provides lasting performance and is designed for the in-vehicle automation and embedded markets. The modules come equipped with 30?” Gold Fingers and include single bit error correction. DDR3 Wide Temperature ECC SODIMM can operate in temperatures from -40ºC to 85ºC and are available in 2GB, 4GB, and 8GB capacities. Data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s are available.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR3 Wide Temperature ECC SODIMM
DDR Generation	DDR3 Memory
DIMM Type	ECC SODIMM
Speed	1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s
Density	2GB, 4GB, 8GB
Function	ECC Unbuffered Memory
Pin Number	204pin
Bus Width	x72
Voltage	1.35V, 1.5V
PCB Height	1.18 Inches
Operating Temperature	-40°C ~ 85°C
30?” Gold Finger	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3D0-2GMJ25QE	256M x 8	1R x 8	-40°C ~ 85°C	DDR3 1866 2GB Wide Temperature ECC SODIMM
M3D0-2GMJ25PC	256M x 8	1R x 8	-40°C ~ 85°C	DDR3 1600 2GB Wide Temperature ECC SODIMM
M3D0-4GMJ65PC	256M x 8	2R x 8	-40°C ~ 85°C	DDR3 1600 4GB Wide Temperature ECC SODIMM
M3D0-4GMS25QE	512M x 8	1R x 8	-40°C ~ 85°C	DDR3 1866 4GB Wide Temperature ECC SODIMM
M3D0-4GMS25PC	512M x 8	1R x 8	-40°C ~ 85°C	DDR3 1600 8GB Wide Temperature ECC SODIMM
M3D0-8GMS65PC	512M x 8	2R x 8	-40°C ~ 85°C	DDR3 1600 8GB Wide Temperature ECC SODIMM
M3D0-2GMJ24QE	256M x 8	1R x 8	-40°C ~ 85°C	DDR3L 1866 2GB Wide Temperature ECC SODIMM
M3D0-2GMJ24PC	256M x 8	1R x 8	-40°C ~ 85°C	DDR3L 1600 2GB Wide Temperature ECC SODIMM
M3D0-4GMJ64PC	256M x 8	2R x 8	-40°C ~ 85°C	DDR3L 1600 4GB Wide Temperature ECC SODIMM
M3D0-4GMS24PC	512M x 8	1R x 8	-40°C ~ 85°C	DDR3L 1600 4GB Wide Temperature ECC SODIMM
M3D0-4GMS24QE	512M x 8	1R x 8	-40°C ~ 85°C	DDR3L 1866 4GB Wide Temperature ECC SODIMM
M3D0-8GMS64PC	512M x 8	2R x 8	-40°C ~ 85°C	DDR3L 1600 8GB Wide Temperature ECC SODIMM

For more information, please contact our support.
