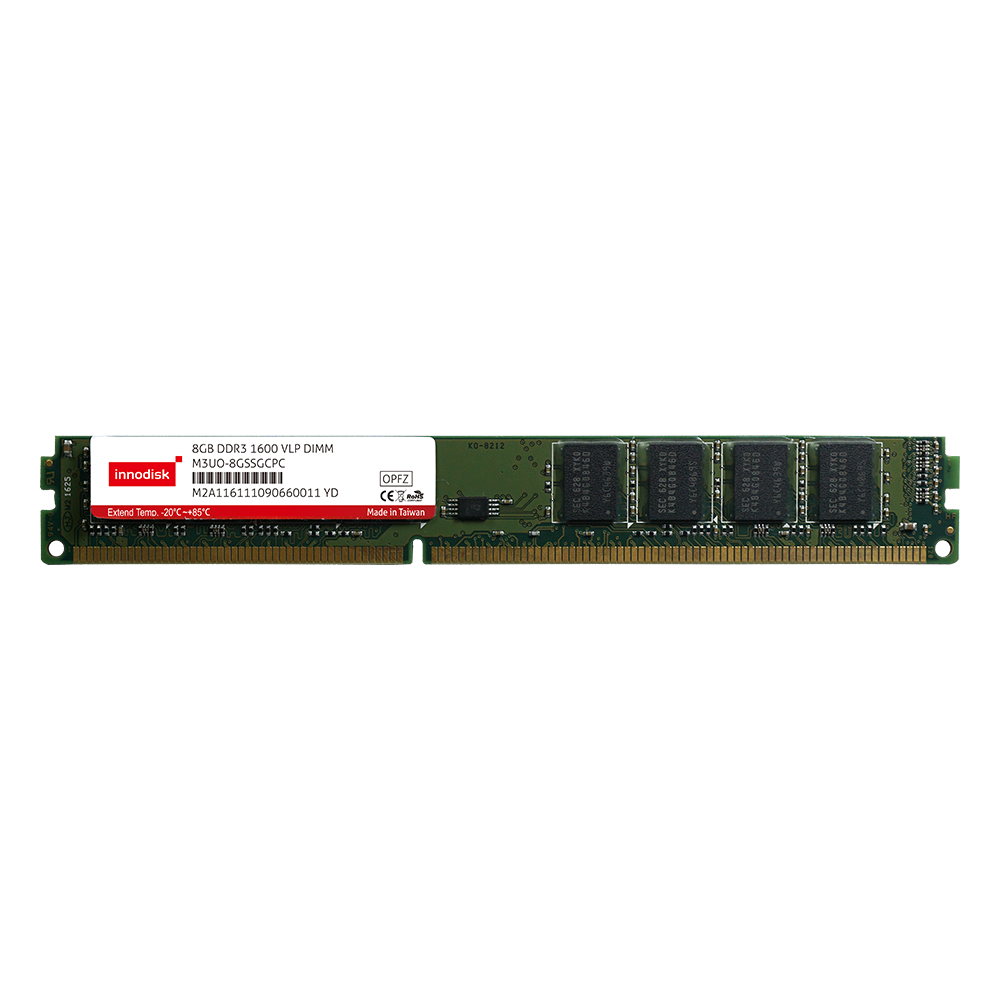

DDR3 UDIMM VLP

DDR3

Non-ECC Unbuffered Memory

Features

Very low profile specialized for use in 1U system
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: 0°C ~ 85°C
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 UDIMM VLP is a memory module that offers a very low-profile design, and it is fully compatible with 1U server applications and other small-scale devices. The modules comply with all relevant JEDEC standards and are available in 2GB, 4GB, and 8GB capacities and with data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s.

VLP modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

SPECIFICATIONS

Model Name	DDR3 UDIMM VLP
DDR Generation	DDR3 Memory
DIMM Type	UDIMM VLP
Speed	1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s
Density	2GB, 4GB, 8GB
Function	Non-ECC Unbuffered Memory
Pin Number	240pin
Bus Width	x64
Voltage	1.35V, 1.5V
PCB Height	0.738 Inches
Operating Temperature	0°C ~ 85°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3U0-2GMJNCQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 2GB UDIMM VLP
M3U0-4GMSNCQE	512M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 2GB UDIMM VLP
M3U0-2GMJNLQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3L 1600 4GB UDIMM VLP
M3U0-4GMSNLQE	512M x 8	1R x 8	0°C ~ 85°C	DDR3L 1600 4GB UDIMM VLP

For more information, please contact our support.
