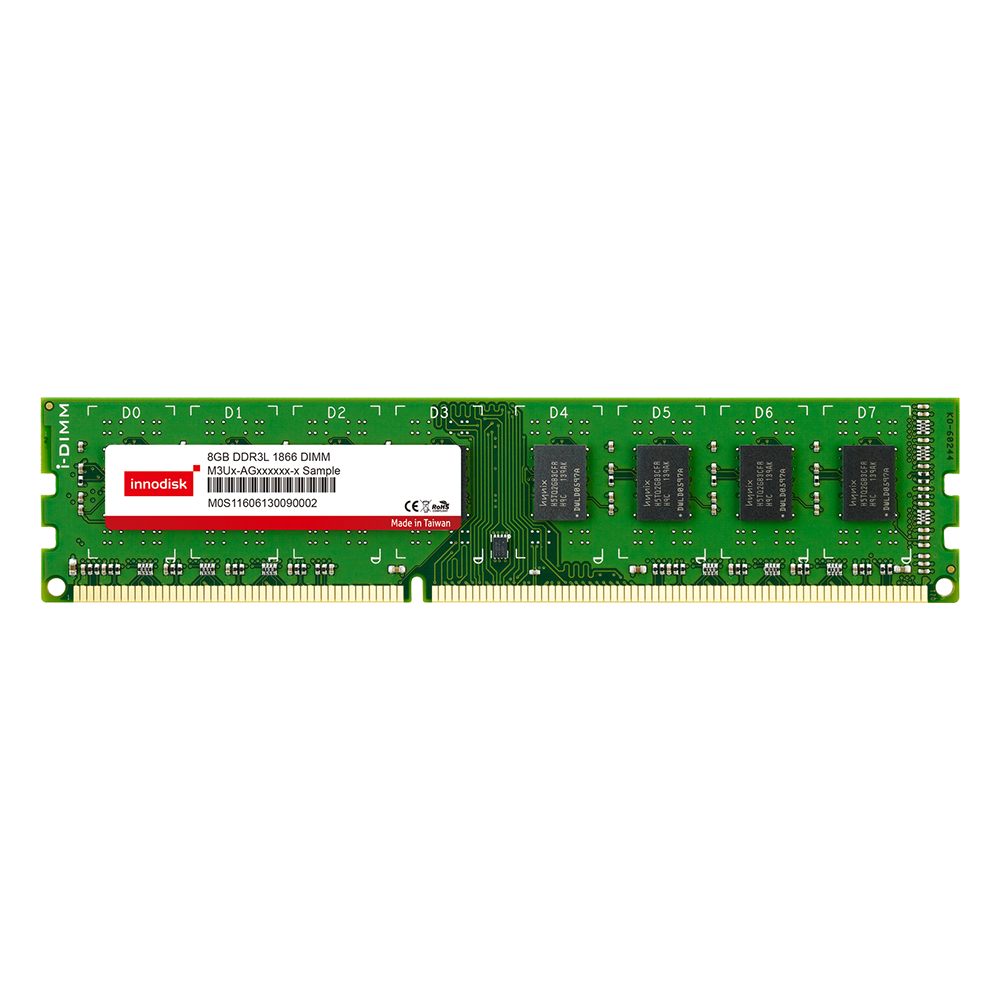

DDR3 UDIMM

DDR3

Non-ECC Unbuffered Memory

Features

Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: 0°C ~ 85°C
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 UDIMM is an industrial memory module that provides lasting performance and is designed for the surveillance, automation, and embedded markets. The modules comply with all relevant JEDEC standards and are available in 2GB, 4GB, and 8GB capacities, and with data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s.

SPECIFICATIONS

Model Name	DDR3 UDIMM
DDR Generation	DDR3 Memory
DIMM Type	UDIMM
Speed	1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s
Density	2GB, 4GB, 8GB
Function	Non-ECC Unbuffered Memory
Pin Number	240pin
Bus Width	x64
Voltage	1.35V, 1.5V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 85°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3U0-2GMJBCQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 2GB UDIMM
M3U0-2GMVHCQE	256M x 16	1R x 16	0°C ~ 85°C	DDR3 1866 2GB UDIMM
M3U0-4GMJACQE	256M x 8	2R x 8	0°C ~ 85°C	DDR3 1866 4GB UDIMM
M3U0-4GMSBCQE	512M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 4GB UDIMM
M3U0-8GMSACQE	512M x 8	2R x 8	0°C ~ 85°C	DDR3 1866 8GB UDIMM
M3U0-2GMJBLQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 2GB UDIMM
M3U0-2GMVHLQE	256M x 16	1R x 16	0°C ~ 85°C	DDR3L 1866 2GB UDIMM
M3U0-4GMJALQE	256M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 4GB UDIMM
M3U0-4GMSBLQE	512M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 4GB UDIMM
M3U0-8GMSALQE	512M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 8GB UDIMM

For more information, please contact our support.
