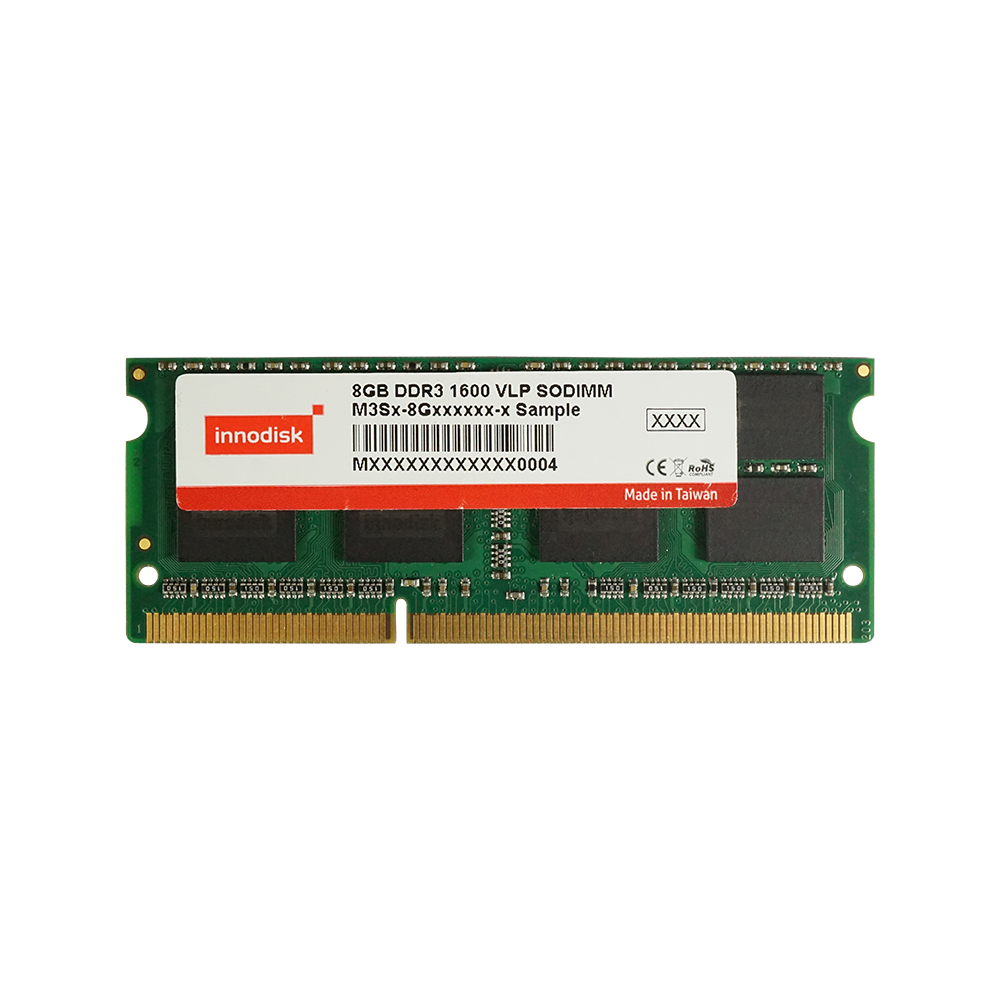

DDR3 SODIMM VLP

DDR3

Non-ECC Unbuffered Memory

Features

Small outline dual in-line memory module
Very low profile specialized for use in 1U system
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: 0°C ~ 85°C
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 SODIMM VLP is a compact memory module that offers a very low-profile design, and it is fully compatible with 1U server applications and other small-scale devices. The modules comply with all relevant JEDEC standards and are available in 2GB, 4GB and, 8GB capacities, with data transfer rates of 1333MT/s, 1600MT/s, and 1866MT/s.

VLP modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

SPECIFICATIONS

Model Name	DDR3 SODIMM VLP
DDR Generation	DDR3 Memory
DIMM Type	SODIMM VLP
Speed	1333 MT/s, 1600 MT/s, 1866 MT/s
Density	2GB, 4GB, 8GB
Function	Non-ECC Unbuffered Memory
Pin Number	204pin
Bus Width	x64
Voltage	1.35V, 1.5V
PCB Height	1.0 Inches
Operating Temperature	0°C ~ 85°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3S0-4GMJUCQE	256M x 8	2R x 8	0°C ~ 85°C	DDR3 1866 4GB SODIMM VLP
M3S0-8GMSUCQE	512M x 8	2R x 8	0°C ~ 85°C	DDR3 1866 8GB SODIMM VLP
M3S0-4GMJULQE	256M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 4GB SODIMM VLP
M3S0-8GMSULQE	512M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 8GB SODIMM VLP

For more information, please contact our support.
