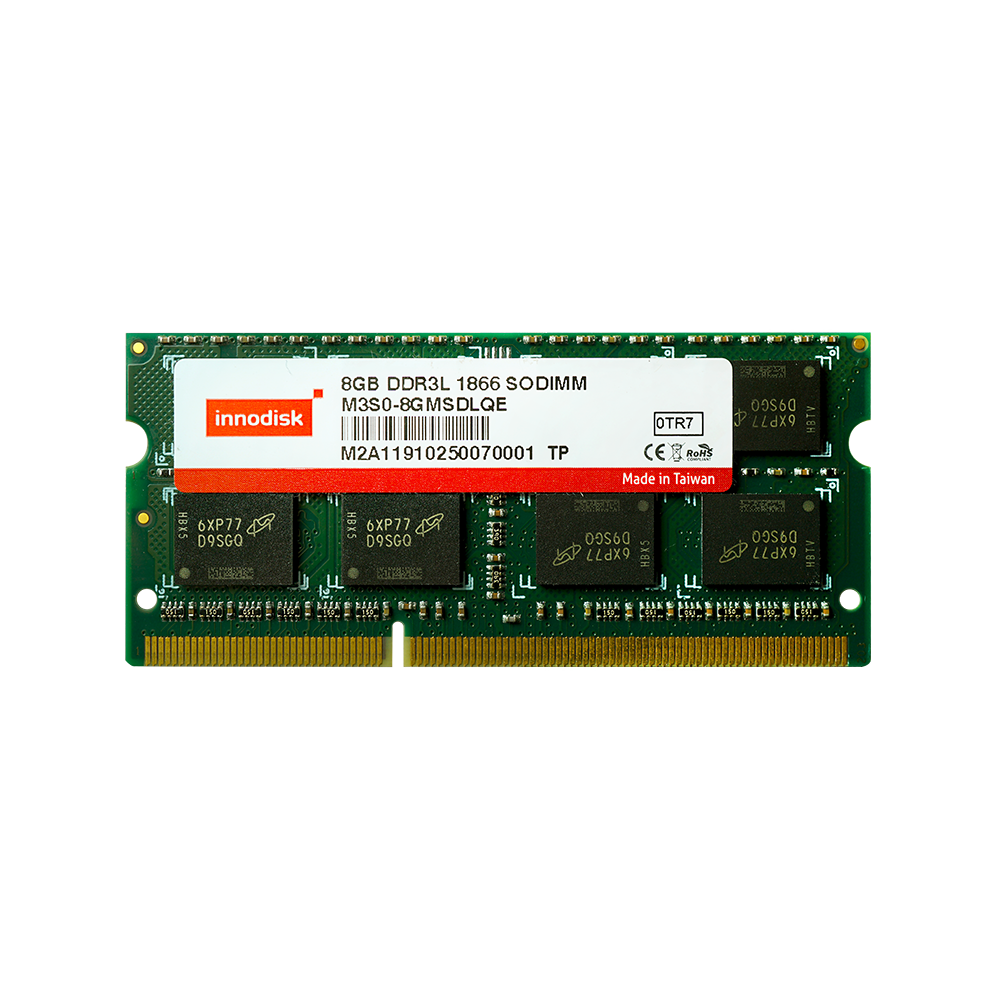

DDR3 SODIMM

DDR3

Non-ECC Unbuffered Memory

Features

Small outline dual in-line memory module
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC Standard 1.5V (1.425V~1.575V) & 1.35V (1.28V~1.45V)
Operating Environment: 0°C ~ 85°C
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 SODIMM memory (small outline) is a compact industrial standards memory module that fits neatly into any embedded, surveillance and automation setup. DDR3 SODIMM memory comply with all relevant JEDEC standards and are available in 1GB, 2GB, 4GB, and 8GB capacities and with data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s.

SPECIFICATIONS

Model Name	DDR3 SODIMM
DDR Generation	DDR3 Memory
DIMM Type	SODIMM
Speed	1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s
Density	1GB, 2GB, 4GB, 8GB
Function	Non-ECC Unbuffered Memory
Pin Number	204pin
Bus Width	x64
Voltage	1.35V, 1.5V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 85°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3S0-1GMWFCQE	128M x 16	1R x 16	0°C ~ 85°C	DDR3 1866 1GB SODIMM
M3S0-2GMJCCQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 2GB SODIMM
M3S0-2GMVFCQE	256M x 16	1R x 8	0°C ~ 85°C	DDR3 1866 2GB SODIMM
M3S0-4GMV0CQE	256M x 16	2R x 16	0°C ~ 85°C	DDR3 1866 4GB SODIMM
M3S0-4GMJDCQE	256M x 8	2R x 8	0°C ~ 85°C	DDR3 1866 4GB SODIMM
M3S0-4GMSCCQE	512M x 8	1R x 16	0°C ~ 85°C	DDR3 1866 4GB SODIMM
M3S0-8GMSDCQE	512M x 8	2R x 16	0°C ~ 85°C	DDR3 1866 8GB SODIMM
M3S0-1GMWFLQE	128M x 16	1R x 16	0°C ~ 85°C	DDR3L 1866 1GB SODIMM
M3S0-2GMJCLQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 2GB SODIMM
M3S0-2GMVFLQE	256M x 16	1R x 8	0°C ~ 85°C	DDR3L 1866 2GB SODIMM
M3S0-4GMJDLQE	256M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 4GB SODIMM
M3S0-4GMV0LQE	256M x 16	2R x 8	0°C ~ 85°C	DDR3L 1866 4GB SODIMM
M3S0-4GMSCLQE	512M x 8	1Rx 8	0°C ~ 85°C	DDR3L 1866 4GB SODIMM
M3S0-8GMSDLQE	512M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 8GB SODIMM

For more information, please contact our support.
