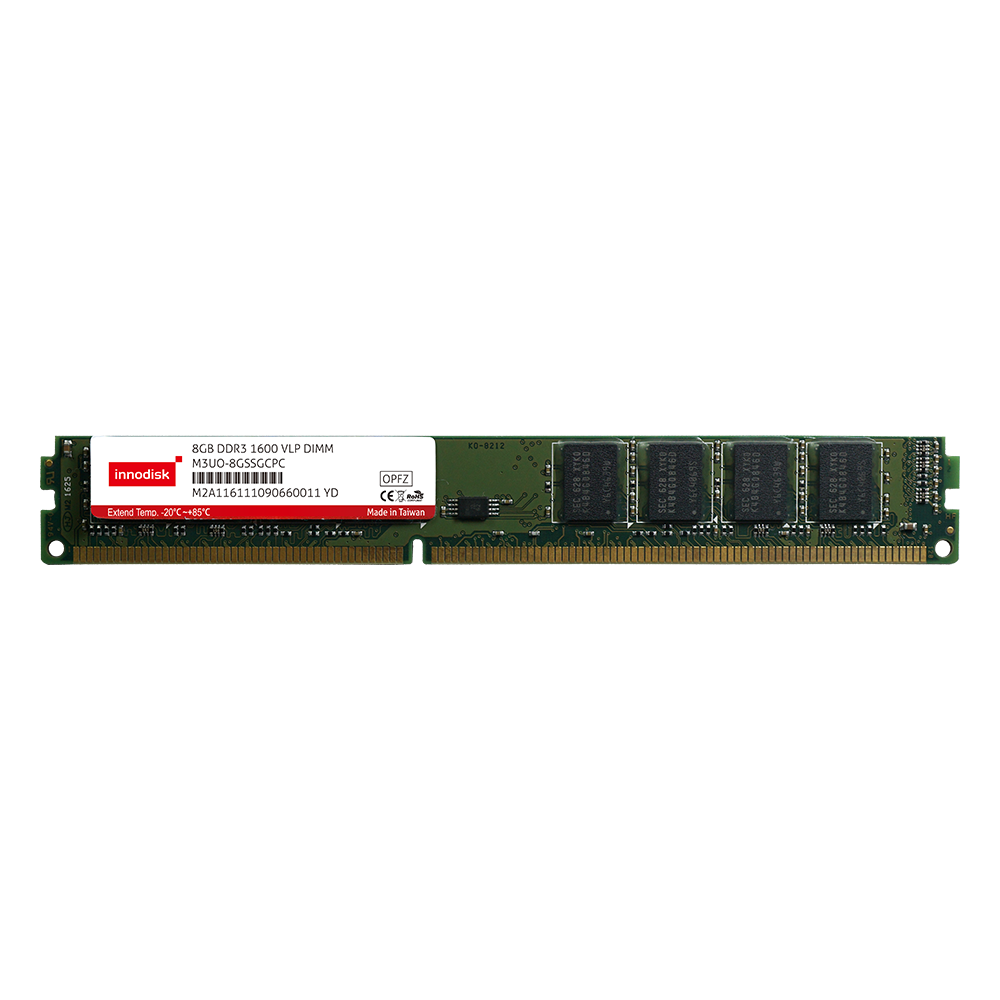

DDR3 RDIMM VLP

DDR3

Registered Memory with ECC

Features

Very low profile specialized for use in 1U system
Register that enhances clock, command, and control signals
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: 0°C ~ 85°C
RoHS Compliance and CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 RDIMM VLP is a very low-profile and an industrial memory module that provides lasting performance, and is designed for the server and networking markets. The modules come equipped with 30?” Gold Fingers and include single bit error correction, and a register to enhance clock, command, and control signals. 4GB and 8GB capacities are available, as well as data transfer rates of 1333MT/s, 1600MT/s, and 1866MT/s.

VLP DIMM modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR3 RDIMM VLP
DDR Generation	DDR3 Memory
DIMM Type	RDIMM VLP
Speed	1333 MT/s, 1600 MT/s, 1866 MT/s
Density	4GB, 8GB
Function	Registered Memory with ECC
Pin Number	240pin
Bus Width	x72
Voltage	1.35V, 1.5V
PCB Height	0.738 Inches
Operating Temperature	0°C ~ 85°C
30?” Gold Finger	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
ACT4GHR72N8J1600M-VLP	512M x 8	1R x 8	0°C ~ 85°C	DDR3 1600 4GB RDIMM VLP
ACT4GHR72N8J1600M-LVP	512M x 8	1R x 8	0°C ~ 85°C	DDR3L 1600 4GB RDIMM VLP
ACT8GHR72P8J1866M-VLP	512M x 8	2R x 8	0°C ~ 85°C	DDR3 1866 8GB RDIMM VLP
ACT8GHR72P8J1866M-LVP	512M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 8GB RDIMM VLP

For more information, please contact our support.
