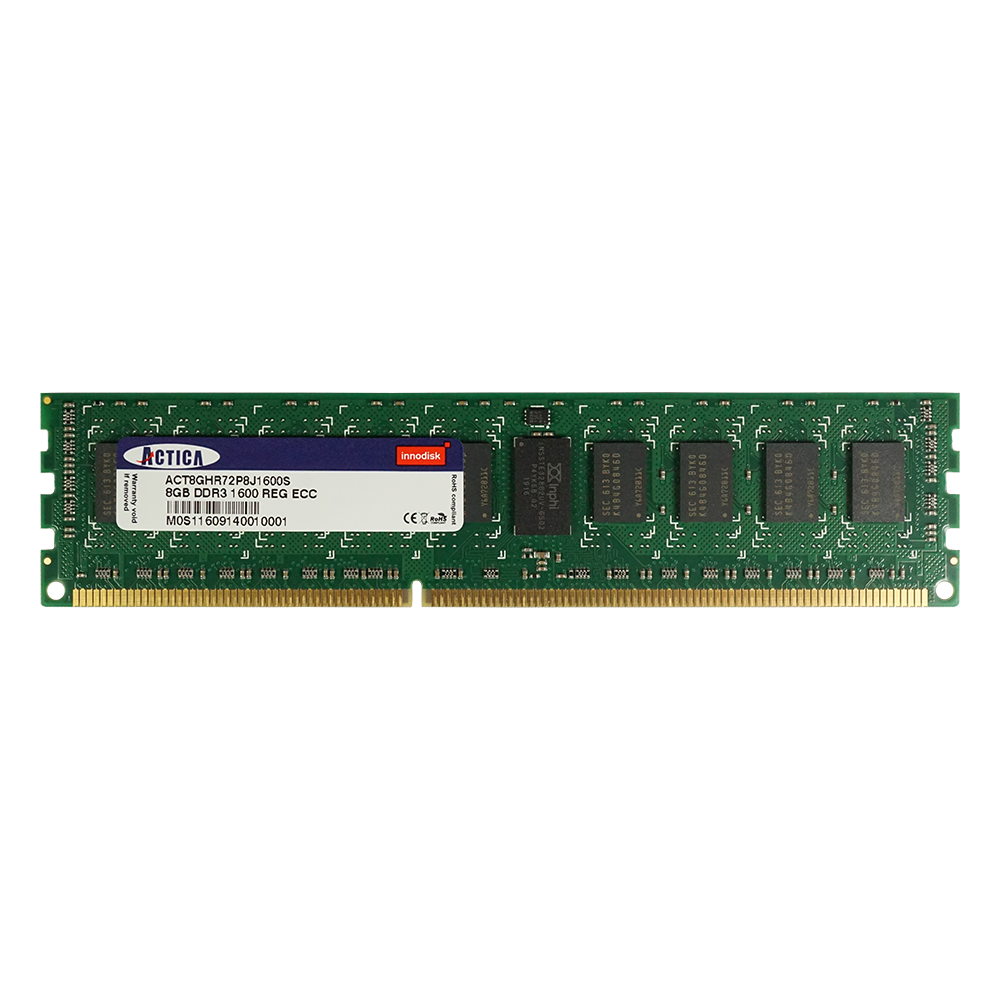

DDR3 RDIMM

DDR3

Registered Memory with ECC

Features

Register that enhances clock, command, and control signals
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: 0°C ~ 85°C
30?” Gold Finger
RoHS Compliance, CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 RDIMM is an industrial memory module that provides lasting performance and is designed for the server and networking markets. The modules come equipped with 30?” Gold Fingers and include single bit error correction and a register to enhance clock, command, and control signals. 2GB, 4GB, and 8GB capacities are available, as well as data transfer rates of 1333MT/s, 1600MT/s, and 1866MT/s.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR3 RDIMM
DDR Generation	DDR3 Memory
DIMM Type	RDIMM
Speed	1333 MT/s, 1600 MT/s, 1866 MT/s
Density	2GB, 4GB, 8GB
Function	Registered Memory with ECC
Pin Number	240pin
Bus Width	x72
Voltage	1.35V, 1.5V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 85°C
30?” Gold Finger	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
ACT2GHR72N8H1866M	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 2GB RDIMM
ACT4GHR72P8H1866M	256M x 8	2R x 8	0°C ~ 85°C	DDR3 1866 4GB RDIMM
ACT4GHR72N8J1866M	512M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 4GB RDIMM
ACT8GHR72P8J1866M	512M x 8	2R x 8	0°C ~ 85°C	DDR3 1866 8GB RDIMM
ACT2GHR72N8H1866M-LV	256M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 2GB RDIMM
ACT4GHR72P8H1866M-LV	256M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 4GB RDIMM
ACT4GHR72N8J1866M-LV	512M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 4GB RDIMM
ACT8GHR72P8J1866M-LV	512M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 8GB RDIMM

For more information, please contact our support.
