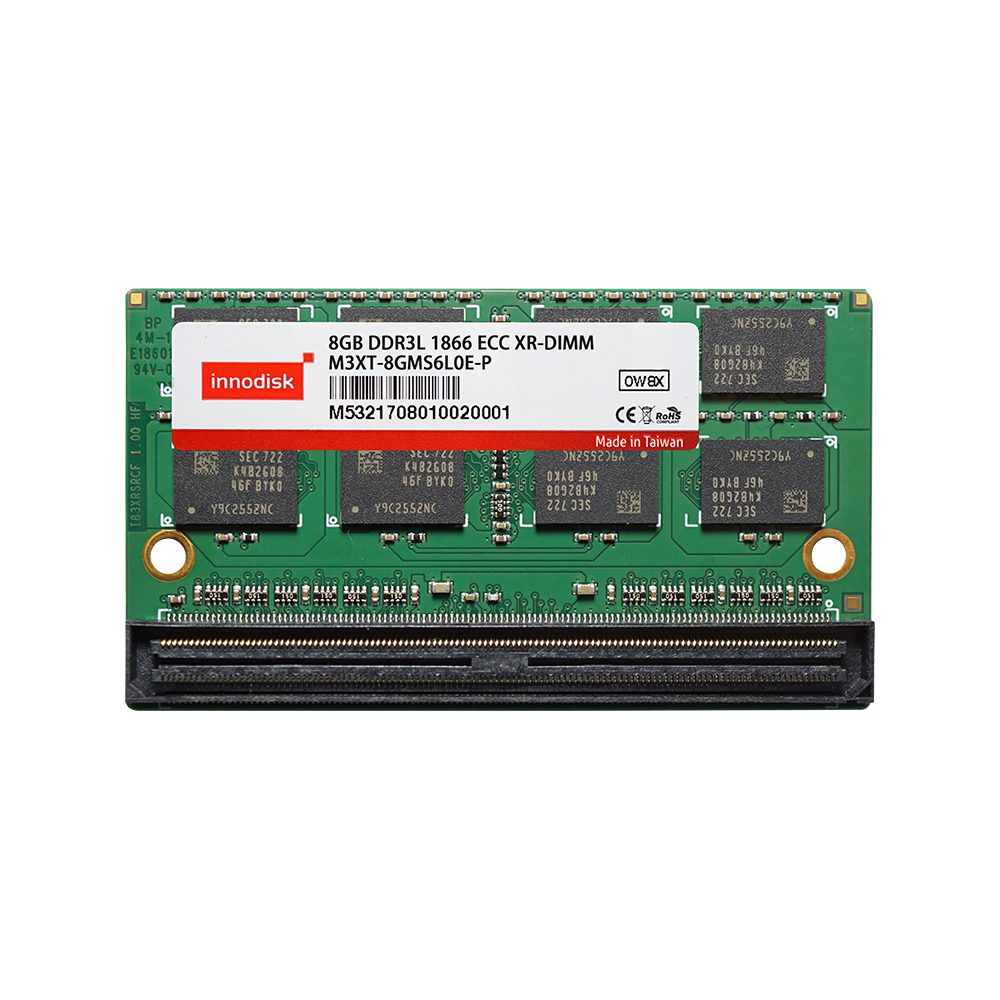

DDR3 ECC XR-DIMM

DDR3

ECC Unbuffered Memory

Features

Customized connector prevents DIMM from coming loose under challenging conditions
Equipped with 2 mounting holes to ensure a firm connection
Designed for aerospace & mission critical applications and other harsh environment usage
Operating Environment: 0°C ~ 85°C
RoHS Compliance and CE / FCC Certification
For the XR-DIMM, all features can be customized which also requires establishing a new customized project line. We suggest first assessing if the product specifications are in accordance with your needs.

BORN FOR SUPERIOR PERFORMANCE

DDR3 ECC XR-DIMM is Innodisk's most robust memory module, designed for mission-critical applications and harsh environments. With its 300-pin socket connector, Innodisk’s DDR3 ECC XR-DIMM exceeds the pin count standard established by the SFF Special Interest Group (SFF-SIG), ensuring a secure and stable connection between the CPU and DRAM module. The series is available in 4GB and 8GB capacities, with transfer rates of 1600MT/s and 1866MT/s.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR3 ECC XR-DIMM
DDR Generation	DDR3 Memory
DIMM Type	ECC XR-DIMM
Speed	1600 MT/s, 1866 MT/s
Density	4GB, 8GB
Function	ECC Unbuffered Memory
Pin Number	300pin
Bus Width	x72
Voltage	1.35V, 1.5V
PCB Height	1.49 Inches
Operating Temperature	0°C ~ 85°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3XT-4GMJ6L0E-K	256M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 4GB ECC XR-DIMM
M3XT-8GMS6L0E-P	512M x 8	2R x 8	0°C ~ 85°C	DDR3L 1866 8GB ECC XR-DIMM

For more information, please contact our support.
