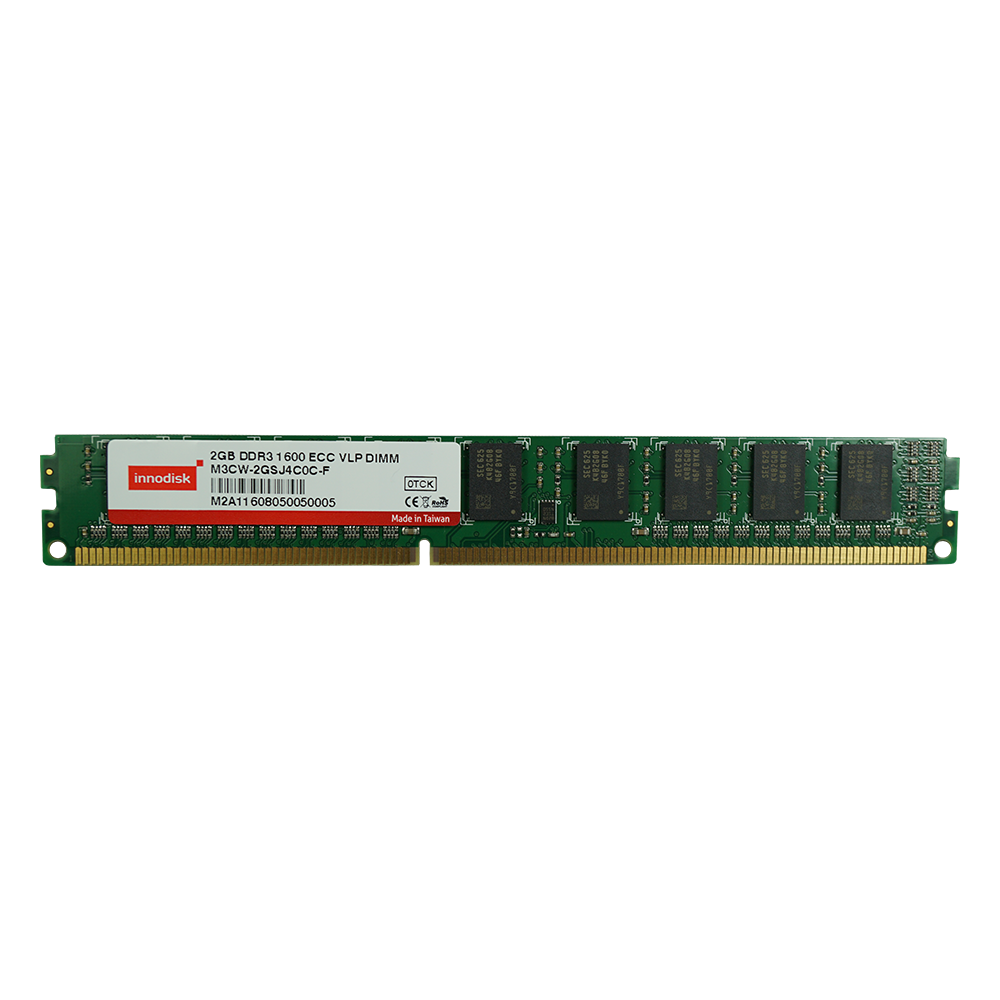

DDR3 ECC UDIMM VLP

DDR3

ECC Unbuffered Memory

Features

Very low profile specialized for use in 1U system
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: 0°C ~ 85°C
30?” Gold Finger
RoHS Compliance and CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 ECC UDIMM VLP is an industrial memory module that provides lasting performance and is designed for the server and networking markets. The modules come equipped with 30?” Gold Fingers and include single bit error correction. 2GB, 4GB, and 8GB capacities are available, as well as data transfer rates of 1333MT/s, 1600MT/s, and 1866MT/s.

VLP modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR3 ECC UDIMM VLP
DDR Generation	DDR3 Memory
DIMM Type	ECC UDIMM VLP
Speed	1333 MT/s, 1600 MT/s, 1866 MT/s
Density	2GB, 4GB, 8GB
Function	ECC Unbuffered Memory
Pin Number	240pin
Bus Width	x72
Voltage	1.35V, 1.5V
PCB Height	0.738 Inches
Operating Temperature	0°C ~ 85°C
30?” Gold Finger	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3U0-2GMJNCQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 2GB ECC UDIMM VLP
M3U0-4GMSNCQE	512M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 4GB ECC UDIMM VLP
M3U0-2GMJNLQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 2GB ECC UDIMM VLP
M3U0-4GMSNLQE	512M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 4GB ECC UDIMM VLP

For more information, please contact our support.
