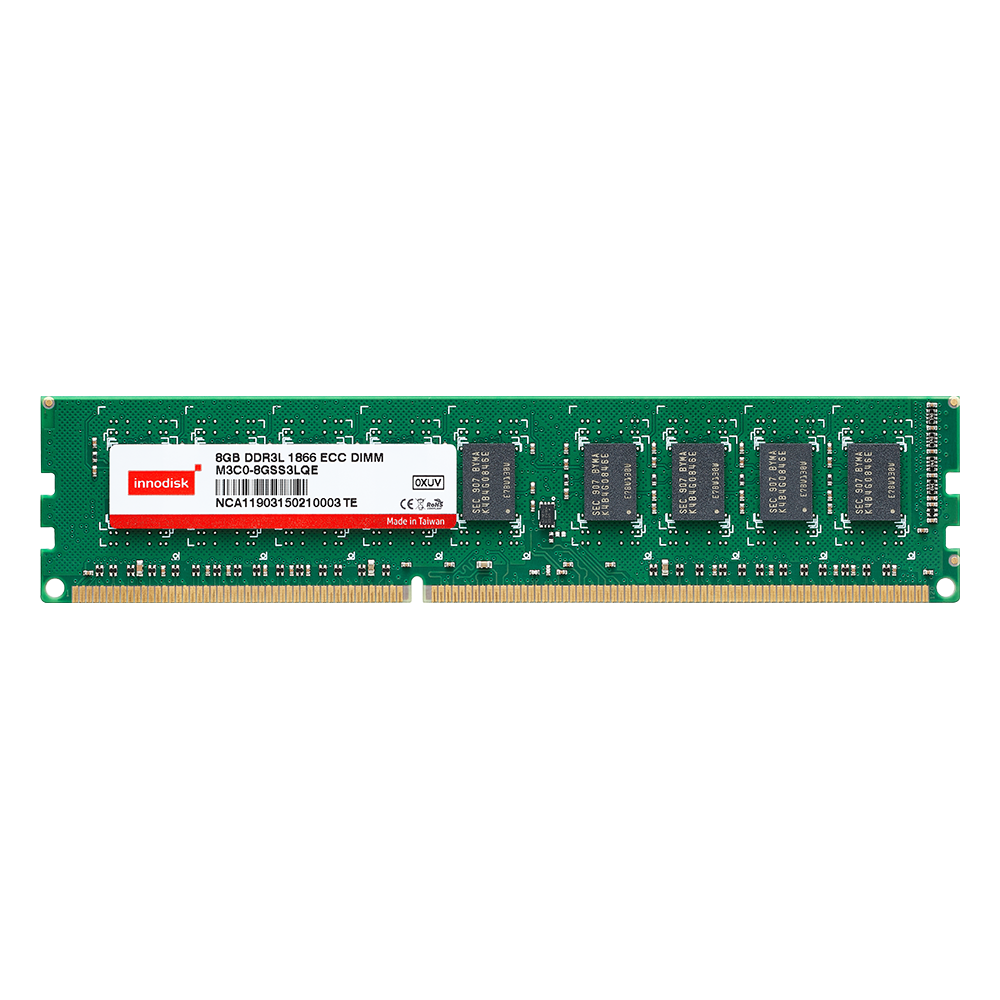

 | DDR3ECC Unbuffered Memory Features
|
DDR3 ECC UDIMM is an industrial memory module that provides lasting performance and is designed for the server and networking markets. The modules come equipped with 30?” Gold Fingers and include single bit error correction. 2GB, 4GB, and 8GB capacities are available, as well as data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s.
ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.
Model Name | DDR3 ECC UDIMM |
DDR Generation | DDR3 Memory |
DIMM Type | ECC UDIMM |
Speed | 1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s |
Density | 2GB, 4GB, 8GB |
Function | ECC Unbuffered Memory |
Pin Number | 240pin |
Bus Width | x72 |
Voltage | 1.35V, 1.5V |
PCB Height | 1.18 Inches |
Operating Temperature | 0°C ~ 85°C |
30?” Gold Finger | Y |
P/N | IC Config. | Rank | Temp. | Description |
M3C0-2GMJ1CQE | 256M x 8 | 1R x 8 | 0°C ~ 85°C | DDR3 1866 2GB ECC UDIMM |
M3C0-4GMJ3CQE | 256M x 8 | 2R x 8 | 0°C ~ 85°C | DDR3 1866 2GB ECC UDIMM |
M3C0-4GMS1CQE | 512M x 8 | 1R x 8 | 0°C ~ 85°C | DDR3 1866 4GB ECC UDIMM |
M3C0-8GMS3CQE | 512M x 8 | 2R x 8 | 0°C ~ 85°C | DDR3 1866 4GB ECC UDIMM |
M3C0-2GMJ1LQE | 256M x 8 | 1R x 8 | 0°C ~ 85°C | DDR3L 1866 4GB ECC UDIMM |
M3C0-4GMJ3LQE | 256M x 8 | 2R x 8 | 0°C ~ 85°C | DDR3L 1866 4GB ECC UDIMM |
M3C0-4GMS1LQE | 512M x 8 | 1R x 8 | 0°C ~ 85°C | DDR3L 1866 8GB ECC UDIMM |
M3C0-8GMS3LQE | 512M x 8 | 2R x 8 | 0°C ~ 85°C | DDR3L 1866 8GB ECC UDIMM |
For more information, please contact our support.
