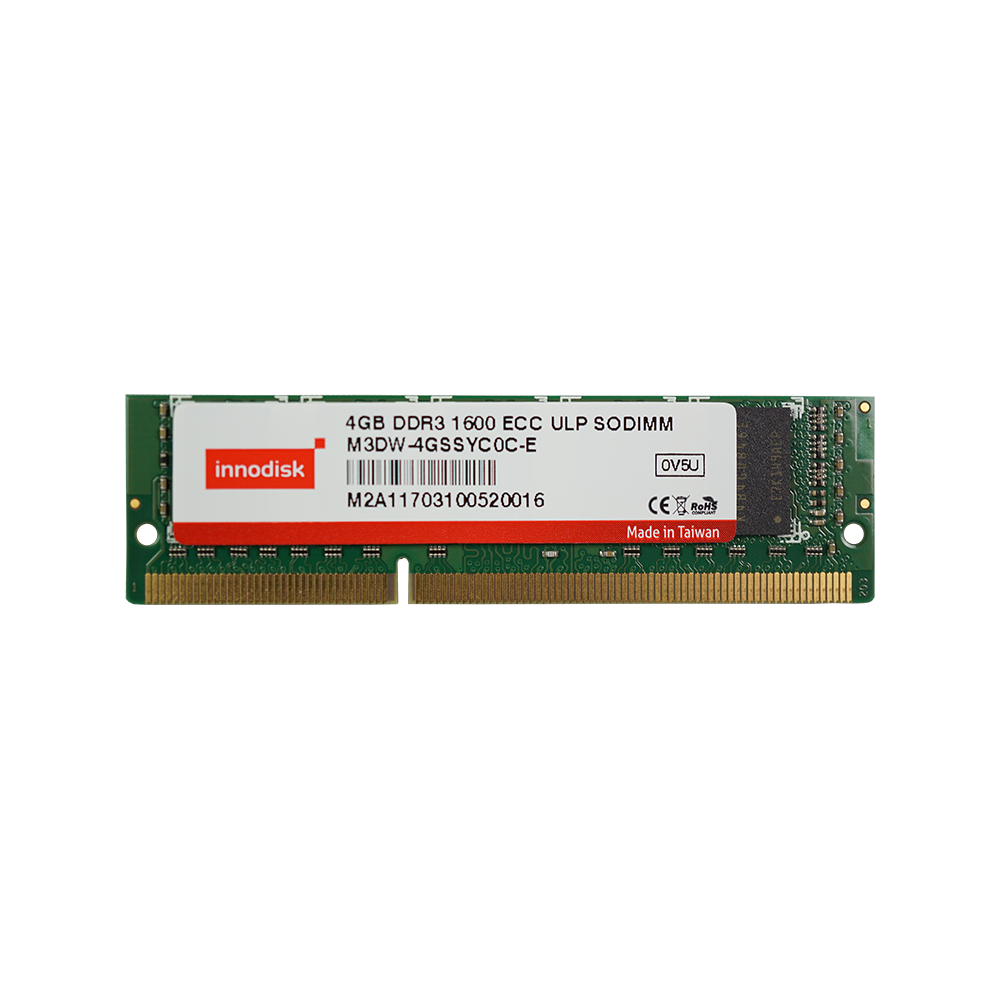

DDR3 ECC SODIMM ULP

DDR3

ECC Unbuffered Memory

Features

Small outline dual in-line memory module
Ultra low profile feature specialized for use in 1U system
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
30?” Gold Finger
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 ECC SODIMM ULP is an ultra low-profile, compact industrial memory module that provides lasting performance, and is designed for the server, telecom and networking markets. The modules come equipped with 30?” Gold Fingers and include single bit error correction. 2GB and 4GB capacities are available, as well as data transfer rates of 1333MT/s and 1600MT/s.

ULP modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR3 ECC SODIMM ULP
DDR Generation	DDR3 Memory
DIMM Type	ECC SODIMM ULP
Speed	1333 MT/s, 1600 MT/s
Density	2GB, 4GB
Function	ECC Unbuffered Memory
Pin Number	204pin
Bus Width	x72
Voltage	1.35V, 1.5V
PCB Height	0.709 Inches
Operating Temperature	0°C ~ 85°C
30?” Gold Finger	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3D0-2GMJ25QE	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 2GB ECC SODIMM ULP
M3D0-4GMS25QE	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 4GB ECC SODIMM ULP
M3D0-2GMJ24QE	512M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 2GB ECC SODIMM ULP
M3D0-4GMS24QE	512M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 4GB ECC SODIMM ULP

For more information, please contact our support.
