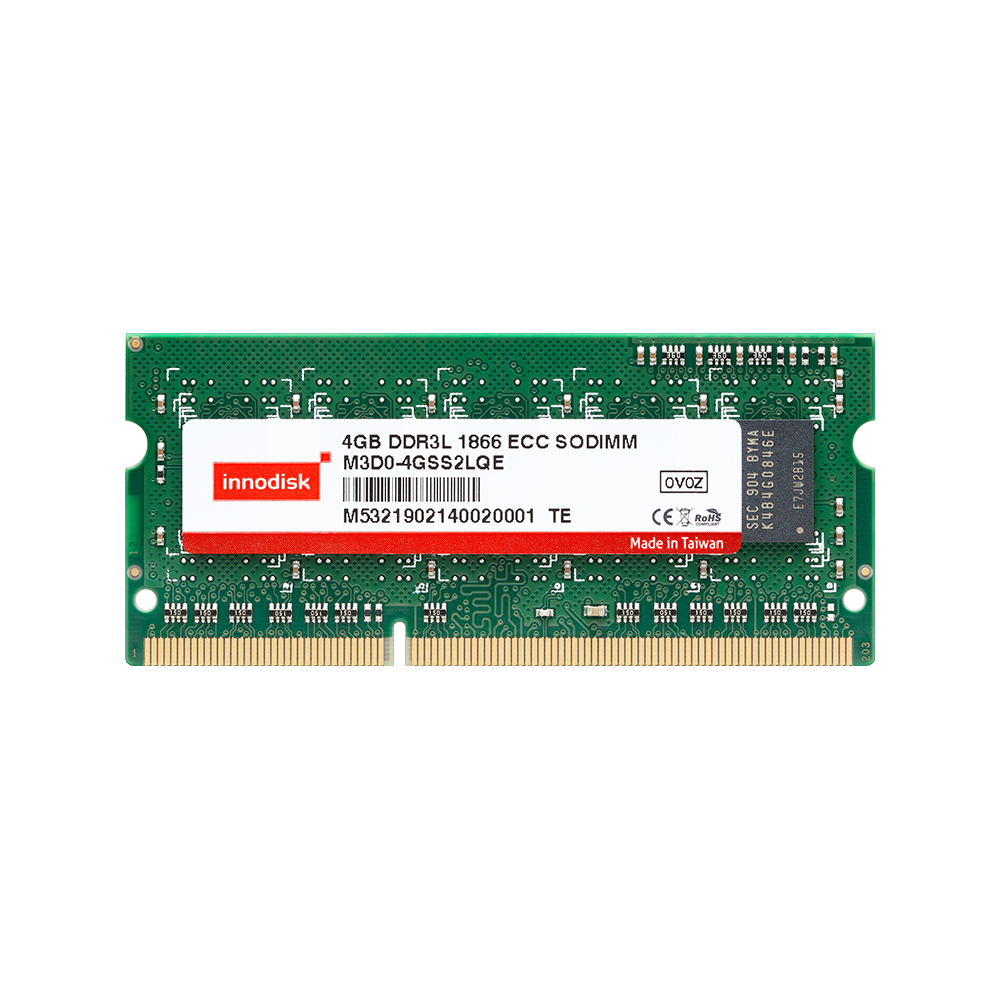

DDR3 ECC SODIMM

DDR3

ECC Unbuffered Memory

Features

Small outline dual in-line memory module
ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
Operating Environment: 0°C ~ 85°C
30?” Gold Finger
RoHS Compliance
CE / FCC Certification

BORN FOR SUPERIOR PERFORMANCE

DDR3 ECC SODIMM (small outline) is an industrial memory module that provides lasting performance and is designed for the server and networking markets. The modules come equipped with 30?” Gold Fingers and include single bit error correction. 2GB, 4GB, and 8GB capacities are available, as well as data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR3 ECC SODIMM
DDR Generation	DDR3 Memory
DIMM Type	ECC SODIMM
Speed	1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s
Density	2GB, 4GB, 8GB
Function	ECC Unbuffered Memory
Pin Number	204pin
Bus Width	x72
Voltage	1.35V, 1.5V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 85°C
30?” Gold Finger	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M3D0-2GMJ2CQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 2GB ECC SODIMM
M3D0-4GMS2CQE	512M x 8	1R x 8	0°C ~ 85°C	DDR3 1866 4GB ECC SODIMM
M3D0-2GMJ2LQE	256M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 4GB ECC SODIMM
M3D0-4GMS2LQE	512M x 8	1R x 8	0°C ~ 85°C	DDR3L 1866 4GB ECC SODIMM

For more information, please contact our support.
