DDR2 Wide Temp. SODIMM

DDR2

Non-ECC Unbuffered Memory

Feature

Small Outline Dual In-line Memory Module
Fully Tested and Optimized for Stability and Performance
Uses Original IC to Meet Strict Industrial Standards
JEDEC Standard 1.8V +/- 0.1V
Operating Environment : -40°C ~ 85°C
30?” Gold Finger
RoHS Compliance
CE/FCC Certification

BORN FOR SUPERIOR PERFORMANCE

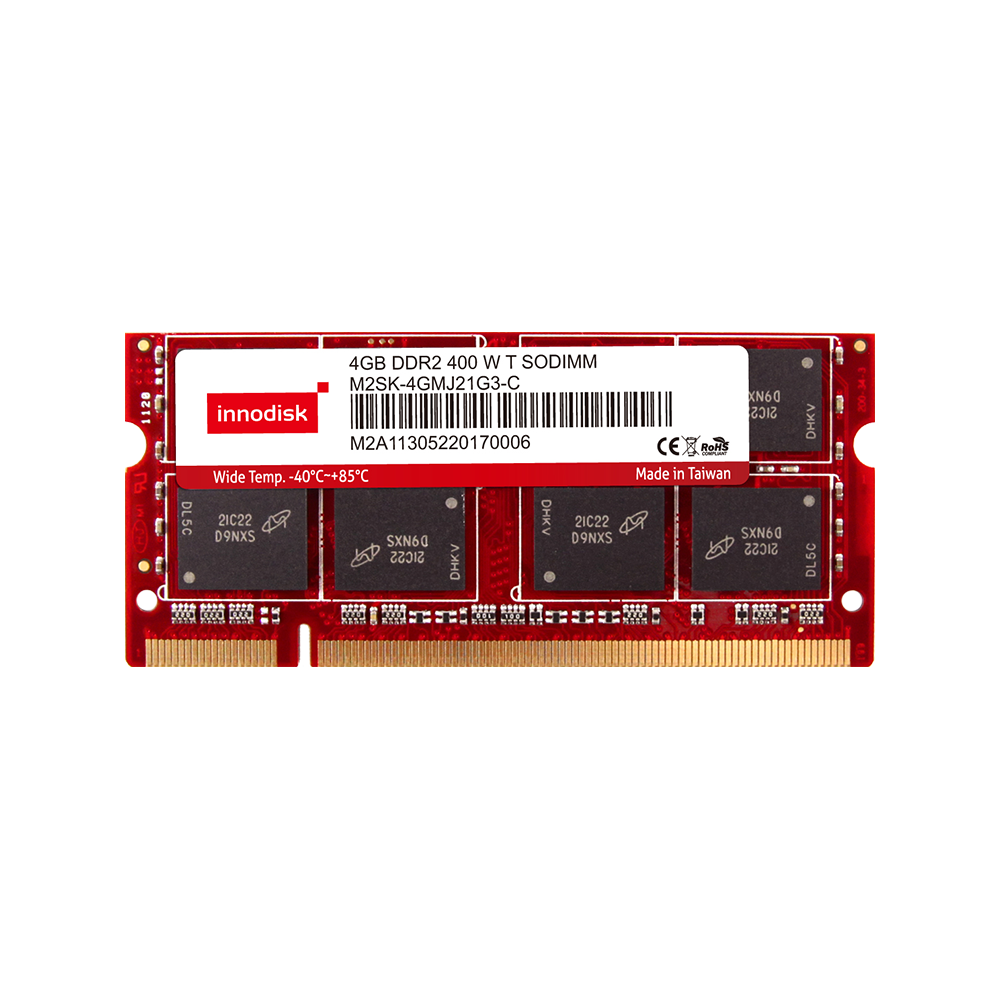

DDR2 Wide Temperature SODIMM (small outline) is a compact memory module that fits neatly into any embedded, surveillance and automation setup. The modules comply with all relevant JEDEC standards, can operate in temperatures from -40ºC to 85ºC, and are available in 1GB and 2GB capacities and with data transfer rates of 533MT/s, 667MT/s, and 800MT/s.

SPECIFICATIONS

Model Name	DDR2 Wide Temperature SODIMM
DDR Generation	DDR2 Memory
DIMM Type	SODIMM
Speed	533 MT/s, 667 MT/s, 800 MT/s
Density	1GB, 2GB
Function	Non-ECC Unbuffered Memory
Pin Number	200pin
Bus Width	x64
Voltage	1.8V
PCB Height	1.18 Inches
Operating Temperature	-40°C ~ 85°C
30?” Gold Finger	Y

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M2SK-1GMF5I05-M	128M x 8	1R x 8	-40°C ~ 85°C	DDR2 800 1GB Wide Temperature SODIMM
M2SK-2GMF6I05-M	128M x 8	2R x 8	-40°C ~ 85°C	DDR2 800 2GB Wide Temperature SODIMM

For more information, please contact our support.
