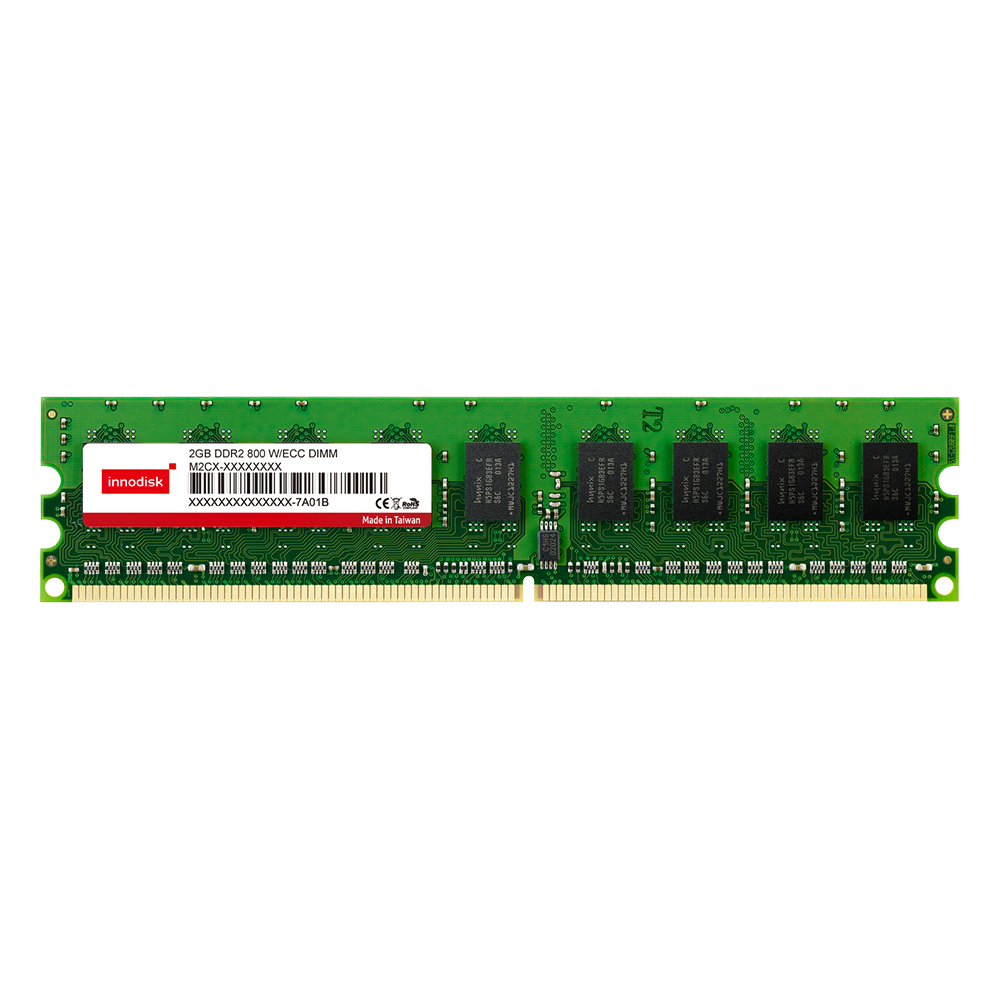

DDR2 ECC UDIMM

DDR2

ECC Unbuffered Memory

Feature

ECC DIMM incorporates error correction and detection capabilities
Fully tested and optimized for stability and performance
Uses original IC to meet strict industrial standards
JEDEC standard 1.8V +/- 0.1V
Operating Environment: 0°C ~ 85°C
30?” Gold Finger
RoHS Compliance

BORN FOR SUPERIOR PERFORMANCE

DDR2 ECC UDIMM is a memory module that provides lasting performance and is designed for the server and networking markets. The modules come equipped with 30?” Gold Fingers and include single bit error correction. 1GB and 2GB capacities are available and with data transfer rates of 667MT/s and 800MT/s.

ECC function is designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend the original data.

SPECIFICATIONS

Model Name	DDR2 ECC UDIMM
DDR Generation	DDR2 Memory
DIMM Type	ECC UDIMM
Speed	667 MT/s, 800 MT/s
Density	1GB, 2GB
Function	ECC Unbuffered Memory
Pin Number	240pin
Bus Width	x72
Voltage	1.8V
PCB Height	1.18 Inches
Operating Temperature	0°C ~ 85°C

ORDER INFORMATION

P/N	IC Config.	Rank	Temp.	Description
M2CK-1GMFRC06-M	128M x 8	1R x 8	0°C ~ 85°C	DDR2 800 1GB ECC UDIMM
M2CK-2GMF9C06-M	128M x 8	2R x 8	0°C ~ 85°C	DDR2 800 2GB ECC UDIMM

For more information, please contact our support.
