CFexpress 4TE3

CFexpress

High Speed, Low Latency, Low Power

Features

Powered by PCIe Gen 3 x2 and NVMe 1.4, delivering fast and reliable performance
Supports temperature -40°C to 85°C with dynamic thermal throttling to maintain SSD stability

BORN FOR SUPERIOR PERFORMANCE

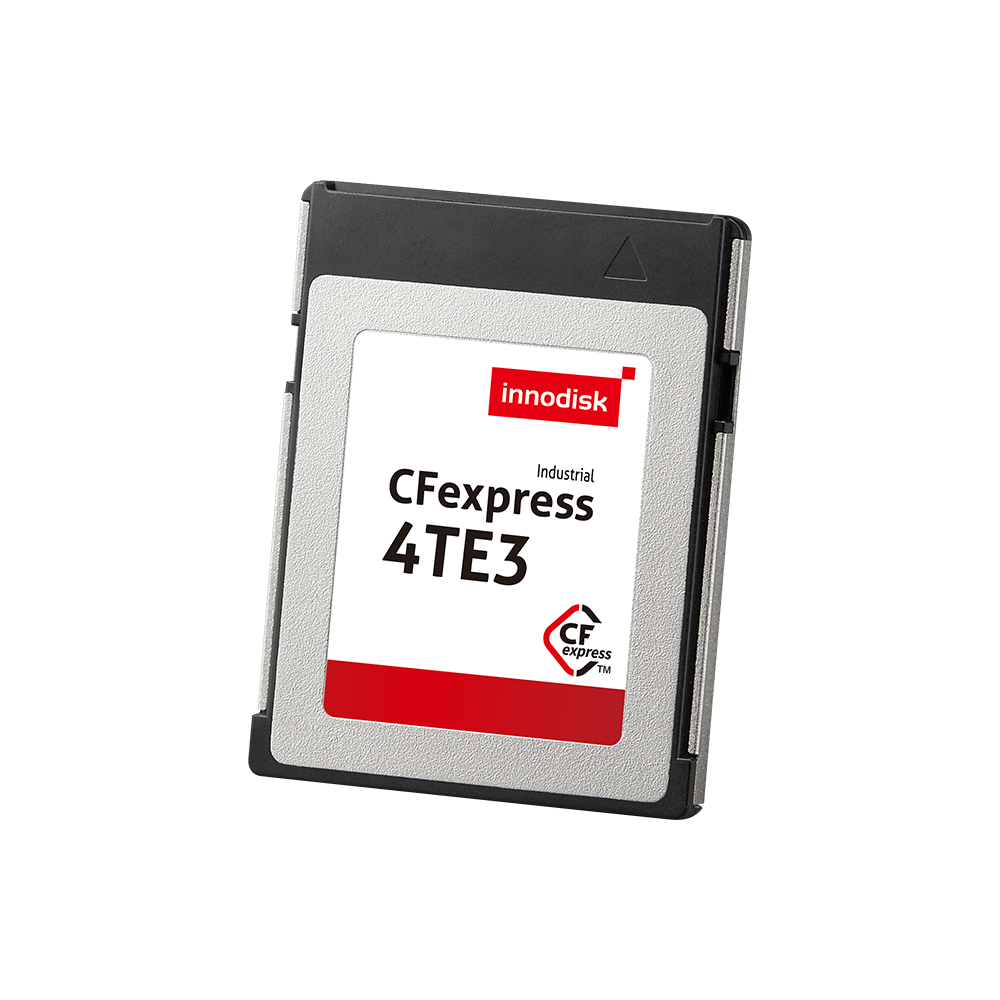

CFexpress 4TE3 is a compact, removable memory card built on the CFexpress Version 1.0 Type B specification. It features a PCIe Gen 3 x2 interface and 3D TLC NAND Flash while adhering to the NVMe 1.4 protocol, delivering exceptional performance and high reliability. Equipped with Error Correction Code (ECC) technology, the CFexpress 4TE3 provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	CFexpress 4TE3
Flash Type	3D TLC
Interface	PCIe Gen 3 x2
Form Factor	CFexpress 1.0 Type B
Capacity	128GB ~ 2TB
Sequential R / W (MB/sec, max.)	1,750 / 1,500
P/E Cycle	3,000
TBW (Max.)	1,621
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	3W
Max. Channels	4
External DRAM Buffer	N
Features	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	29.6 x 38.5 x 3.8
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DECFX-A28DH1KCADF(W)	DECFX-A28DH1KWADF(W)
256GB	DECFX-B56DH1KCAQF(W)	DECFX-B56DH1KWAQF(W)
512GB	DECFX-C12DH1KCAQF(W)	DECFX-C12DH1KWAQF(W)
1TB	DECFX-01TDH1KCAQF(W)	DECFX-01TDH1KWAQF(W)
2TB	DECFX-02TDH1KCAQF(W)	DECFX-02TDH1KWAQF(W)

W : H/W Write Protect
For TCG Opal function, the PN Code 10th ~ 12th will be DH2.

For more information, please contact our support.
