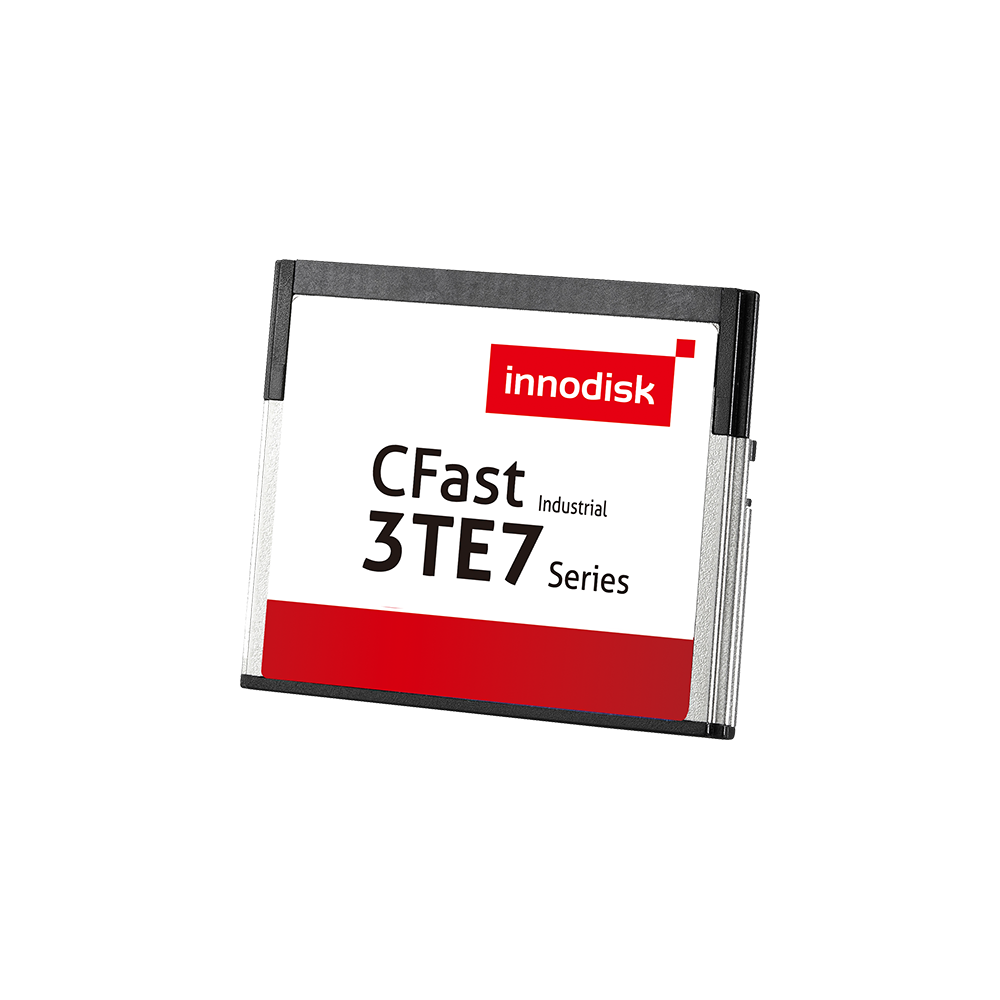

CFast 3TE7

CFast

32GB ~ 1TB

Features

High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down
iData Guard for abnormal power failure
DEVSLP supported
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk CFast 3TE7 is SATA III 6.0 Gb/s Flash based disk, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TE7 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of CFast 3TE7 for industrial applications.

SPECIFICATIONS

Model Name	CFast 3TE7
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	CFast 2.0
Capacity	32GB ~ 1TB
Sequential R / W (MB/sec, max.)	560 / 490
P/E Cycle	3,000
TBW (Max.)	1,200
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.5W
Max. Channels	4
External DRAM Buffer	N
Feature	AES, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DECFA-32GDK1EC1SF(W)	DECFA-32GDK1EW1SF(W)
64GB	DECFA-64GDK1%C*DF(W)	DECFA-64GDK1%W*DF(W)
128GB	DECFA-A28DK1%C*DF(W)	DECFA-A28DK1%W*QF(W)
256GB	DECFA-B56DK1%C*QF(W)	DECFA-B56DK1%W*QF(W)
512GB	DECFA-C12DK1%C*QF(W)	DECFA-C12DK1%W*QF(W)
1TB	DECFA-01TDK1%C*QF(W)	DECFA-01TDK1%W*QF(W)

*. PCB version control
%. E : 64 layers 3D TLC / K : 112 layers 3D TLC
(W) : H/W write protect function (Optional)

For more information, please contact our support.
