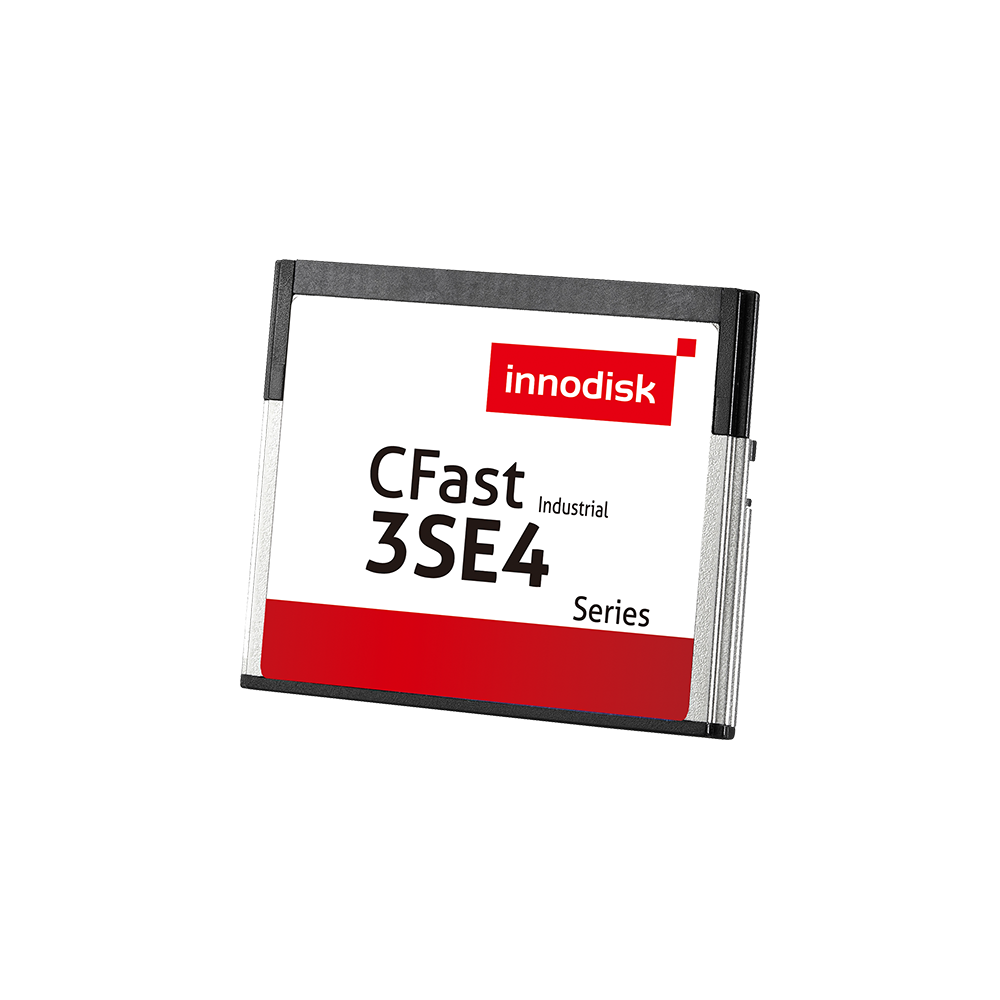

CFast 3SE4

CFast

8GB ~ 64GB

Features

Excellent performance
Long lifespan
Designed with LDPC ECC engine
DRAM-less, 100% data integrity
Supports TRIM / NCQ / SMART
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk CFast 3SE4, featured as small form factor, can be configured as a boot device or data storage and is suitable for most industrial application. With SLC NAND Flash and LDPC ECC, CFast 3SE4 provide high performance and prolong lifespan with exceptional reliability. Supported with hardware write protection, CFast 3SE4 can prevent valuable data on a device from modification and deletion.

Innodisk CFast 3SE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	CFast 3SE4
Flash Type	SLC
Interface	SATA III 6.0 Gb/s
Form Factor	CFast 2.0
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	520 / 360
P/E Cycle	60,000
TBW (Max.)	2,500
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1W
Max. Channels	2
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DECFA-08GM41SCADB(W)	DECFA-08GM41SWADB(W)
16GB	DECFA-16GM41SCADB(W)	DECFA-16GM41SWADB(W)
32GB	DECFA-32GM41SCADB(W)	DECFA-32GM41SWADB(W)
64GB	DECFA-64GM41SCADB(W)	DECFA-64GM41SWADB(W)

(W) : H/W write protect function (Optional)
