 | CFast4GB ~ 64GB Features
|

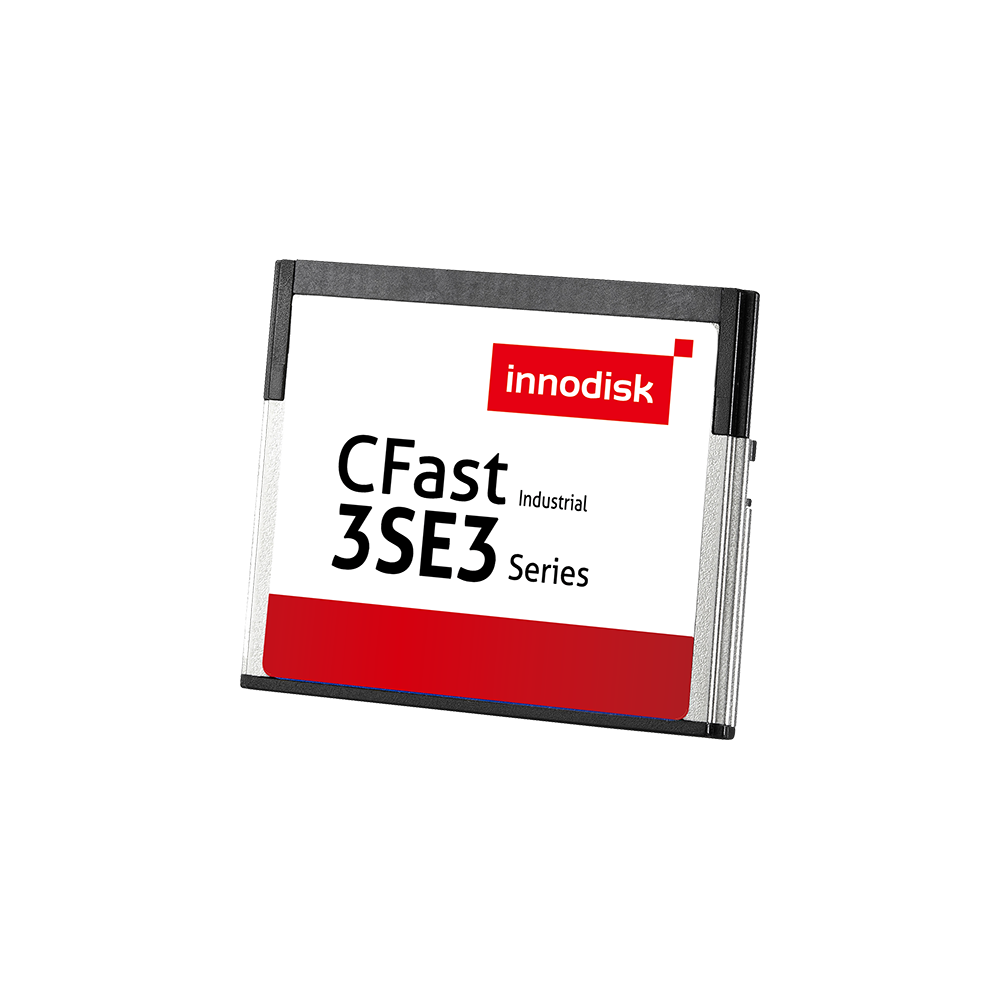

The Innodisk CFast 3SE3 operates at SATA III 6.0 Gb/s, which offers data transfer rate of read up to 330MB/s, and of sequential write up to 180MB/s. Compliant with CFast 2.0 standard, it is designed with 7+17 pin connector and is SATA compatible. Due to the idle power saving, it reduces 30% power consumption. CFast 3SE3 is featured as small form factor, and suitable for most industrial application.
CFast 3SE3 can work under harsh environment, and complies with ATA protocol. Without additional drivers, the disk can be configured as a boot device or data storage device. CFast 3SE3 support hardware write protect to prevent modification of valuable data on a device. Besides, through Innodisk's enhanced power cycling technology and more capacitors, CFast 3SE3 prevents data loss caused by sudden power failure. By using Innodisk's iSMART, users can not only monitor the operation status of SSD, but also visualize wear-leveling status with graphics.
Model Name | CFast 3SE3 |
Flash Type | SLC |
Interface | SATA III 6.0 Gb/s |
Form Factor | CFast 2.0 |
Capacity | 4GB ~ 64GB |
Sequential R / W (MB/sec, max.) | 330 / 190 |
P/E Cycle | 60,000 |
TBW (Max.) | 375 |
Storage Temperature | -55°C ~ 95°C |
Max. Power Consumption | 1.7W |
Max. Channels | 4 |
External DRAM Buffer | N |
Feature | H/W Write Protect, S.M.A.R.T. |
Dimension (W x L x H/mm) | 42.8 x 36.4 x 3.6 |
Vibration | 20G@[7 ~ 2000Hz] |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Warranty | 5 Years |
Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
4GB | DECFA-04GD09AC1&B(W) | DECFA-04GD09AW1&B(W) |
8GB | DECFA-08GD09AC1DB(W) | DECFA-08GD09AW1DB(W) |
16GB | DECFA-16GD08SCAQB(W) | DECFA-16GD08SWAQB(W) |
32GB | DECFA-32GD08SCAQB(W) | DECFA-32GD08SWAQB(W) |
64GB | DECFA-64GD08SCAQB(W) | DECFA-64GD08SWAQB(W) |
&. S : 1 channel / D : 2 channels
(W) : H/W write protect function (Optional)
