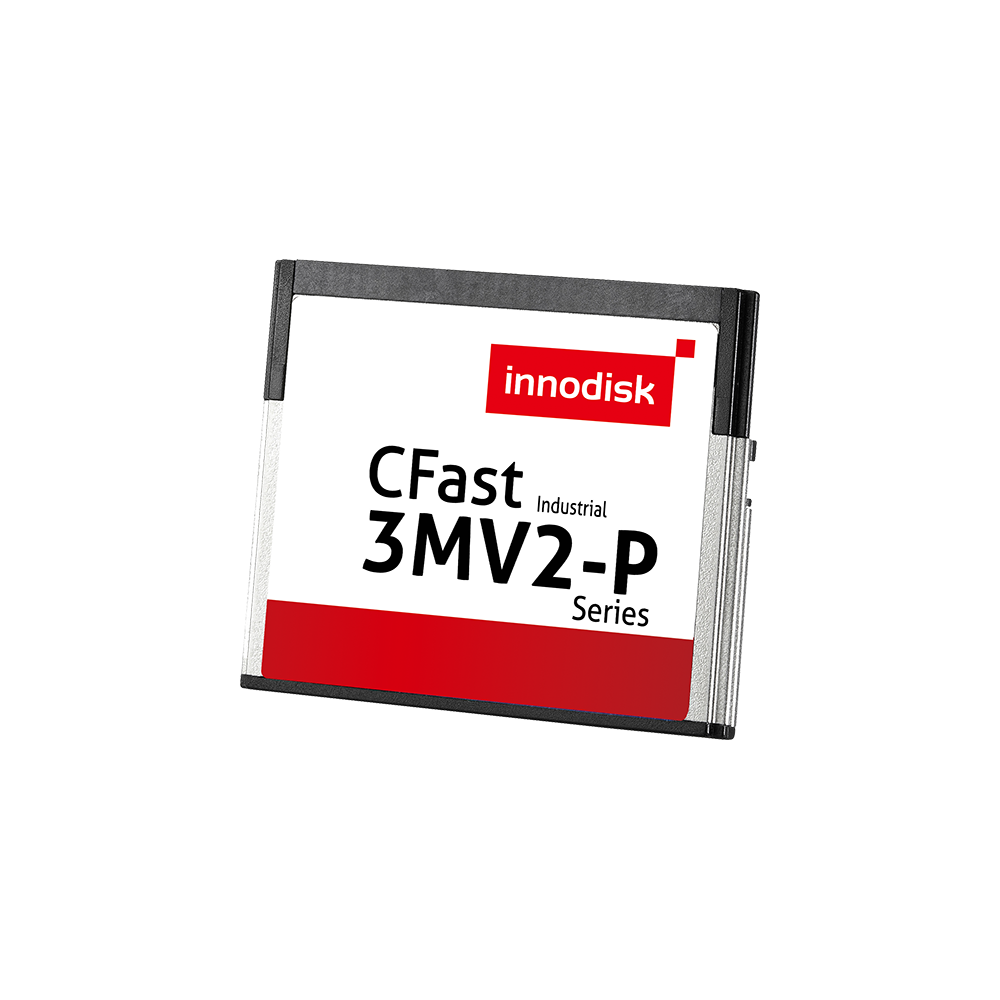

CFast 3MV2-P

CFast

32GB ~ 256GB

Features

InnoREC solution for surveillance application
Exclusive RECLine for video recording ensures steady performance without any frame-loss
Built-in thermal sensor
Supports S.M.A.R.T, TRIM, NCQ and iData Guard
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

InnoREC is Innodisk’s proprietary Flash feature set designed specifically for surveillance applications. Through the smart integration of firmware and hardware, the speed and performance required by modern surveillance solutions is fully met. Innodisk CFast 3MV2-P is SATA III 6Gb/s Flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including surveillance system, embedded system and industrial computing.

Innodisk CFast 3MV2-P supports several standard features, including RECLine, TRIM, NCQ, and S.M.A.R.T. Innodisk’s exclusive RECLine is ideal for video recording. With steady performance, no need to worry about any frame-loss. CFast 3MV2-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	CFast 3MV2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	CFast 2.0
Capacity	32GB ~ 256GB
Sequential R / W (MB/sec, max.)	560 / 350
P/E Cycle	3,000
TBW (Max.)	300
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.5W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Series	Surveillance SSD
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DVCFA-32GD81BCADC(W)	DVCFA-32GD81BWADC(W)
64GB	DVCFA-64GD81BCAQC(W)	DVCFA-64GD81BWAQC(W)
128GB	DVCFA-A28D81BCAQC(W)	DVCFA-A28D81BWAQC(W)
256GB	DVCFA-B56D81BCAQC(W)	DVCFA-B56D81BWAQC(W)

(W) : H/W write protect function (Optional)
