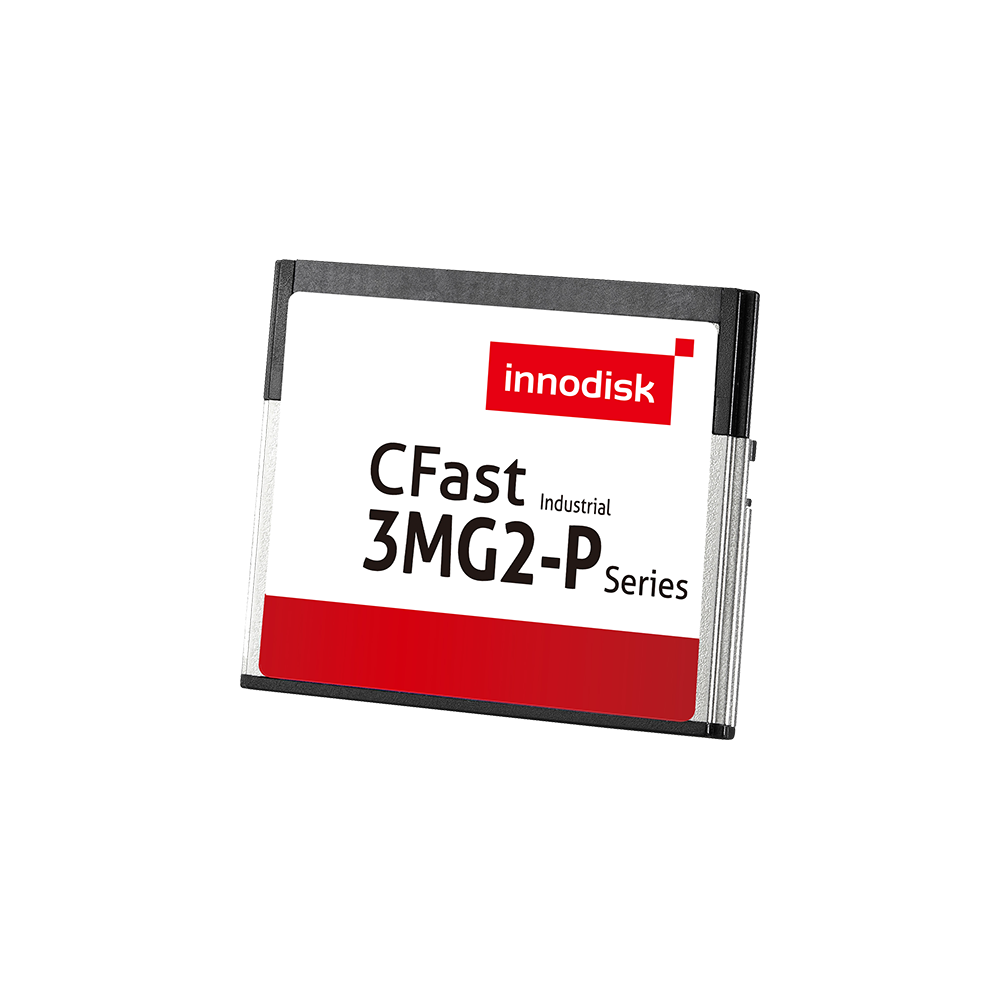

CFast 3MG2-P

CFast

32GB ~ 256GB

Features

SATA III solution for industrial field
High sequential / IOPS performance
Intelligent error recovery system
iSMART for disk health monitoring
iData Guard for abnormal power failure
Supports TRIM / NCQ / SMART
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk CFast 3MG2-P is SATA III 6Gb/s Flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

CFast 3MG2-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	CFast 3MG2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	CFast 2.0
Capacity	32GB ~ 256GB
Sequential R / W (MB/sec, max.)	560 / 350
P/E Cycle	3,000
TBW (Max.)	300
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	2.5W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DGCFA-32GD81BCADC(W)	DGCFA-32GD81BWADC(W)
64GB	DGCFA-64GD81BCAQC(W)	DGCFA-64GD81BWAQC(W)
128GB	DGCFA-A28D81BCAQC(W)	DGCFA-A28D81BWAQC(W)
256GB	DGCFA-B56D81BCAQC(W)	DGCFA-B56D81BWAQC(W)

(W) : H/W write protect function (Optional)
