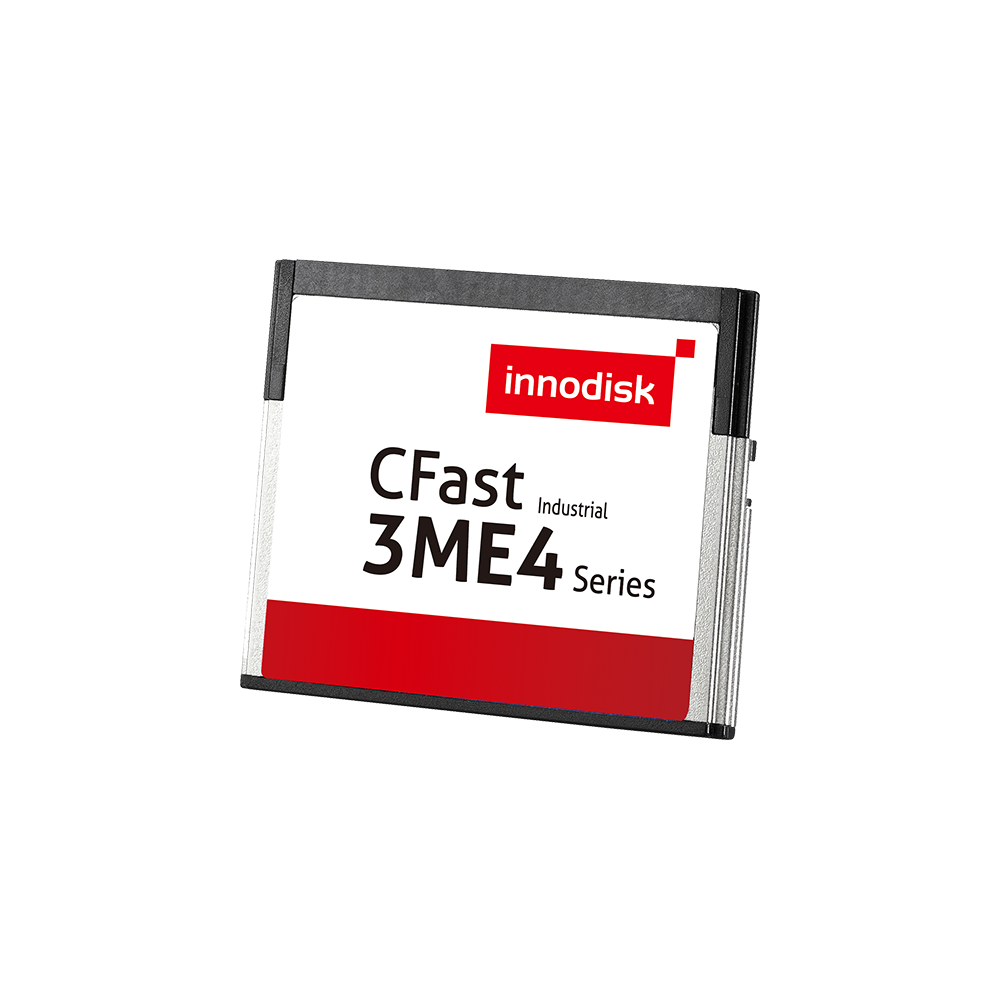

CFast 3ME4

CFast

8GB ~ 256GB

Features

Innovative firmware algorithm
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM / NCQ / SMART
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk CFast 3ME4 is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Without additional driver, CFast 3ME4, featured as small form factor, can be configured as a boot device or data storage and is suitable for most industrial application. Supported with hardware write protection, CFast 3ME4 can prevent valuable data on a device from modification and deletion.

Innodisk CFast 3ME4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	CFast 3ME4
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	CFast 2.0
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	530 / 210
P/E Cycle	3,000
TBW (Max.)	416
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1W
Max. Channels	2
External DRAM Buffer	N
Feature	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DECFA-08GM41BC1SC(W)	DECFA-08GM41BW1SC(W)
16GB	DECFA-16GM41BC1&C(W)	DECFA-16GM41BW1&C(W)
32GB	DECFA-32GM41BC1DC(W)	DECFA-32GM41BW1DC(W)
64GB	DECFA-64GM41BC1DC(W)	DECFA-64GM41BW1DC(W)
128GB	DECFA-A28M41BC1DC(W)	DECFA-A28M41BW1DC(W)
256GB	DECFA-B56M41BC1DC(W)	DECFA-B56M41BW1DC(W)

&. S : 1 channel / D : 2 channels

For more information, please contact our support.
