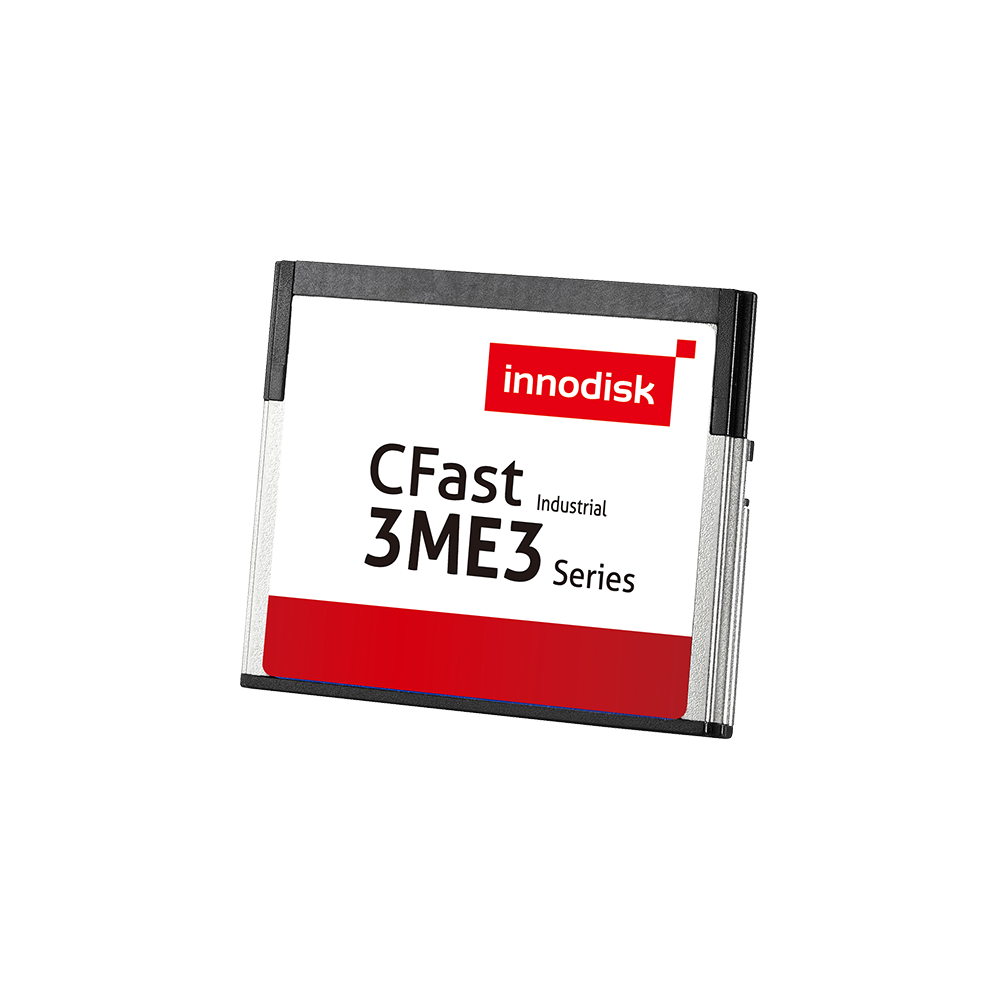

CFast 3ME3

CFast 8GB ~ 512GB Features Innovative Firmware Algorithm DRAM-less, 100% data integrity Excellent random performance Supports TRIM / NCQ / SMART Built in iData Guard Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

The Innodisk CFast 3ME3 operates at SATA III 6.0 Gb/s, which offers data transfer rate of read up to 220MB/s, and of sequential write up to 130MB/s. Compliant with CFast 2.0 standard, it is designed with 7+17 pin connector and is SATA compatible. Due to the idle power saving, it reduces 30% power consumption. CFast 3ME3 is featured as small form factor, and suitable for most industrial application.

CFast 3ME3 can work under harsh environment, and complies with ATA protocol. Without additional drives, the disk can be configured as a boot device or data storage device. CFast 3ME3 support hardware write protect to prevent modification of valuable data on a device. Besides, through Innodisk's enhanced power cycling technology and more capacitors, CFast 3ME3 prevents data loss caused by sudden power failure. By using Innodisk's iSMART, users can not only monitor the operation status of SSD, but also visualize Wear-Leveling status with graphics.

SPECIFICATIONS

ORDER INFORMATION

*. PCB version control
&. S : 1 channel / D : 2 channels
(W) : H/W write protect function (Optional)

For more information, please contact our support.
