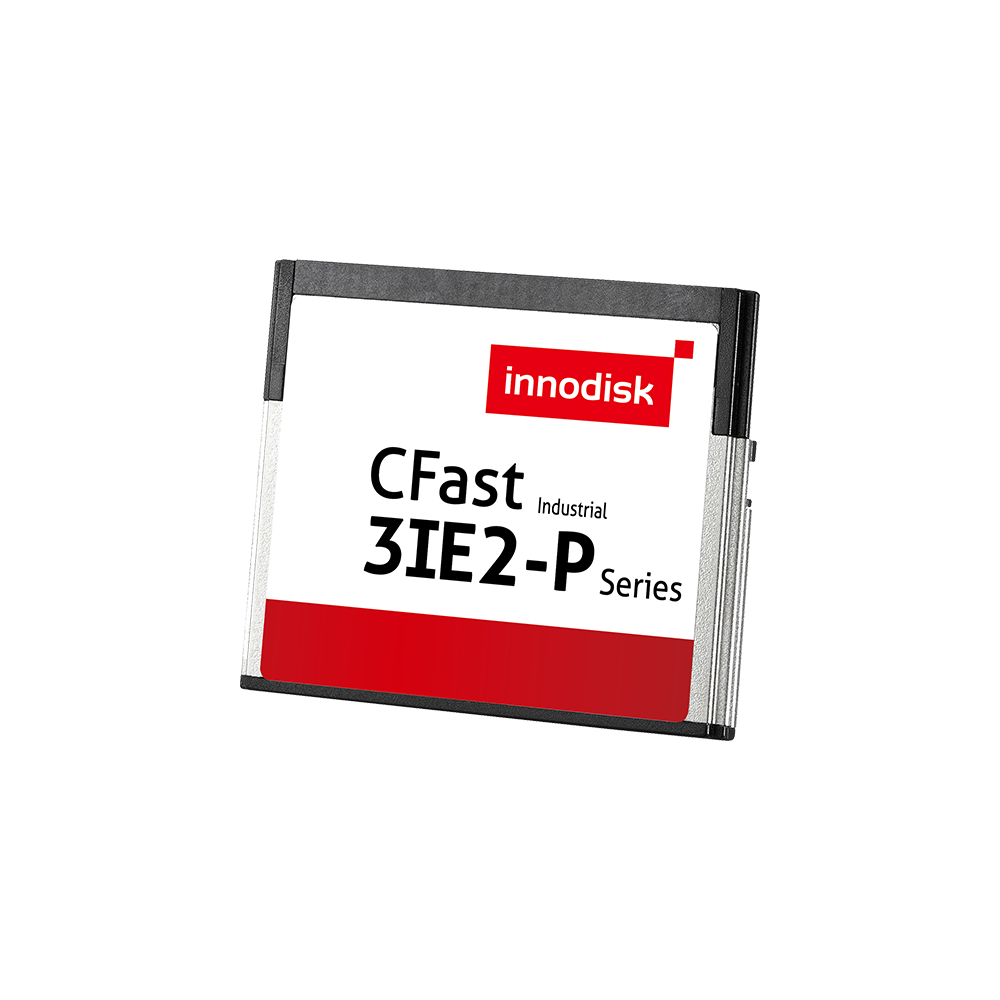

CFast 3IE2-P

CFast

16GB ~ 128GB

Features

High sequential / IOPS performance
Intelligent error recovery system
iSMART for disk health monitoring
iData Guard for abnormal power failure
Supports TRIM / NCQ / S.M.A.R.T.
Supports iSLC technology
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk CFast 3IE2-P is iSLC series which is designed to outdo the endurance, performance and reliability of MLC-based solutions. Through the use of Flash management algorithms, iSLC improves SSD endurance up to 20,000 times, increasing lifespans up to 7 times longer than MLC-based solutions. In addition, iSLC improves the performance of solid state drives, with similar write performance of SLC-based solutions. Innodisk iSLC series is cost efficient, boasting excellent benefits at only half the price of SLC-based solutions.

Innodisk CFast 3IE2-P is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

Innodisk CFast 3IE2-P is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

SPECIFICATIONS

Model Name	CFast 3IE2-P
Flash Type	iSLC (MLC)
Interface	SATA III 6.0 Gb/s
Form Factor	CFast 2.0
Capacity	16GB ~ 128GB
Sequential R / W (MB/sec, max.)	550 / 460
P/E Cycle	20,000
TBW (Max.)	1,250
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.1W
Max. Channels	4
External DRAM Buffer	Y
Feature	AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
16GB	DHCFA-16GD81BCADC(W)	DHCFA-16GD81BWADC(W)
32GB	DHCFA-32GD81BCAQC(W)	DHCFA-32GD81BWAQC(W)
64GB	DHCFA-64GD81BCAQC(W)	DHCFA-64GD81BWAQC(W)
128GB	DHCFA-A28D81BCAQC(W)	DHCFA-A28D81BWAQC(W)

(W) : H/W write protect function (Optional)

For more information, please contact our support.
