ARK-2000 series

ARK-2000 series is an industrial modular embedded computer with rich I/O, high flexibility and easy PCIe expansion capabilities, featuring wide-input power ranges, wide temperature ranges and structural strengthening.

ARK-2232L Intel® Atom® E3940 SoC Modular Fanless Box PC

• Intel Atom E3940 Quad Core Soc
• Dual independent displays with one 4K HDMI and one VGA
• 12V lockable DC jack power input
• 9-36V power module compatible with all-in-one ordering
• -20 ~ 60 °C extend temperature operating
• Mini PCIe expansion with SIM holder for communication module
• M.2 NGFF 2230 E Key for Wifi communication module
• mSATA and 1 x 2.5" SATA storage device
• Advantech iDoor module compatible
• Advantech EMIO miniPCIe module compatible with all-in-one ordering
• Advantech MIOe module compatible with all in one ordering (2 Layers)

More

ARK-2250L Intel 6th Generation Core™ i3/i5/i7 Modular Fanless Box PC

• Intel 6th Gen Intel® Core™ U-series (i3/i5/i7)
• VGA and HDMI dual display, option 3rd display for triple display
• 12V lockable DC jack power input
• 9-36V power module compatible with all-in-one ordering
• -20 ~ 60 °C extend temperature operating
• 2 x full size mPCIe expansion for WIFI/Cellular communication module
• 1 x full size mSATA and 1 x 2.5" SATA storage device
• Advantech iDoor module compatible
• Advantech ARK Plus module support by dual layer configurations

More

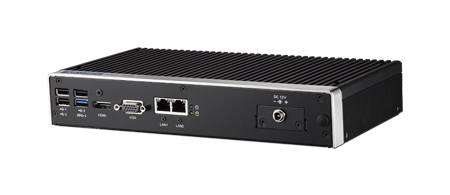

ARK-2230L Intel® Celeron® Quad Core J1900 SoC Modular Fanless Box PC

• Intel® Celeron® J1900 Quad Core 2.0 GHz SoC
• VGA and HDMI dual independent display
• 12V lockable DC jack power input
• 9-36V power module compatible with all-in-one ordering
• -20 ~ 60 °C extend temperature operating
• Mini PCIe expansion with SIM holder for communication module
• mSATA and 1 x 2.5" SATA storage device
• Advantech iDoor module compatible
• Advantech EMIO miniPCIe module compatible with all-in-one ordering
• Advantech MIOe module compatible with all in one ordering (2 Layers)

More

ARK-2121L Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC

• Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
• VGA and HDMI dual independent display
• 9 ~ 36 VDC wide range power input
• -20 ~ 70° C extend temperature operating
• Mini PCIe expansion with SIM holder for communication module
• mSATA and 1 x 2.5" SATA storage device
• Advantech iDoor module compatible
• Advantech EMIO miniPCIe module compatible with all-in-one ordering

More

ARK-2121F Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC

• Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
• VGA and HDMI dual independent display
• 6 x COM, 6 x USB, isolated DIO
• 9 ~ 36 VDC wide range power input
• -20 ~ 70° C extend temperature operating
• Mini PCIe expansion with SIM holder for communication module
• mSATA and 1 x 2.5" SATA storage device
• Optional DVI/2nd HDMI/4x GbE by project support
• Internal USB for security dongle

More

ARK-2120L Intel® Atom™ Dual Core N2600/D2550 with Multiple I/Os Fanless Box PC

• Intel® Atom™ Dual Core N2600 1.6 GHz/D2550 1.86 GHz, DDR3 memory supports up to 4 GB
• VGA and HDMI dual independent display, supports DirectX 9
• Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN
• Supports up to 2 Intel GbE, 6 x USB 2.0 and 4 x COMs ports
• Supports external CFast socket and 1 x 2.5" SATA HDD Bay
• Lockable DC jack design
• Supports iManager, SUSIAccess and Embedded Software APIs
• Phase out, last order date: March 31, 2018

More

ARK-2150F 3rd Generation Intel® Core™ i7 with 4 x GbE, Isolated DIO & wide range power Fanless Box PC

• Intel® Core™ i7 processors + Intel QM77 PCH
• 1 x DDR3/DDR3L SO-DIMM, support up to 8 GB
• DirectX11, OpenGL3.1, OpenCL1.1
• Supports Intel AMT8.0
• Supports 4 x Intel GbE
• Support 4ch digital input and 4ch digital output with 2.5KV isolation
• Supports 3 x USB 3.0, 3 x USB 2.0, 4 COMs ports
• Supports 1 x internal mSATA socket and 1 x 2.5" SATA HDD Bay
• 12~24V wide range DC input with lockable connector
• Supports iManager, SUSIAccess and Embedded Software APIs

More

ARK-2150L 3rd Generation Intel® Core™ i3/i7 with Dual Independent Display Fanless Box PC

• Intel® Core i7, i3 and Celeron processors + Intel QM77 PCH
• 1 x DDR3/DDR3L, SO-DIMM support up to 8 GB
• DirectX11, OpenGL3.1, OpenCL1.1, dual independent display: VGA + HDMI/ DisplayPort*
• Supports Intel AMT8.0
• Supports up to 2 x GbE, 2 x USB 3.0, 4 x USB 2.0 and 4 x COMs ports
• Supports 1 x internal mSATA socket and 1 x 2.5" SATA HDD Bay
• Lockable DC jack design
• Supports iManager, SUSIAccess and Embedded Software APIs

More
