![]() | ADDERView® DDX10 Flexible 10-port KVM matrix switch for DVI/DisplayPort/VGA, USB and audio. Combined with the DDX CAM and DDX USR, the DDX10 forms the basis a KVM Matrix datasheet |

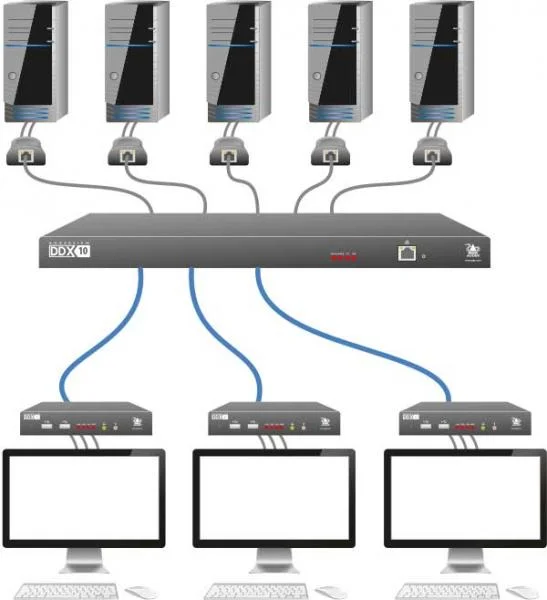

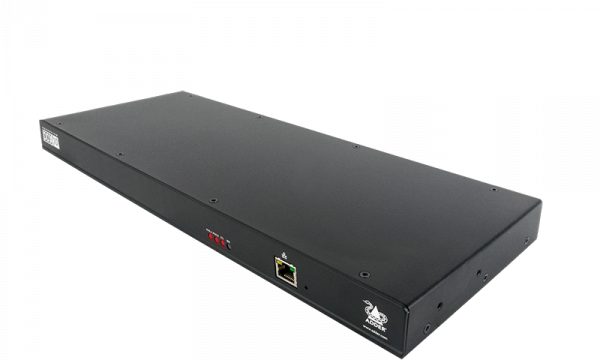

The ADDERView® DDX10 is a high performance KVM Switch that provides powerful functionality inside a small, compact form factor. Featuring Adder’s trusted lossless KVM extension technology with flexi-port switching capability, the DDX10 enables multiple users to access multiple computers located safely and securely inside your server room. Combined with the DDX CAM and DDX USR, the DDX10 forms an integral part of a KVM Matrix. It is also available with 30 ports.
| ![]() |
Approvals / Compliance
Standards
Resolutions of up to 1920x1200 @60Hz
Cable Requirements
A minimum specification of Shielded Twisted Pair (STP) cables must be used with the DDX30, DDX10, DDX CAM and DDX USR. Recommended cables are SFTP:
Res (@60Hz) | Cable | Patches | Distance |
1920 x 1200 | SFTP | 0 | 50m |
1920 x 1200 | SFTP | 2 | 40m |
Notes:
Unshielded cables are not suitable for the DDX. Distances are achieved using single lengths of SFTP trunk/bulk cable with two 3m SFTP patch cables. For each additional break/patch connection reduce distance by 5m. Patch cables must be SFTP.
Environmental
0 to 40ºC / 32 to 104ºF
Connectors – Peripherals
1 x 8p8c for 10/100/1000 Ethernet connection. 1 x 9way D-type RS232 options port.
Connectors – Systems
10 x 8p8c ports for computer or user connections (7 front panel ports are dedicated for users).
Maximum of 9 computer connections, minimum of 1 computer.
Maximum of 9 user connections, minimum of 1 user.
Mechanical
Compact case, robust metal construction. Designed for 19 inch rack mounting:
435mm/17.13” (w), 31mm/1.22” (h), 160mm/6.3” (d), 1.9kg/4.2lbs. Rack mount included.
Power
2 x locking, 3-pin jack (1 x power adapter included), 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter.
