ADDERView® CCS-MV 4224 Multi-Viewer Command and control multi-viewer switch for sharing 4K video, keyboard and mouse, plus audio between four computers. Innovative hybrid DisplayPort™ and HDMI® input ports for flexible connectivity from a single unit. datasheet

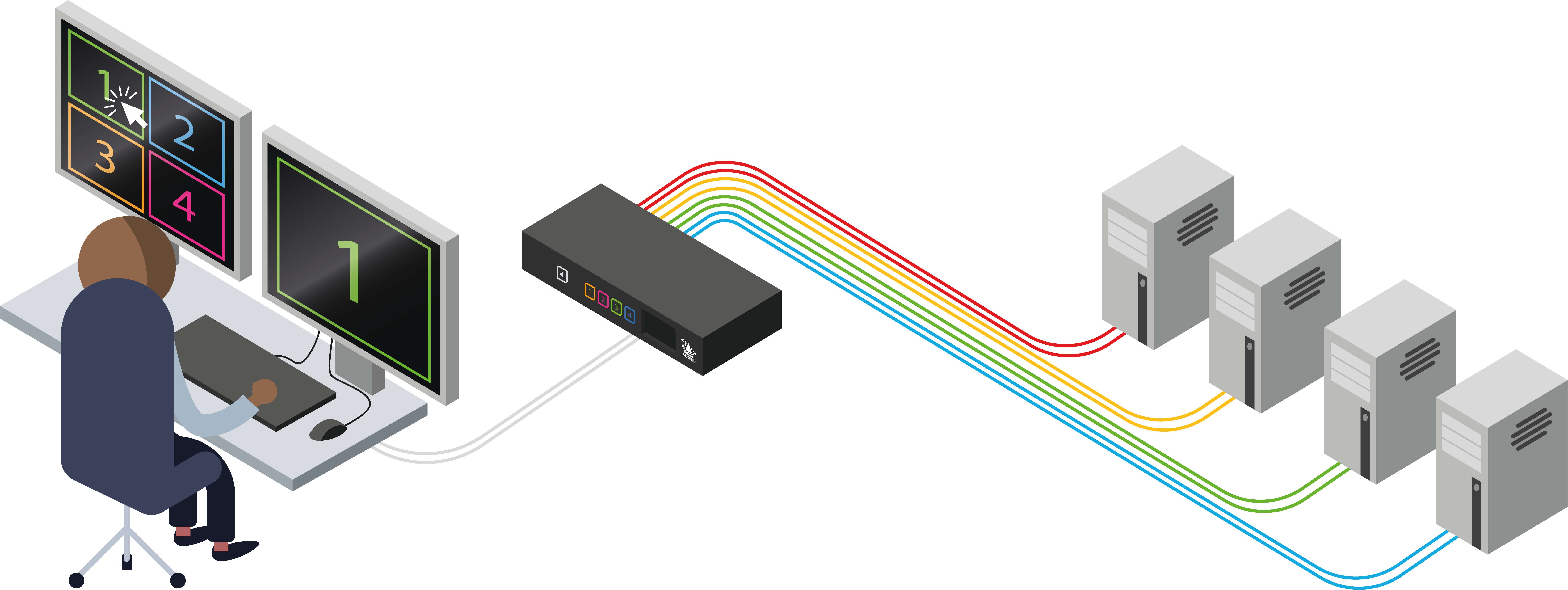

The ADDERView® CCS-MV, a desktop multi-viewer switch, provides simultaneous, real-time 4K KVMA (Keyboard, Video, Mouse and Audio) access of up to four computers from a single workstation. Users can instantly take control of the target computer by simply moving the mouse between windows, providing the experience of a single desktop. Directly connect a single workstation to four video, audio and USB sources Access any number of sources on a network when combined with an ADDERLink® INFINITY IP KVM Matrix Seamless cursor interaction with sources as if using a single desktop Multiple, color-coded screen configurations for fast channel identification, real-time data visualization and improved decision making Enhanced, decluttered workspace ergonomics and improved situational awareness

Product Features

• Video performance
  Up to UHD 4K video output resolution is generated, thus providing a crystal clear display, even with a quad window layout.

• Automatic switching
  Natural automatic switching of KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.

• Flexible screen layout
  Use preset window layouts, or move and resize windows to create custom layouts. Dual output ports allow for extended or duplicated displays.

• Channel identification
  Reduce the chances of operator error by displaying a meaningful name for each channel. The port LED and window border colors may also be configured.

• USB performance
  Emulated USB2.0 ports for fast switching of HID (Human Interface Devices), such as keyboard and mouse. Hi-speed USB3.0 switched port for mass storage and isochronous devices, including flash drives, headsets and web cams.

• Flexible computer connections
  Connect to a combination of single and dual-head computers.

• Analog audio
  Bi-directional analog audio. An audio ‘Hold’ facility assigns the audio connection to a specific computer whilst the KVM is switched to another computer. Useful when a user needs to talk to one channel, whilst working on another.

• Digital audio mixer
  Option to combine audio signal from multiple HDMI® channels. Adjust the volume level for each channel.

• Copy & Paste
  Copy text between Windows 10 computers using standard keyboard, Ctrl+C and Ctrl+V commands.

• Remote control
  Select layout presets and input channels remotely for control room applications where the displays are used to aid situation awareness.

• Matrix integration
  The ADDERView^® CCS-MV 4224 may be connected to the ADDERLink^® INFINITY matrix system. This allows the user to control any 4 computers connected to the matrix network.

Specification

Approvals / Compliance

• UKCA, CE, FCC class A, TUV US & Canada

Video Resolutions

• The system supports video resolutions up to UHD 4K (3840 x 2160 @ 30Hz) at 4:4:4 with 8 bits per color

Software Compatibility

• Windows^®, Linux^®, Mac host computer OS’s

Console Connections

• 2x digital ports for HDMI^®
• 2x USB 2.0 full speed Type A
• 4x USB3.0 Hi-speed Type A
• Audio 3.5mm/0.13” jack for microphone and headphones
• RJ12 serial port

Computer Connections

• 4x dual ports for DisplayPort™/HDMI^®
• 4x USB2.0 full speed Type B
• 4x USB 3.0 Hi-speed Type B
• Audio 3.5mm line in and out

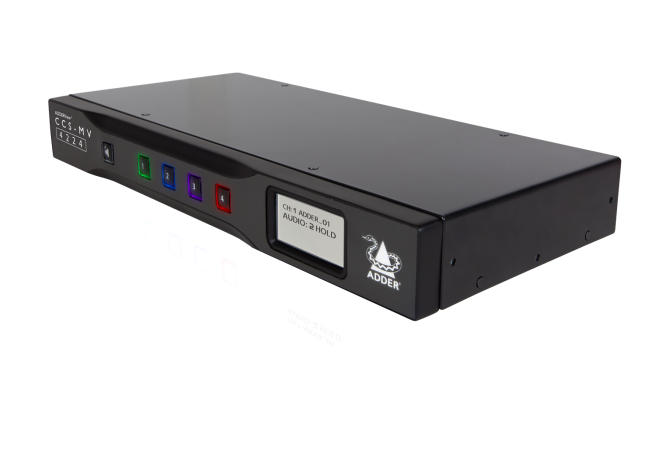

Front Panel

• Audio hold button and status LED
• 4x Channel selection button and status LED
• 212 x 104 E-paper status display

Physical Design

• Robust metal construction
• 344mm/13.54”(W) x 44mm/1.73”(H) x 161mm/6.34”(D)
• Weight: 1.6kg/3.53lbs

Power Supply

• 100 - 240V AC, 47/63Hz
• 12V DC 30W output from power supply unit

Environmental

• Operating temperature: 0ºC to 40ºC/ 32ºF to 104ºF
• Storage temperature: -20º to 60ºC/ -4º to 140ºF
• Humidity: 0-80% RH, non-condensing
• MTBF: 84k hours @ 40ºC
