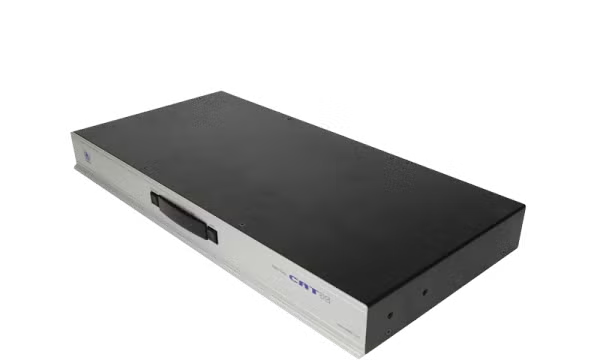

 | ADDERView® CATx 4000 ADDERView CATx 4000 KVM switch grants 4 simultaneous users access to control up to 24 computers over CATx cabling within a secure and small form factor |
The ADDERView CATx Series is a range of secure, KVM via CATx switches that provide 4 concurrent local, remote or global users with BIOS-level control of up to 24 multiplatform servers. A ‘plug-and-play’, 1U appliance, the ADDERView CATx is a completely self-contained system that installs in minutes combining high security, flexibility, integrated remote power control, faultless quality video and optional CD quality audio. The ADDERView CATx supports 16 or 24 CATx computer connections, 4 simultaneous users (1x local PS/2 or USB, 4 x remote over CATx). |  |
Faultless video quality: The ADDERView CATx series provides exceptionally high video performance to local, remote and global users alike, supporting up to 1900x1440 resolutions with DDC emulation.
True multi-platform support: The ADDERView CATx series supports PS/2, USB and Sun. Country code reporting, DDC and keyboard and mouse emulation ensure faultless operation.
PS/2 or USB keyboard and mouse control: Any PS/2 or USB style keyboard and mouse may be used to control the ADDERView CATx series.
Easy cascade: Expand using CATx cascade connections with simple user intuitive set up.
Optional CD quality audio: The ADDERView CATx switches provide CD quality audio to users when optional audio enabled CAM modules are used.
Power control: Providing complete reboot function, the ADDERView CATx series interfaces with power switches via a dedicated RS232 port.
Local User: Choice of PS/2 or USB keyboard and mouse control.
Remote User: Up to 300m from computer using Adder extenders.
Computer Access Modules: Flash upgradeable CAMs available for PS/2, USB and Sun keyboard and mouse support with optional audio.
Operating Systems and Software compatibility Software: All commonly known software and operating systems including Windows®, Linux®, macOS®, and Sun OS.
Computer and remote CATx user connections: All RJ45 style
Local KVM console connection
Video: HDD15 / VGA.
Keyboard/Mouse: MiniDin6 / USB type A.
Audio: 3.5mm stereo jack
Network port (ADDERView IP models only): RJ45 10/100Mb auto-sensing Ethernet port
Physical design: ADDERView CATx: 1U high metal case
482mm/19” (w),
215mm/8.5” (d),
45mm/1.8” (h)
Single rack kit included
Power connection: IEC style power lead (100 – 240V AC, 50-60Hz). Redundant via 2.5mm DC jack (5V DC, 4A)
Other connectors
DB9 female for flash upgrade, syncing
boxes and other special functions.
DB9 male for RS232 triggered power
switches.
Operating temperature: 0ºC to 40ºC / 32ºF to 104ºF
Approvals: CE, FCC, UKCA
