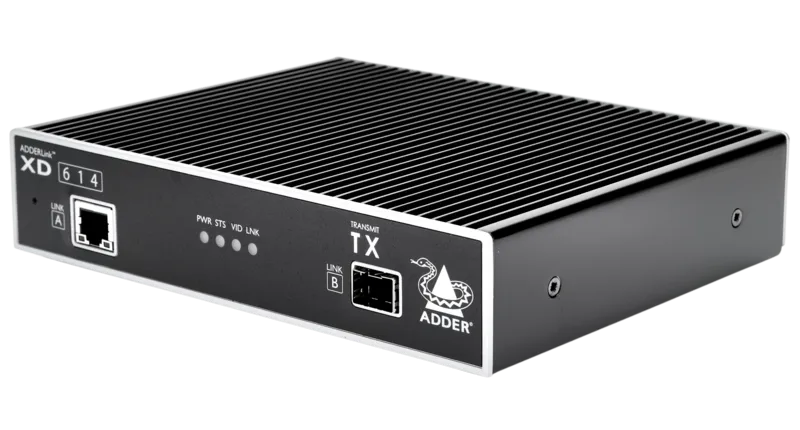

ADDERLink® XD614

A high-resolution, quad-head KVM extender. High-definition video, USB 2.0 and audio are transmitted on a single CATx or fiber cable.

High performance KVMA extender that is designed to provide reliable and real-time access to critical computers - regardless of the location, while maintaining the same user desktop user experience.

Datasheet

Audio

Video: Encapsulates two channels of 24-bit, 192kHz sampled PCM audio with the video signal. USB: Two
channels of 24-bit, 96kHz sampled PCM audio. Analog: Two channels of 24-bit, 96kHz audio for Line in/out, microphone and headphone/speakers.

Emulated USB 2.0

Ensures reliable computer bootup and connection with any full and low speed USB HID from mouse and keyboards through to graphics tablets and jog shuttles.

Local Pass-Through

A local pass-through port at the transmitter (TX) outputs the
first video head within the MST signal.

EDID Management

The system had intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Serial Communications

RS232 can be passed between the units to a maximum
baud rate 115K2 with RTS/CTS flow control.

Latency

Point-to-point protocol for ultra-low latency.
