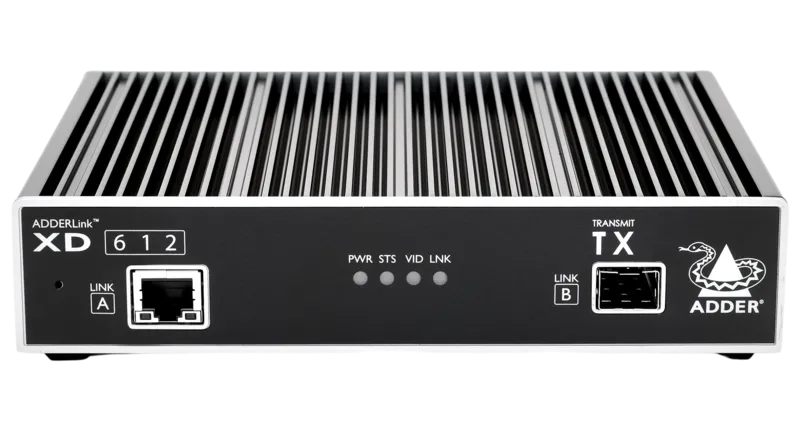

ADDERLink® XD612

A high-resolution single or dual-head KVM extender. High-definition video, USB 2.0 and audio are transmitted on a single CATx or fiber cable.

High performance KVMA extender that is designed to provide reliable and real-time access to critical computers - regardless of the location, while maintaining the same user desktop user experience.

Datasheet

Extension distances

The ADDERLink XD612 (XD612) supports both copper and fiber interfaces. It provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link.

Audio

Video: Encapsulates two channels of 24-bit, 192kHz sampled PCM audio with the video signal. USB: Two channels of 24-bit, 96kHz sampled PCM audio. Analog: Two channels of 24-bit, 96kHz audio for Line in/out, microphone and headphone/speakers.

EDID management

The system had intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Serial communications

RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.
