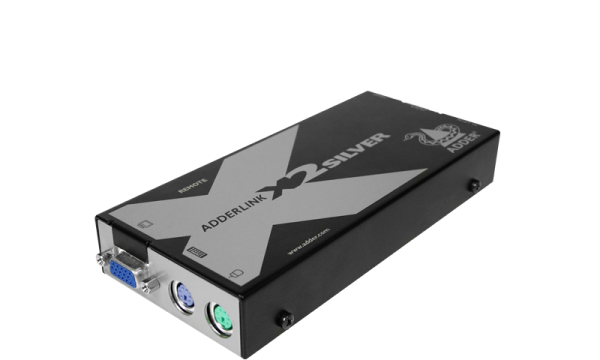

ADDERLink X2-Silver & X2-Silver DA Keyboard, video, mouse and RS232 extender giving sharp, bright and ultra high-resolution video images at distances up to 200m (650ft) datasheet

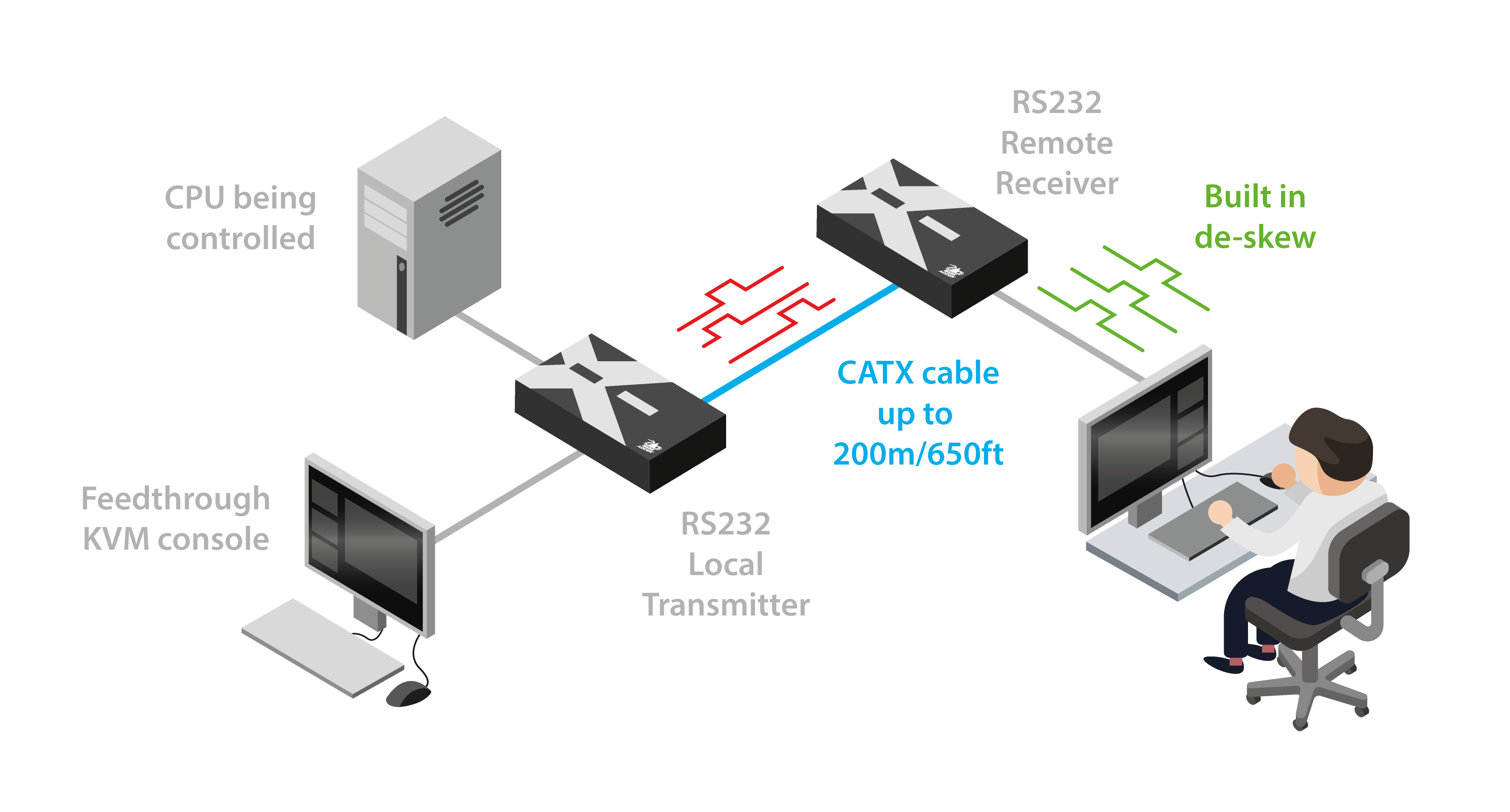

The ADDERLink X2-Silver, (part of the ADDERLink X Series range), extends very high quality video, keyboard, mouse and transparent, high speed RS232 up to 200m (650ft) over Category 5 or higher UTP cable. The ADDERLink X2-Silver has been designed to provide industry-leading video clarity, compatibility and high rack densities. Dual access versions provide local KVM access at the computer for local as well as remote control.

Product Features

Video performance

Industry leading resolutions of 1600x1200 are achievable at 200m (650ft).

Video compensation

The ADDERLink X2 applies a high level of signal compensation that allows for a greatly increased range of very smooth and fine adjustments.

Emulated DDC

Unless an extender actively supports DDC some well-known high performance video cards cannot be used at high resolutions. The ADDERLink X2 fully supports DDC.

Rack options

Both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis.

Integrated DeSkew

The ADDERLink X2-Silver has integrated skew correction with a 300MHz bandwidth, meaning that it is more than powerful enough to counteract the negative effects of the skew.

Specification

Video resolutions

1600x1200 at distances up to 200m (650ft)

Extension distance

Up to 200 metres/650ft using CATx cable (x=5,5e,6,7)

Devices supported

Supports PS/2 style keyboard, PS/2 style mouse, flat-screen and CRT style monitors with standard HD-15 video connectors. Transparent RS232 connection.

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (Local computer-end unit)

Computer connection: 1 x 25-way female connector (cable supplied)

Local console connection (DA only)

video HDD15, keyboard/mouse: MiniDin6.
CATx: 1 x RJ45 connector. Serial: DB9.
Optional power: 2.5mm DC jack

Connectors (Remote console-end unit)

Video: HDD15. Keyboard/Mouse: MiniDin6.
CATx: 1 x RJ45 connector. Serial: DB9.
Power: 2.5mm DC jack

Physical (Tx and Rx units)

172mm x 26mm x 75mm, 430g, fits into one slot width in the X-Series rack mount chassis (16 units fit into 2U of rack space)

Power supply

100-240VAC, 50-60Hz

Operating temperature

0 - 40 deg C (32 to 104 deg F)

Approvals

CE, FCC
