2U Rack Server

www.alvasta-tech.com / Industrial / Winmate / Embedded Computing/Intelligent Radio Gateway / Rack Server / 2U Rack Server /

2U Rack Server

OVERVIEW

Winmate 2U Rack Servers are designed for server room applications and can be mounted inside a 19" server rack. Support Intel Pro remote management.

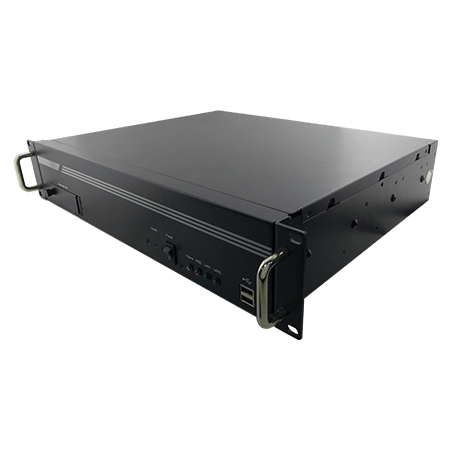

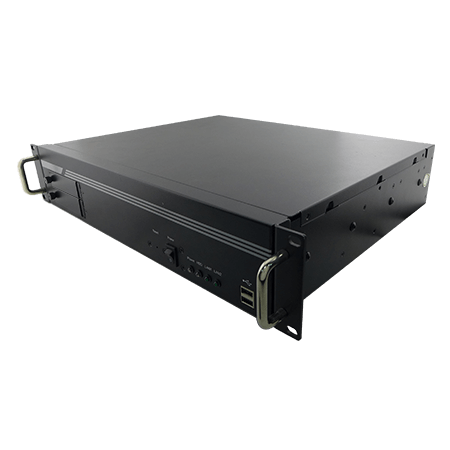

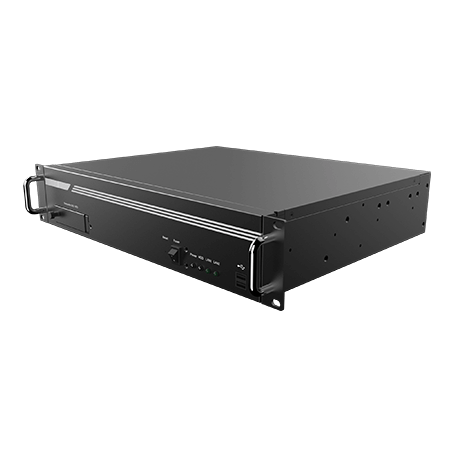

OMIVEAC-IK7T Intel® Core™ i7-7700T 2U Rack Server FEATURES Fanless, custom cooling system for i7 Server PC IEC 618503, IEC60068264, IEC 6006822 certificated Intel® Core™ i7-7700T 2.9GHz Processor (Turbo max to 3.8GHz) Support Intel vPro, AMT 11 remote management Support TPM 2.0 Function Two front 2.5” SATAIII disk drive for RAID 0/1 support Learn more...	IH7T-RK2U Intel® Core™ i7-4700MQ 2U Rack Server FEATURES i7-4700MQ 2.4GHz Processor. Turbo max to 3.4GHz 2U Rack Server Support Intel vPro, AMT 9.0 remote management Support TPM 1.2 Function (Optional For TPM 2.0) Two front 2.5” SATAIII disk drive for RAID 0/1 support Support 4 ports DI&DO for Hardware On/Off switch to active Alarm, lamp......and so on Optional For Redundant Power Supply (By request) Fanless, custom cooling system for i7 Server PC IEC 61850-3, IEC60068-2-64, IEC 60068-2-2 compliant Learn more...	IV7T-RK2U Intel® Core™ i7-3520M 2U rackmount servers FEATURES IEC 61850-3, IEC60068-2-64, IEC 60068-2-2 certified, rackmount servers Intel® Core™ i7-3520M 2.6GHz Processor,Turbo Max to 3.6 GHz 4GB DDR3 1333/1600 SO-DIMM RAM 3 x Serial Port(1x RS222/RS422/RS485 select by jumper) 2 x Giga LAN, 6x USB, Line in, Line out, Mic in, PS/2 for Keyboard& Mouse Support TPM 1.2 Support Dual 2.5” SATA SSD Mounting in 19” rack with 2U height Fanless cooling i7 Server PC Learn more...

IV7W-RK2U Intel® Core™ i7-3520M 2U Rack Server FEATURES IEC 61850-3, IEC60068-2-64, IEC 60068-2-2 certified Intel® Core™ i7-3520M 2.6GHz Processor,Turbo Max to 3.6 GHz 4GB DDR3 1333/1600 SO-DIMM RAM 3 x Serial Port(1x RS222/RS422/RS485 select by jumper) 2 x Giga LAN, 6x USB, Line in, Line out, Mic in, PS/2 for Keyboard& Mouse Support TPM 1.2 , 2U Rack Server Support Dual 128GB SATA SSD (Up to 512GB) Mounting in 19” rack with 2U height Fanless cooling i7 Server PC Learn more...	IK7T-RK2U Intel® Core™ i7-7700T 2U Rack Server FEATURES Intel® Core™ i7-7700T 2.9GHz Processor (Turbo max to 3.8GHz) 2U Rack Server Support Intel vPro, AMT 11 remote management Support TPM 2.0 Function Two front 2.5” SATAIII disk drive for RAID 0/1 support Fanless, custom cooling system for i7 Server PC IEC 61850-3, IEC60068-2-64, IEC 60068-2-2 compliant Learn more...

2U Rack Server

OMIVEAC-IK7T

IH7T-RK2U

IV7T-RK2U

IV7W-RK2U

IK7T-RK2U
