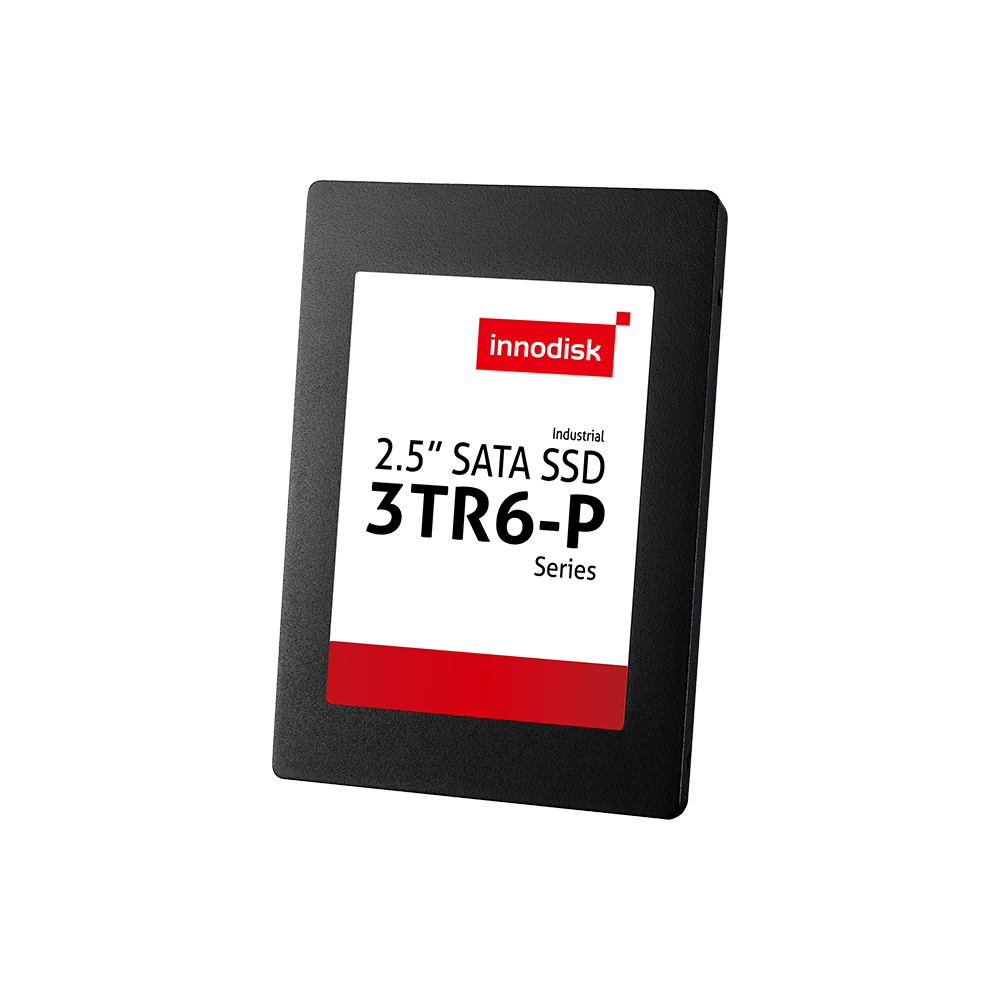

2.5” SATA SSD 3TR6-P

2.5" SSD

128GB ~ 2TB

Features

2.5’’ SATA III solution for industrial field
AES-256 encryption
End-to-End Data Path Protection
iData Guard for abnormal power failure
PLP (iCell) technology for data protection
iPower Guard for protecting unstable start up and shut down
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3TR6-P is the newest member of InnoRobust product line, which adopts industrial 3D TLC NAND. 3TR6-P aims to provide high performance, high capacity Flash memory Solid State Drive (SSD) that electrically complies with Serial ATA 3 (SATA3) standard and beyond. 3TR6-P models are designed with advanced firmware features such as Quick Erase, Security Erase, Destroy and AES 256 bit encryption capability.

As for hardware, 3TR6-P is equipped with iPower Guard, iCell and MIL-810G level mechanical design. 3TR6-P is developed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	2.5” SATA SSD 3TR6-P
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	128GB ~ 2TB
Sequential R / W (MB/sec, max.)	560 / 500
P/E Cycle	3,000
TBW (Max.)	4,615
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	4.2W
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Series	Mission Critical SSD
Dimension (W x L x H/mm)	69.8 x 100.0 x 6.8
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DRS25-A28M72EC1QFP	DRS25-A28M72EW1QFP
256GB	DRS25-B56M72EC1QFP	DRS25-B56M72EW1QFP
512GB	DRS25-C12M72EC1QFP	DRS25-C12M72EW1QFP
1TB	DRS25-01TM72EC1QFP	DRS25-01TM72EW1QFP
2TB	DRS25-02TM72ECAQFP	DRS25-02TM72EWAQFP
