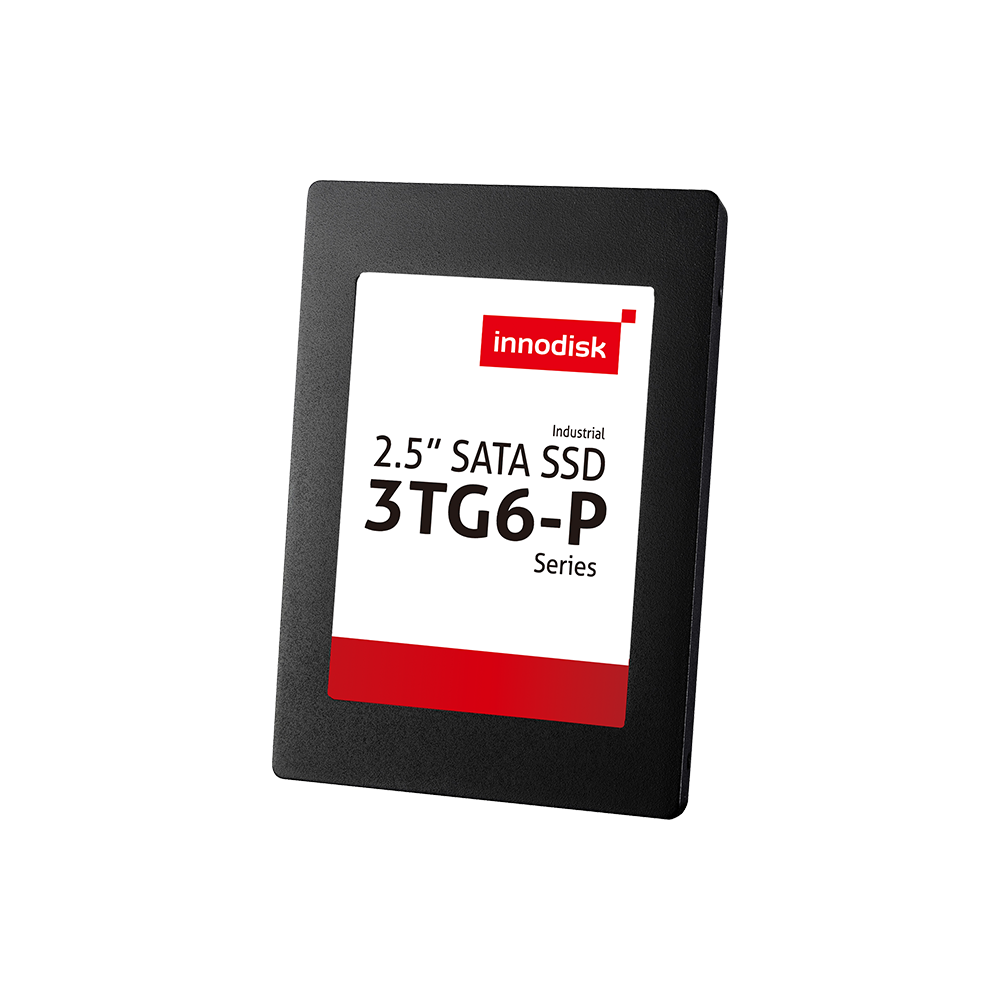

2.5” SATA SSD 3TG6-P

2.5" SSD

128GB ~ 4TB

Features

2.5” SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
AES-256 encryption
iData Guard for abnormal power failure
PLP (iCell) technology for data protection (optional)
iPower Guard for protecting unstable start up and shut down
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3TG6-P is SATA III 6Gb/s industrial solid state disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field. 3TG6-P 2.5” SSD not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	2.5” SATA SSD 3TG6-P
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	128GB ~ 4TB
Sequential R / W (MB/sec, max.)	560 / 510
P/E Cycle	3,000
TBW (Max.)	9,231
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	5.9W
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	128GB ~ 4TB, Single Board : 69.8 x 100.0 x 7.0 4TB / 8TB, Dual Board : 69.8 x 100.0 x 9.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128GB	DGS25-A28M71%C*&F(P)	DGS25-A28M71%W*&F(P)
256GB	DGS25-B56M71%C*&F(P)	DGS25-B56M71%W*&F(P)
512GB	DGS25-C12M71%C*QF(P)	DGS25-C12M71%W*QF(P)
1TB	DGS25-01TM71%C*QF(P)	DGS25-01TM71%W*QF(P)
2TB	DGS25-02TM71%CAQF(P)	DGS25-02TM71%WAQF(P)
4TB	DGS25-04TM71%CAQF(P)	DGS25-04TM71%WAQF(P)

%. E : 64 layers 3D TLC / G : 96 layers 3D TLC / K : 112 layers 3D TLC
*. 1 ~ 9 / A ~ Z : PCB version control
&. S = 1 channel / D = 2 channels / Q = 4 channels
(P). iCell (Optional)
