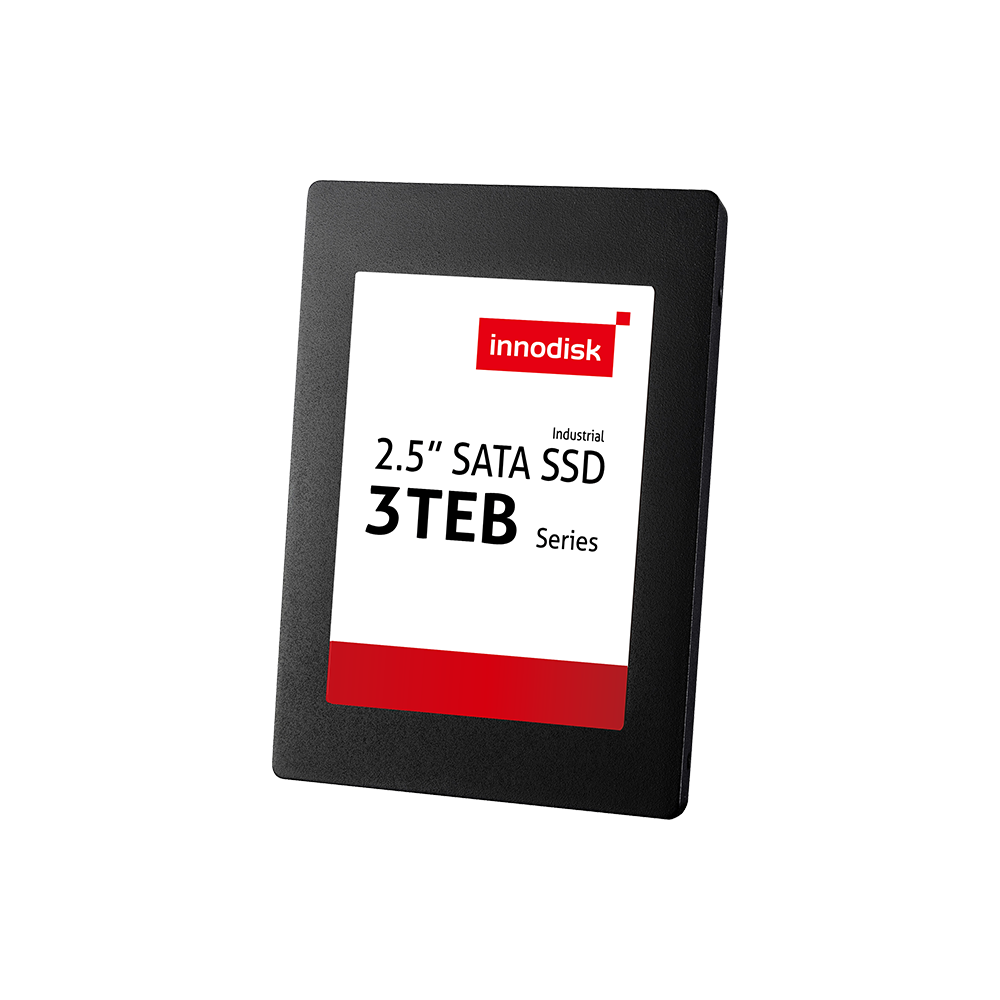

2.5” SATA SSD 3TEB

2.5" SSD

64GB ~ 1TB

Features

2.5” SATA Slim SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down.
iData Guard for abnormal power failure

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3TEB is SATA III 6.0 Gb/s Flash based disk, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TEB series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of 2.5” SATA SSD 3TEB for industrial applications. iData Guard – DATA PROTECTION TECHNOLOGY

SPECIFICATIONS

Model Name	2.5” SATA SSD 3TEB
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	64GB ~ 1TB
Sequential R / W (MB/sec, max.)	550 / 500
P/E Cycle	3,000
TBW (Max.)	1,800
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	4.4W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	69.8 x 100.0 x 7.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
64GB	DES25-64GIC1KCCSF	DES25-64GIC1KWCSF
128GB	DES25-A28IC1KCCDF	DES25-A28IC1KWCDF
256GB	DES25-B56IC1KCCDF	DES25-B56IC1KWCDF
512GB	DES25-C12IC1KCCDF	DES25-C12IC1KWCDF
1TB	DES25-01TIC1KCCDF	DES25-01TIC1KWCDF

For more information, please contact our support.
