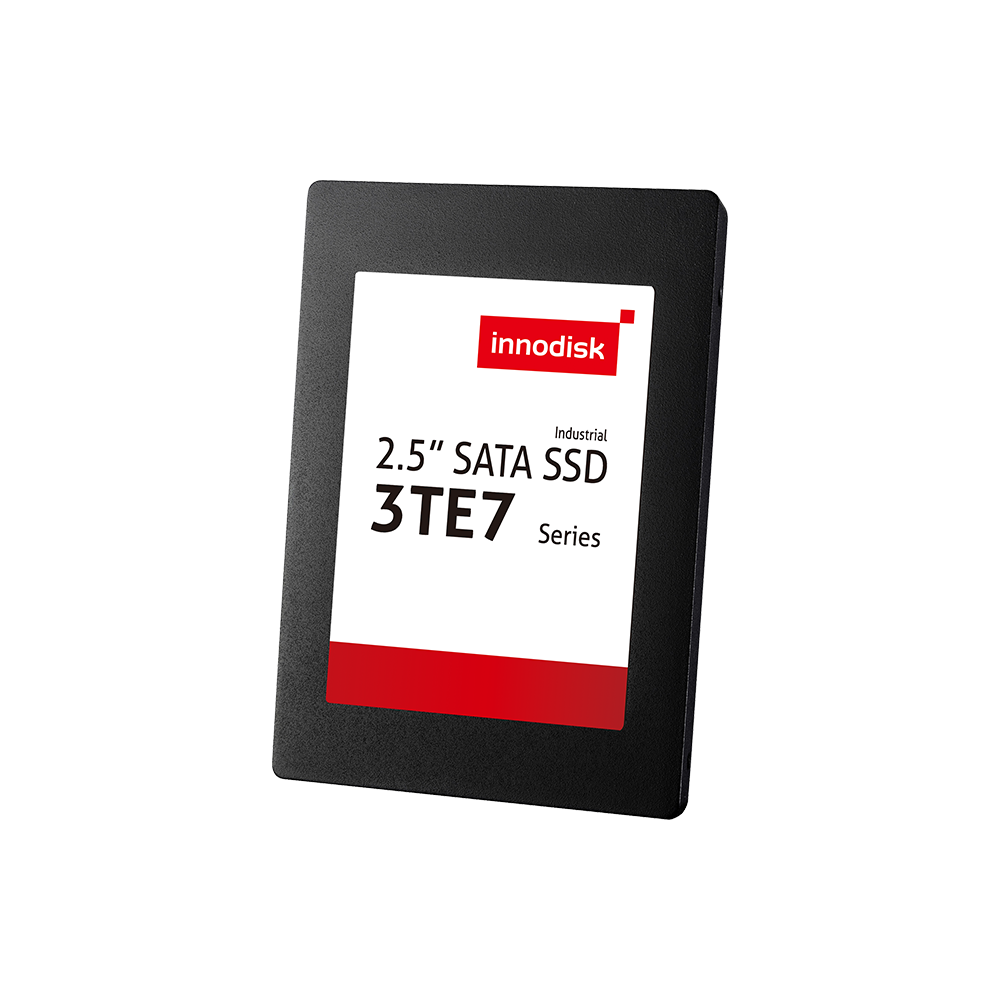

2.5” SATA SSD 3TE7

2.5" SSD

32GB ~ 2TB

Features

2.5” SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down.
iData Guard for abnormal power failure
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3TE7 is SATA III 6.0 Gb/s Flash based disk, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TE7 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening.

Built-in thermal sensor, and iData Guard ensure data integrity and reliability of 2.5” SATA SSD 3TE7 for industrial applications. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.

SPECIFICATIONS

Model Name	2.5” SATA SSD 3TE7
Flash Type	3D TLC
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	32GB ~ 2TB
Sequential R / W (MB/sec, max.)	560 / 500
P/E Cycle	3,000
TBW (Max.)	2,400
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	2.1W
Max. Channels	4
External DRAM Buffer	N
Feature	AES, S.M.A.R.T.
Dimension (W x L x H/mm)	69.8 x 100.0 x 7.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DES25-32GDK1EC3SF	DES25-32GDK1EW3SF
64GB	DES25-64GDK1%C*&F	DES25-64GDK1%W*&F
128GB	DES25-A28DK1%C*&F	DES25-A28DK1%W*&F
256GB	DES25-B56DK1%C*QF	DES25-B56DK1%W*QF
512GB	DES25-C12DK1%C*QF	DES25-C12DK1%W*QF
1TB	DES25-01TDK1%C*QF	DES25-01TDK1%W*QF
2TB	DES25-02TDK1KCCQF	DES25-02TDK1KWCQF

%. E : 64 layers 3D TLC / K : 112 layers 3D TLC
*. PCB version control
&. S : 1 channel / D : 2 channels / Q : 4 channels

For more information, please contact our support.
