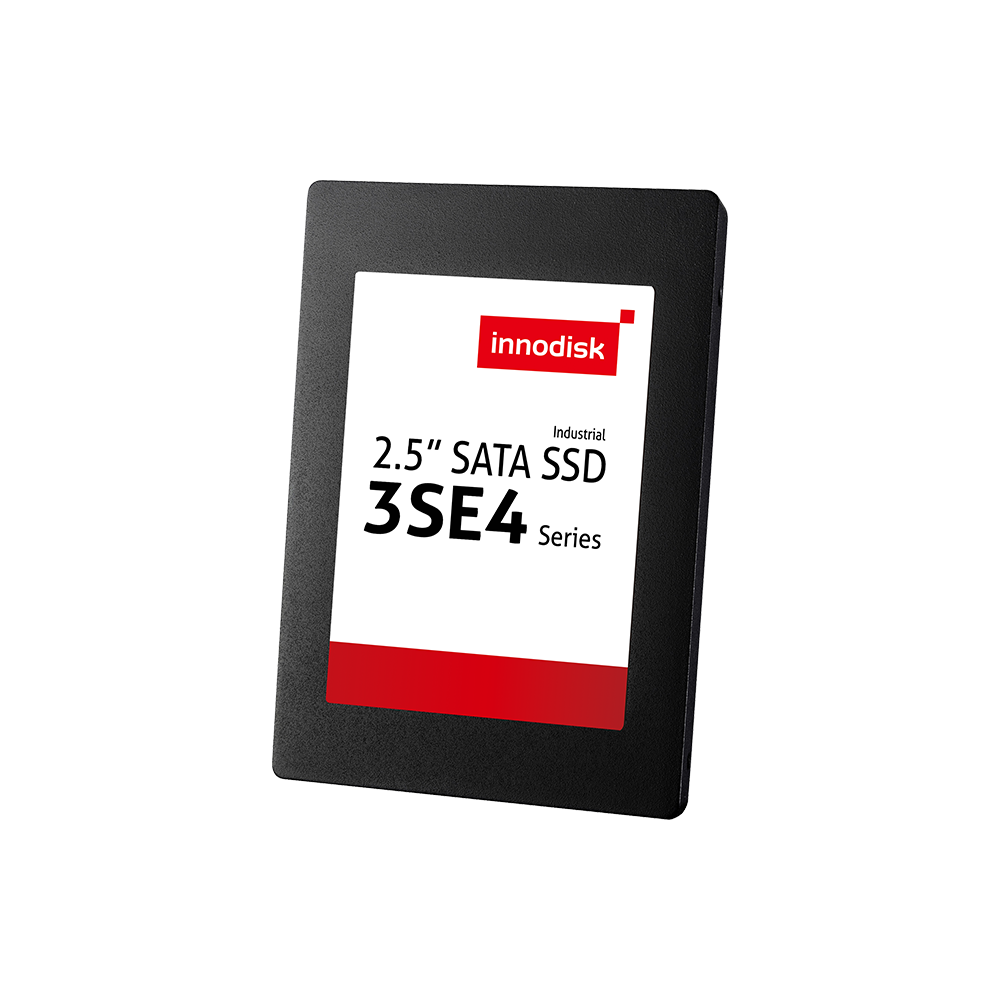

2.5” SATA SSD 3SE4

2.5" SSD

8GB ~ 64GB

Features

2.5” SATA III solution for industrial field
DRAM-less, high-level data integrity
Excellent IOPS boosts system performance
Built-in thermal sensor
Supports S.M.A.R.T, TRIM and NCQ
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3SE4 is characterized by L³ architecture with the latest SATA III (6.0GHz) controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L³ (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.

SPECIFICATIONS

Model Name	2.5” SATA SSD 3SE4
Flash Type	SLC
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	520 / 360
P/E Cycle	60,000
TBW (Max.)	2,500
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.1W
Max. Channels	2
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	69.85 x 100.1 x 6.9
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DES25-08GM41SCADB	DES25-08GM41SWADB
16GB	DES25-16GM41SCADB	DES25-16GM41SWADB
32GB	DES25-32GM41SCADB	DES25-32GM41SWADB
64GB	DES25-64GM41SCADB	DES25-64GM41SWADB

For more information, please contact our support.
