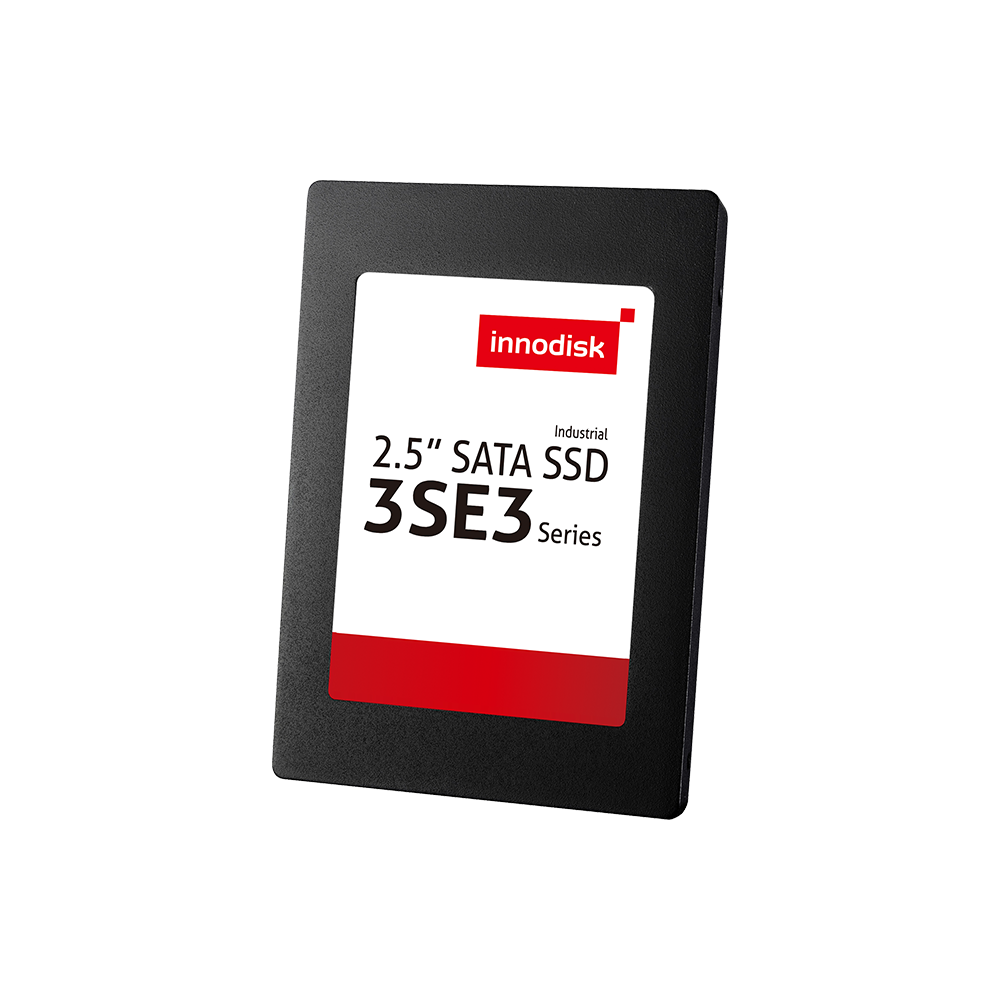

2.5” SATA SSD 3SE3

2.5" SSD

8GB ~ 128GB

Features

2.5” SATA III solution for industrial field
iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Enhanced power cycling management
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3SE3 is SATA III 6Gb/s Flash based disk, which delivers excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

2.5” SATA SSD 3SE3 not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.

SPECIFICATIONS

Model Name	2.5” SATA SSD 3SE3
Flash Type	SLC
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	360 / 210
P/E Cycle	60,000
TBW (Max.)	750
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.8W
Max. Channels	4
External DRAM Buffer	N
Feature	S.M.A.R.T.
Dimension (W x L x H/mm)	69.85 x 99.85 x 9.2
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DES25-08GD08SCAQB	DES25-08GD08SWAQB
16GB	DES25-16GD08SCAQB	DES25-16GD08SWAQB
32GB	DES25-32GD08SCAQB	DES25-32GD08SWAQB
64GB	DES25-64GD08SCAQB	DES25-64GD08SWAQB
128GB	DES25-A28D08SCAQB	DES25-A28D08SWAQB

For more information, please contact our support.
