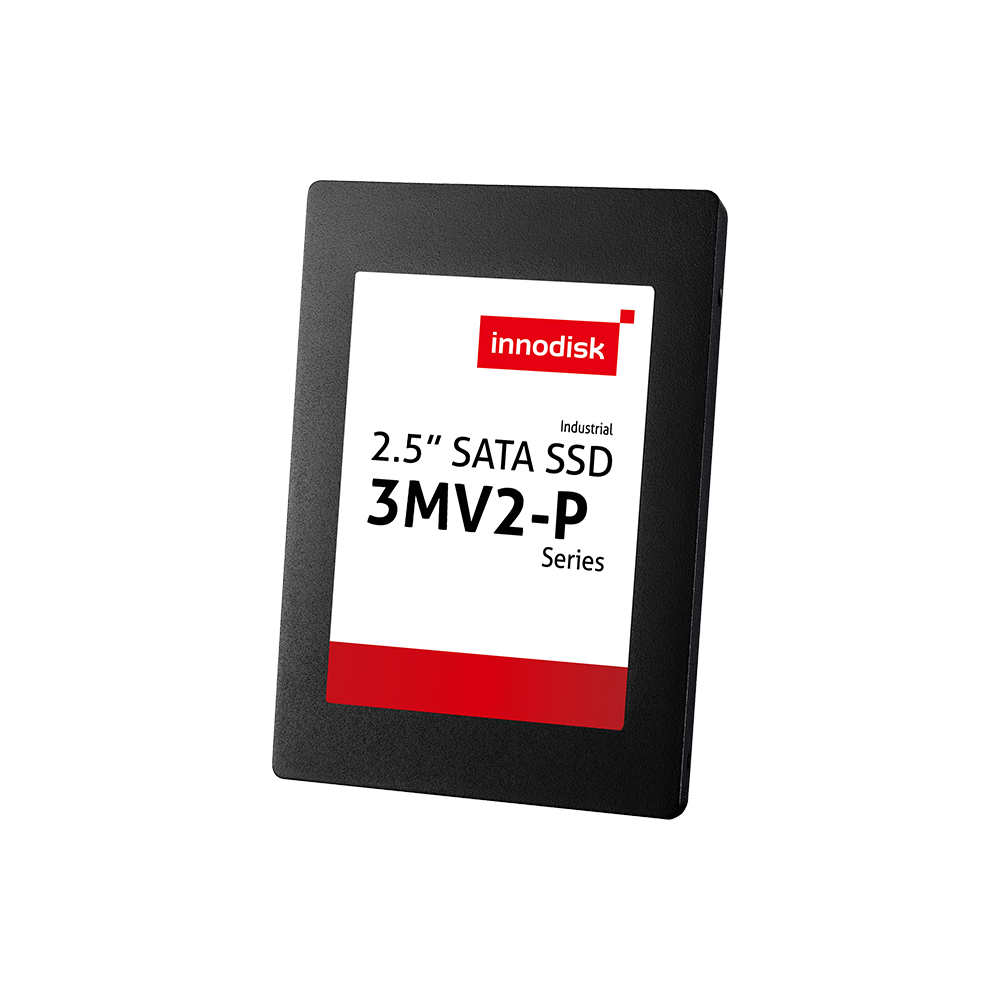

2.5” SATA SSD 3MV2-P

2.5" SSD

8GB ~ 2TB

Features

• InnoREC solution for surveillance application
• 7mm height mechanical design
• Exclusive RECLine for video recording
• Ensures steady performance without any frame-loss
• Built-in thermal sensor
• Supports S.M.A.R.T, TRIM, NCQ and iData Guard

Download Datasheet

Model Name

2.5” SATA SSD 3MV2-P

Flash Type

MLC

Interface

SATA III 6.0 Gb/s

Form Factor

2.5" SSD

Capacity

8GB ~ 2TB

Sequential R / W (MB/sec, max.)

520 / 450

P/E Cycle

3,000

TBW (Max.)

2,344

Storage Temperature

-55°C ~ 95°C

Max. Power Consumption

5.8W

Max. Channels

4

External DRAM Buffer

Y

Feature

PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T.

Series

Surveillance SSD

Dimension (W x L x H/mm)

8GB ~ 1TB : 69.85 x 100.0 x 6.9 2TB : 69.85 x 100.0 x 9.5

Vibration

20G@[7 ~ 2000Hz]

Shock

1500G@0.5ms

MTBF

>3 million hours

Warranty

3 Years
