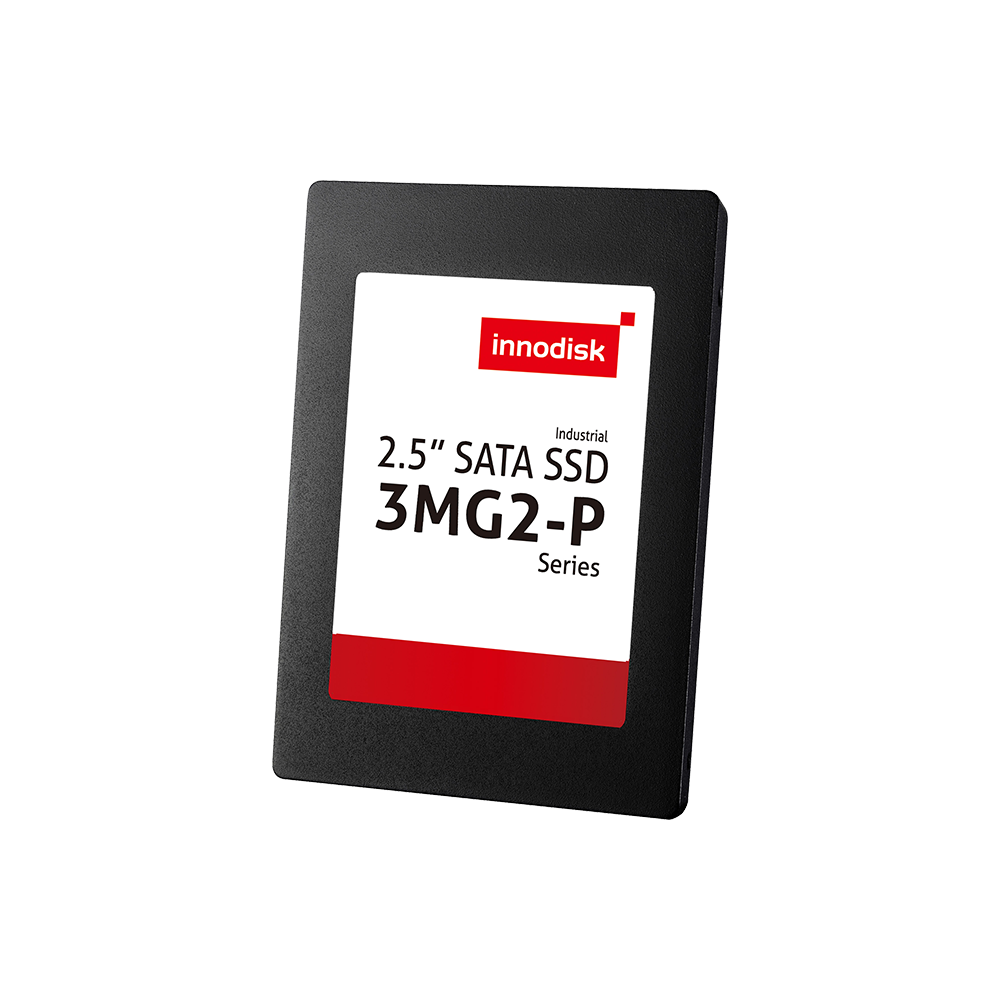

2.5” SATA SSD 3MG2-P

2.5" SSD

8GB ~ 2TB

Features

2.5” SATA III SSD solution for industrial field
High IOPS
Intelligent error recovery system
iSMART disk health monitoring
iData Guard for abnormal power failure
PLP (iCell) technology for data protection (optional)
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

Innodisk 2.5” SATA SSD 3MG2-P is SATA III 6Gb/s Flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

2.5” SATA SSD 3MG2-P not only performs unmatched performance, but also designed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability. Additionally, 2.5” SATA SSD 3MG2-P can support device sleep mode (DEVSLP) and thus be able to benefit in extreme low power consumption.

SPECIFICATIONS

Model Name	2.5” SATA SSD 3MG2-P
Flash Type	MLC
Interface	SATA III 6.0 Gb/s
Form Factor	2.5" SSD
Capacity	8GB ~ 2TB
Sequential R / W (MB/sec, max.)	520 / 450
P/E Cycle	3,000
TBW (Max.)	2,344
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	6W
Max. Channels	4
External DRAM Buffer	Y
Feature	PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T.
Dimension (W x L x H/mm)	8GB ~ 1TB : 69.85 x 100.0 x 6.9 2TB : 69.85 x 100.0 x 9.5
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DGS25-08GD81BC*SC(P)	DGS25-08GD81BW*SC(P)
16GB	DGS25-16GD81BC*&C(P)	DGS25-16GD81BW*&C(P)
32GB	DGS25-32GD81BC*&C(P)	DGS25-32GD81BW*&C(P)
64GB	DGS25-64GD81BC*QC(P)	DGS25-64GD81BW*QC(P)
128GB	DGS25-A28D81BC*QC(P)	DGS25-A28D81BW*QC(P)
256GB	DGS25-B56D81BC*QC(P)	DGS25-B56D81BW*QC(P)
512GB	DGS25-C12D81BC1QC(P)	DGS25-C12D81BW1QC(P)
1TB	DGS25-01TD81BCAQC(P)	DGS25-01TD81BWAQC(P)
2TB	DGS25-02TD81BCAQC	DGS25-02TD81BWAQC

*. PCB version control
&. S : 1 channel / D : 2 channels / Q : 4 channels
(P) : PLP (iCell) (Optional)
For TCG OPAL function, the PN Code 10th ~ 12th will be D82.

For more information, please contact our support.
